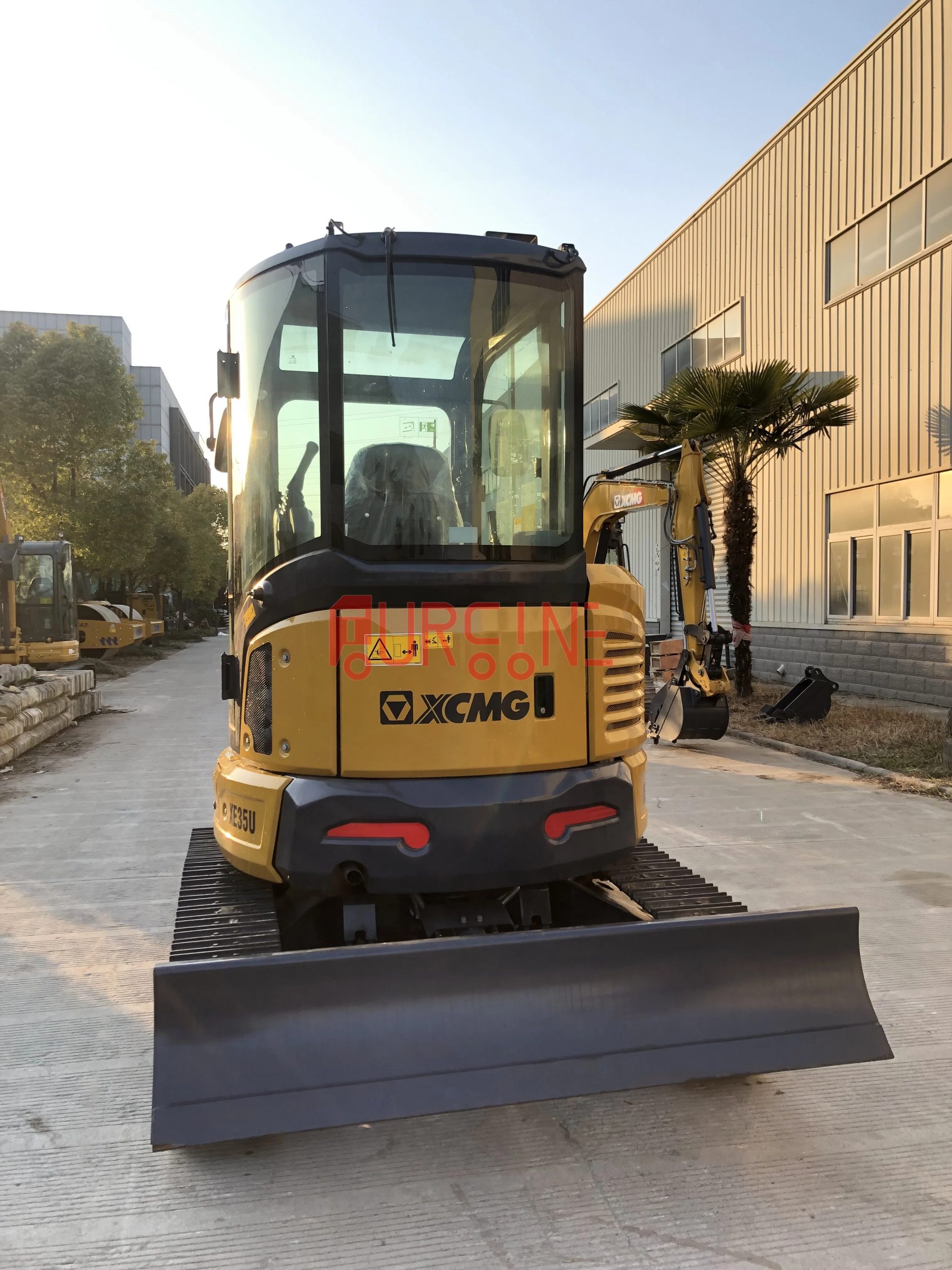

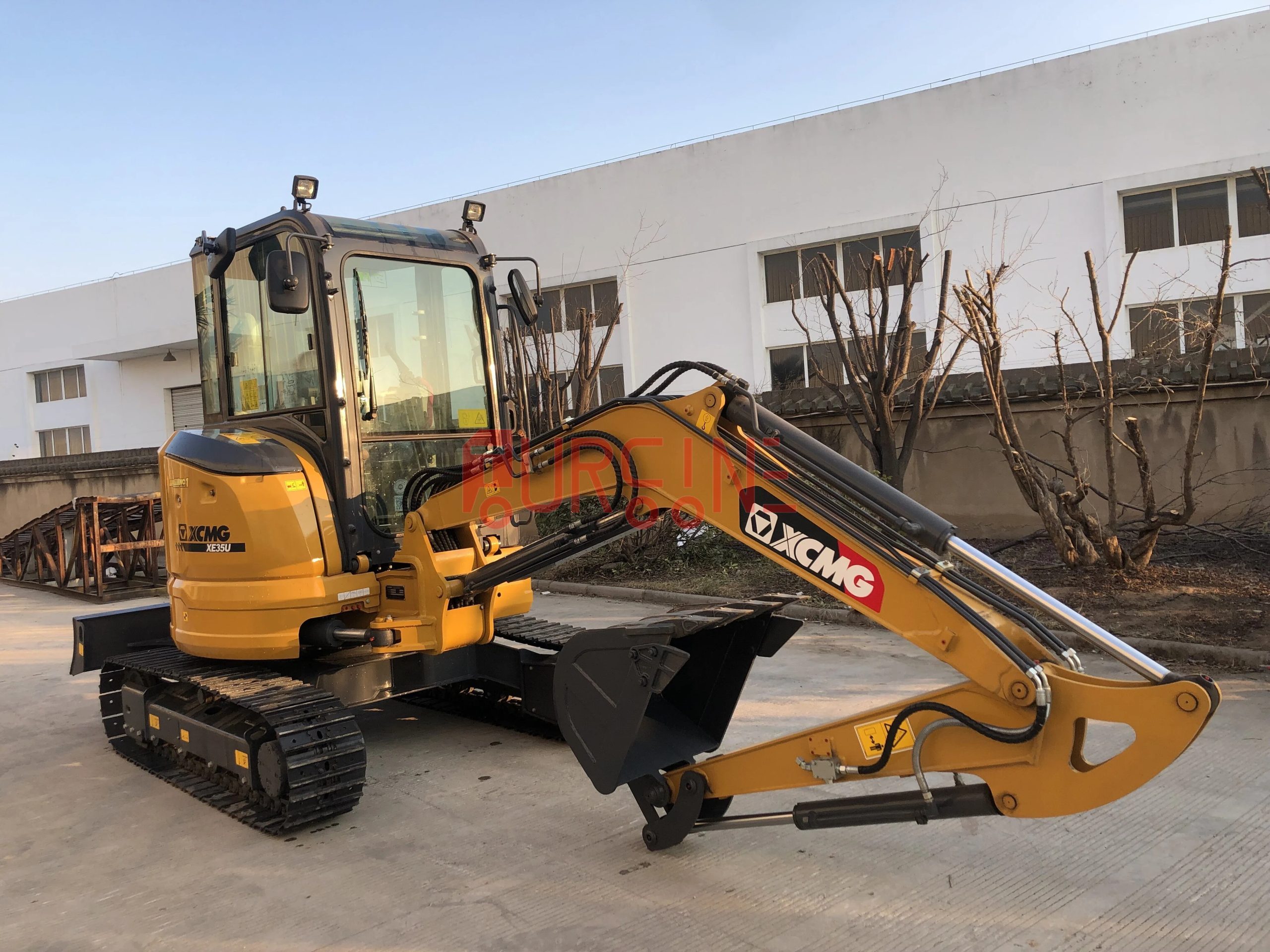

0.12m³ 4.2t XE35U Mini Hydraulic Excavator

Operating weight		kg	4200
Bucket capacity		m3	0.11

Model		Metric unit	XE35U
Operating weight		kg	4200
Bucket capacity		m3	0.11
Engine	Output power	kW/ r/min	21.6/2400
	Torque/speed	N.m	107.2/1444
	Displacement	L	1.642
Main performance	Travel speed(H/L)	km/h	3.6/2.2
	Gradeability	%	58
	Rotating speed	r/min	8.5
	Ground pressure	kPa	36.6
	Bucket digging force	kN	24.6
	Arm crowd force	kN	17.8
Appearance size	Overall length	mm	4960
	Overall width	mm	1740
	Overall height	mm	2535
	Width of platform	mm	1585
	Length of crawler	mm	2220
	Overall width of chassis	mm	1740
	Width of crawler	mm	300
	Track length on ground	mm	1440
	Crawler gauge	mm	1721
	Clearance under counterweight	mm	587
	Min. ground clearance	mm	297
	Min. tail swing radius	mm	870
Working scope	Max. digging height	mm	5215
	Max. dumping height	mm	3760
	Max. digging depth	mm	3060
	Max. vertical wall digging depth	mm	2260
	Max. digging reach	mm	5415
	Min. swing radius	mm	2170
