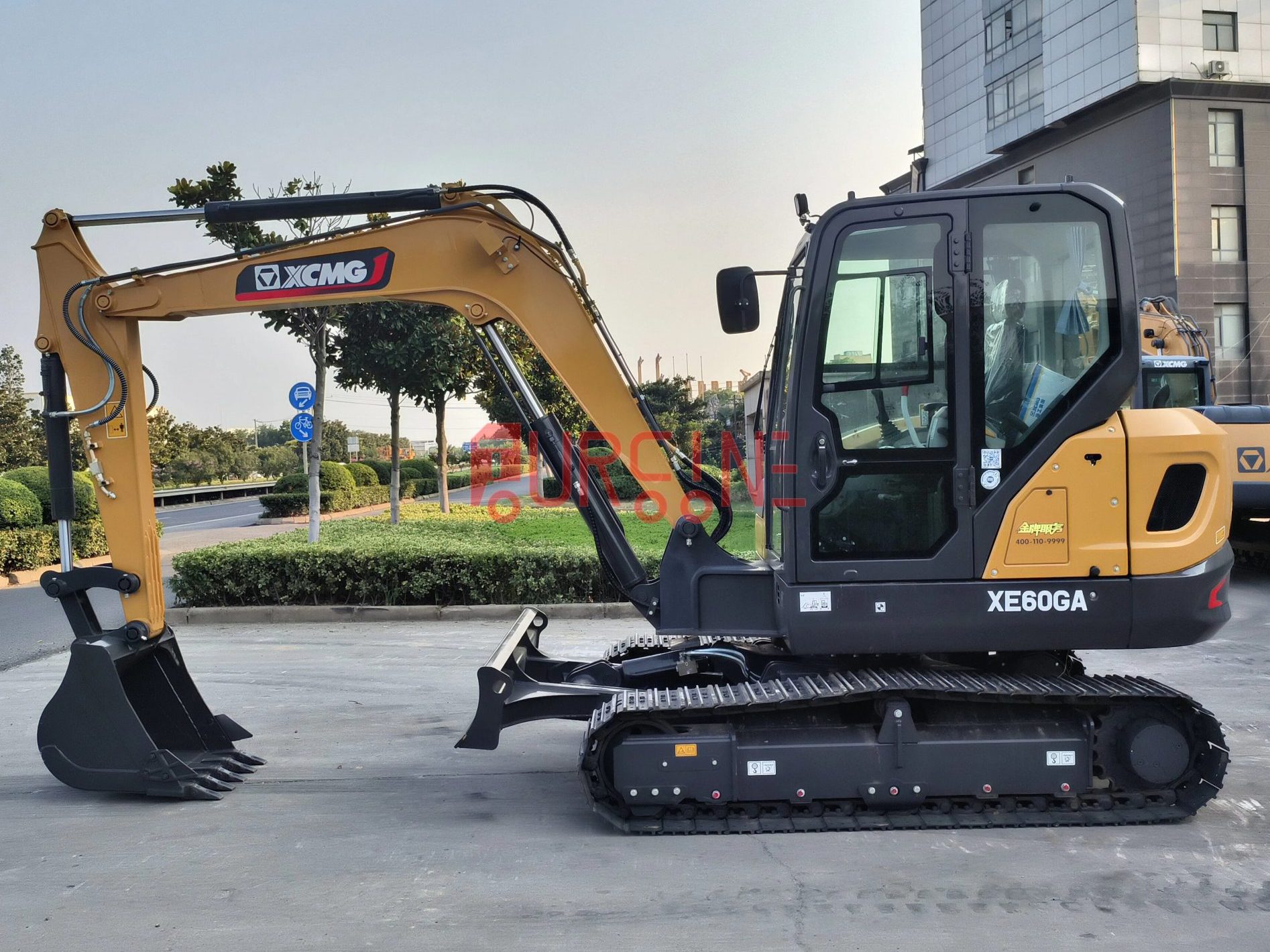

0.25m³ 6tons XE60GA Crawler Excavator for Sale

Operation Weight		6050 kg
Bucket Capacity		0.25 m ³
Main performance	Travel speed(H/L)	4.2/2.4 km/h
	Rotating speed	10 r/min
	Gradeability	35°
	Ground pressure	32.5 kPa
	Bucket digging force	48.3 kN
	Arm digging force	32.5 kN
	Maximum traction	50.5 kN
Hydraulic system	Rated flow of main pump	151.2 L/min
	Pressure of prime valve	24.5 Mpa
	Pressure of travel system	22 Mpa
	Pressure of swing system	21 Mpa
	Pressure of pilot system	3.5 Mpa
Oil capacity	Fuel tank capacity	110 L
	Hydraulic tank capacity	85 L
	Engine oil capacity	12 L
Appearance size	Overall dimensions(LWH)	5860×1920×2585 mm
	Width of platform	1780mm
	Width of crawler	400 mm
	Clearance under counterweight	700 mm
	Min. ground clearance	385 mm
	Min. tail swing radius	2890 mm
Working scope	Max. digging height	5630 mm
	Max. dumping height	3945 mm
	Max. digging depth	3830 mm
	Max. vertical wall digging depth	2680 mm
	Max. digging reach	6130 mm
	Min. swing radius	2460 mm
Standard	Boom length	3000 mm
Standard	Arm length	1600 mm
