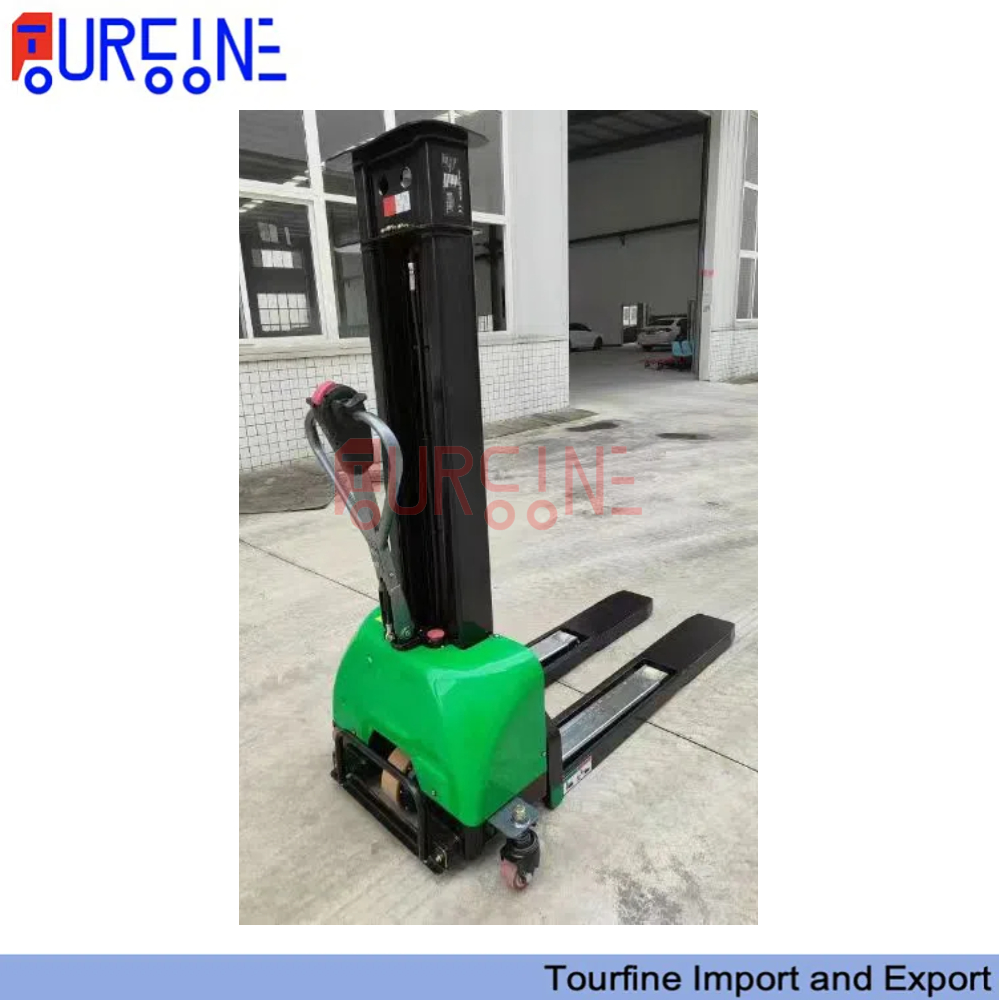

1000KG 1500KG Self Load Stacker Full-Electric Stacker

This 1000KG/1500KG Self-Load Stacker features a full-electric design, integrating self-loading, transporting, and stacking in one unit—ideal for various logistics and warehousing scenarios.

The one-button self-loading function allows effortless loading onto trucks without additional lifting tools, saving both labor and time. Its powerful drive system ensures stable slope climbing and long-duration operation.

With flexible control and easy maintenance, it’s an ideal choice for improving efficiency in modern material handling.

Miss Shilo
Senior sales
Tel./hatsApp:0086 17813710458
Beiiing Tourfine lmport and Export co., Ltd
Web.:www.trucksmachine.com
Punctual One-Stop Shipping Service, Makes Business Easier with Us

Model	Item	Unit	1000	1500
Feature	Type of power		Li-Ion Battery	Li-Ion Battery
	Max.load	KG	1000	1500
	Load center	mm	400	400
	Wheelbase	mm	924	924
	Wheel distance:FR	mm	405/525	405/525
	Wheel distance:RR	mm	802	802
	Type of operation		Walk	Walk
Size	Front wheel	mm	80*70	2-8070/2-8060
	Universal wheeel	mm	75*45	75*45
	Middle wheel	mm	45*30	45*30
	Driving wheel	mm	185*70	185*70
	Middle wheel position	mm	158	158
	Length of outriggers	mm	770	780
	Max. fork height	mm	800/1000/1300/1600	800/1000/1300/1600
	External distance between forks	mm	565/685	565/685
	Length of fork	mm	1195	1250
	Thickness of fork	mm	70	80
	Width of fork	mm	190	190
	Overall length	mm	1603	1657
	Overall width	mm	852	852
	Overall height(Mast closed)	mm	1166/1366/1666/1966	1163/1363/16633/1963
	Overall height(Max.fork height)	mm	1850/2250/2850/3450	1861/2661/2861/3461
Performance	Lifting speed	mm/s	55	55
	Descent speed	mm/s	100	100
	Lift motor power	kw	1.6	2
	Driving motor power	kw	0.8	0.8
	Max. speed(Turtle speed/full-load)	km/h	1/3.5	1/3.5
	Gradeability(Full-load/No-load)	%	5/10	5/10
	Battery voltage	V	48	48
	Battery capacity	Ah	15/30	15/30
Weight	Battery weight	kg	6/10	6/10
Weight	Total weight include battery	kg	302/320/332/347	370/380/390/405
