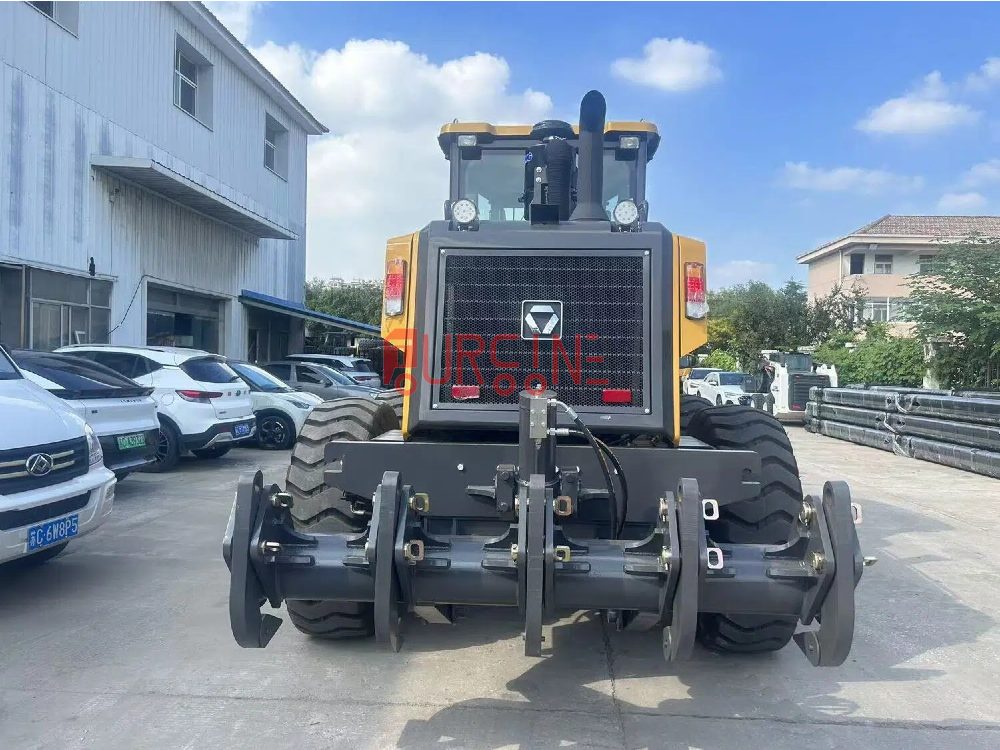

165 HP Motor Grader Gr165

Item			GR165
Basic parameters	Engine model		6BTA5.9-C180
	Rated power/speed		130kW/2200rpm
	Overall dimension (standard)		890026253470mm
	Total weight (standard)		15000kg
	Tire specification		17.5-25
	Ground clearance (front axle)		430mm
	Tread		2156mm
	Space of front and rear axles		6219 mm
Performance parameters	Forward velocity		5,8,11,19,23,38km/h
	Reverse speed		5,11,23km/h
	Tractive effort f=0.75		77kN
	Maximum gradeability		25%
	Tire inflation pressure		260kPa
	Working system pressure		16MPa
	Transmission pressure		1.3-1.8Mpa
Working parameters	Maximum steering angle of front wheel		±50°
	Maximum slant angle of front wheel		±17°
	Maximum oscillating angle of front axle		±15°
	Maximum oscillating angle of equilibrium box		±15°
	Maximum steering angle of frame		±27°
	Minimum turning radius		7.3m
	Scrape knife	Maximum lift height	450mm
		Maximum cutting depth	500mm
		Maximum tilt angle	90°
		Cutting angle	28°-70°
		Angle of revolution	360°
		Length & chord height	3660*610mm
Oil filling amount	Coolant		50L
	Fuel tank		280L
	Engine		24L
	Transmission		38L
	Hydraulic oil		110L
	Drive axle		28L
	Balancing box		46 L
