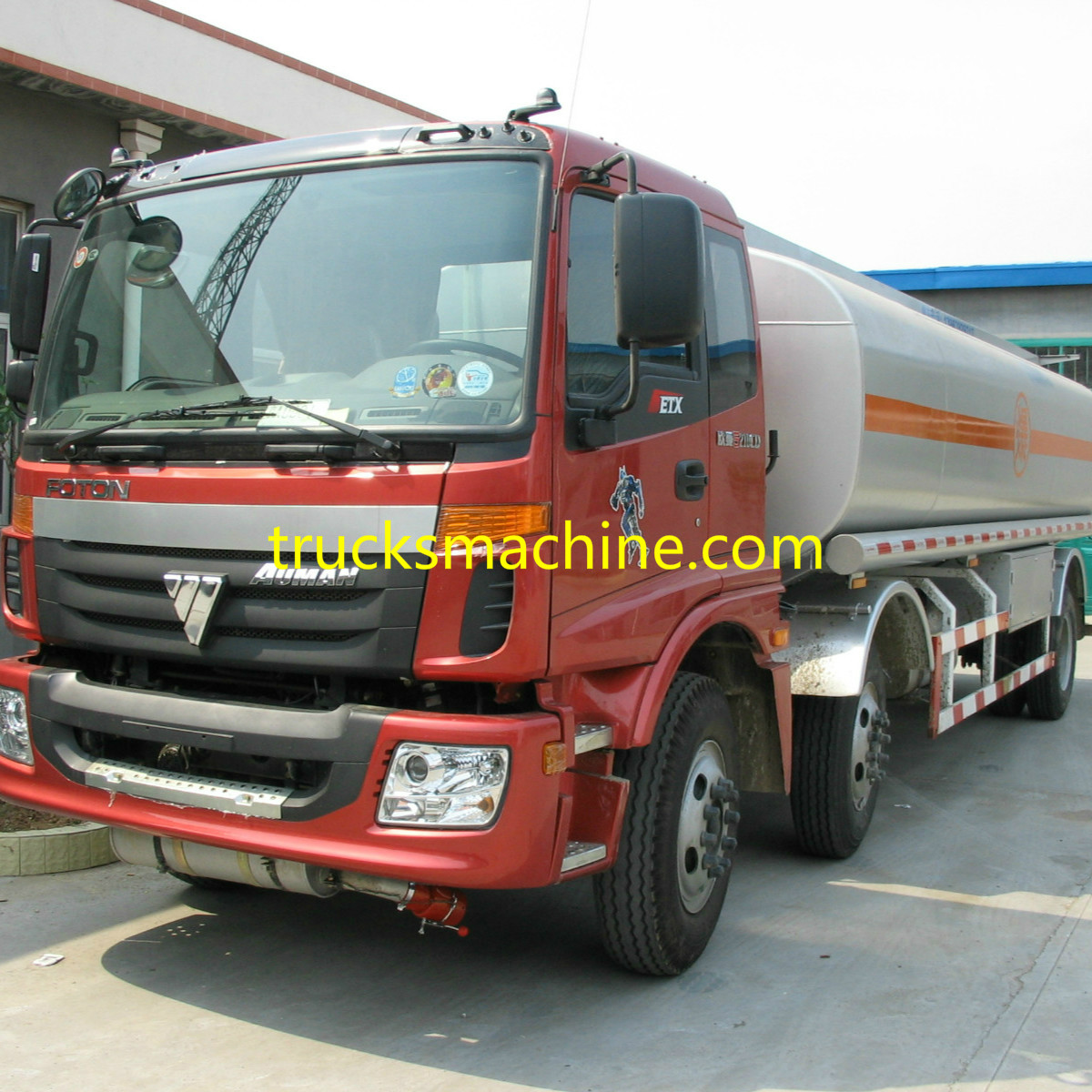

2021 NEW FOTON 20000L Fuel Tank Truck

Overall dimensions	10067x2490x3010mm	Wheel base	4725+1300mm
Front/rear wheel track	1930/1860/1860mm	Front/rear suspension	1532/2510mm
Approach/departure angle	11/12°	Maximum speed	79km/h
Chassis Manufacturer		Beijing Foton Daimler Motor Co., Ltd.
Cab	Configuration	ETX2420 a row and a half cab(with sleeping berth),allowable 3 passengers,air conditioner
	Color	White,other color is optional
Engine	Model	SC9DK270Q3B1
	Emission	Euro 3
	Type	6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,direct injection,exhaust valve brake,diesel engine
	Rated power	270hp,rated power speed 2200rpm
	Displacement	8820ml
	Max.torque	1125N.m
	Bore x stroke	114x144mm
	Manufacturer	Shanghai Diesel Engine Co., Ltd
Tire	Size	10.00-20 nylon tire
	Number	10+1 nos
Clutch	φ430 diaphragm clutch
Fuel tank	350L aluminum alloy
Rear axle	10.0 tons
Drive form	6X4
Rated voltage	24V,DC
Transmissions	Gear box 9JS,9 speed forward 1 reverse
Steering device	Power assisted steering
Steering wheel	Left hand drive
Tank dimensions	7600X2420X1600mm	Tank volume	20000L
Tank material	Carbon steel	Tank thickness	5/6mm
Color and Logo	Optional
Standard configuration	Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration	Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.
