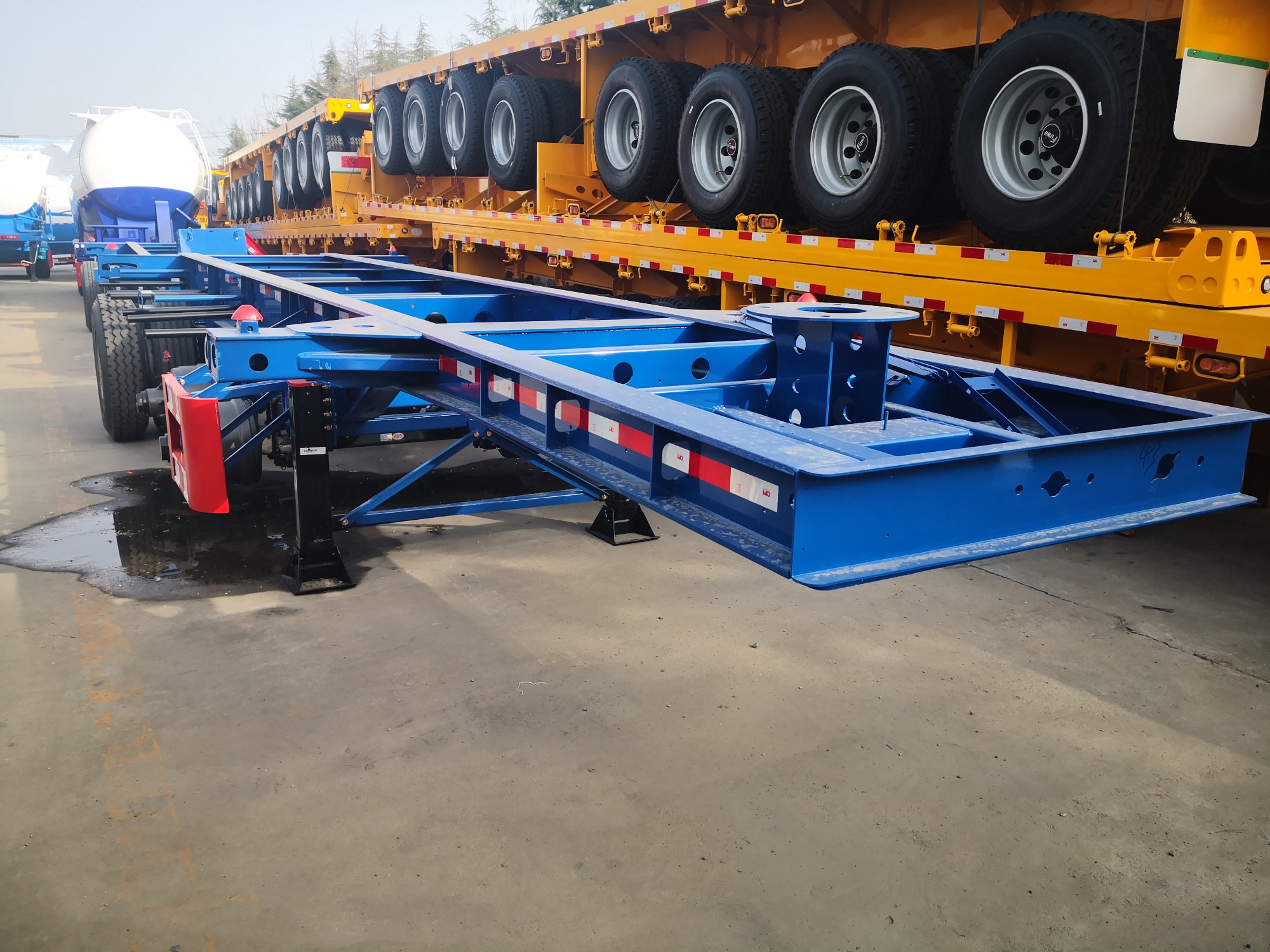

2022 Skeleton 40t 20ft 40ft Container Semi trailer for sale

2022 Skeleton 40t 20ft 40ft Container Semi trailer for sale

1, the skeleton type container semi-trailer. Port is mainly used in ships, hubs, Bridges, highway, tunnel, multimodal transport matching logistics system.
2, can undertake rapid loading and unloading, and can easily change directly from a means of transport to another transport.

Send Inquiry Live Chat

Product Details

Trailer Model	3 Axle skeloton Container Semi Trailer
Overall Dimension(mm)	12500mm2500mm1600mm
Loading Weight( KG)	40000kg
Axle Brand	3*13TON Axle FUWA Brand
Suspension system	Mechanical Leaf Spring Suspension
The material of Main beam	Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
Platform plate	3mm Diamond plate
Container Twist Locker	12pcs container lock
Tire Type and quantity	12R22.5 12units
Rim	9.00-22.5
Traction Pin	2” or 3.5”
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Landing Gear	28ton single action supporting legs
Brake system	Dual Line braking system
Brake air chamber	Six double chamber
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
