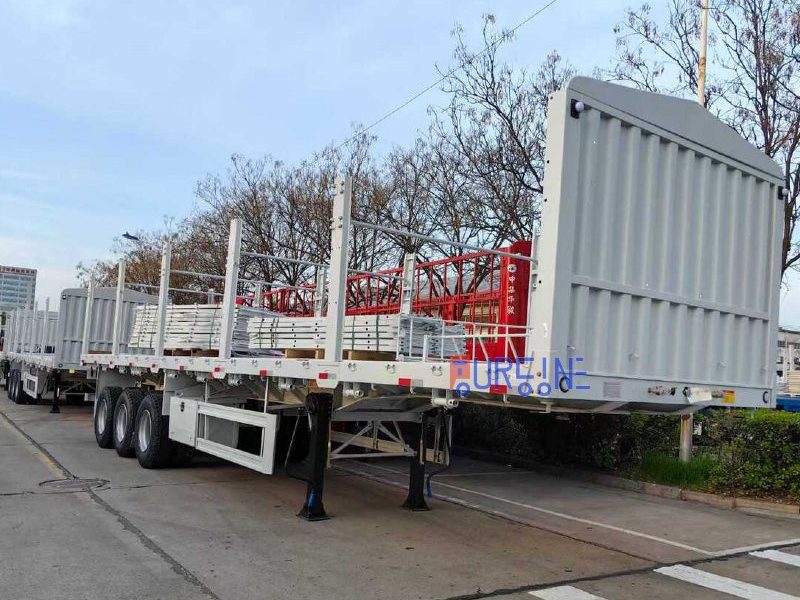

3 Axle Timber Side Column Semi Trailer

Engineered for strength and stability, the Tourfine 3 Axle Timber Side Column Semi Trailer is ideal for transporting timber, logs, and long cargo. Built with high-tensile steel and reinforced side columns, it ensures maximum load capacity and safety during transit. The three-axle design provides excellent balance and smooth handling on all terrains. Easy loading and unloading, customizable configurations, and superior durability make it the perfect choice for forestry, construction, and bulk cargo transport.

If you are interested in our trucks, please see more info. at www.trucksmachine.com

Web: https://www.trucksmachine.com

E-mail:tourfineshilo@trucksmachine.com

Whatsapp/wechat/tel.:0086 17813710458

For detailed proposal, price, service, welcome to contact us by email

Item	Unit	Quantity	Notice
overall size			12440length*2500width, height will be adjusted according detail according to the drawing
axle	piece	3	13T FUWA braking pad 220mm width
tyre	piece	13	12.00R20, with a spare tire
rim	piece	13	8.5-20
leaf spring	piece	6	160mm width8pieces13mm thiness
braking system	set		2 line air braking system with air tank ,emergency relay valve,braking chambers and mechanical slack adjusters.
electrical system	set	1	24 volt electrical system. LED lights, 7 pin electrical connector.parking .stop,reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors
suspension	set	3	reincorced
relay valve			WABCO
landing gear	pair	1	JOSTC200, one side operation
kingpin	piece	1	JOST 90# WELDING TYPE
tie-in	piece	2	Haldex
chamber	piece	2	T 30/30 4pcs
twist lock	piece	12	it can load 140', 220' and 1*20' in the middle
floor			3mm checkered
upper and lower wing plates			14/16mm, using the highly quality Q345 steel,
main beam			500mm,webplate:6mm using the highly quality Q345 steel
side beam			18# channel steel 16#
cross beam			10cm
Shotblasting and paint			Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. whole trailer waxed, sea water proofed paint
spare tyre carrier		2	standard
tool box	piece	1	standard
color			according to your required color code
