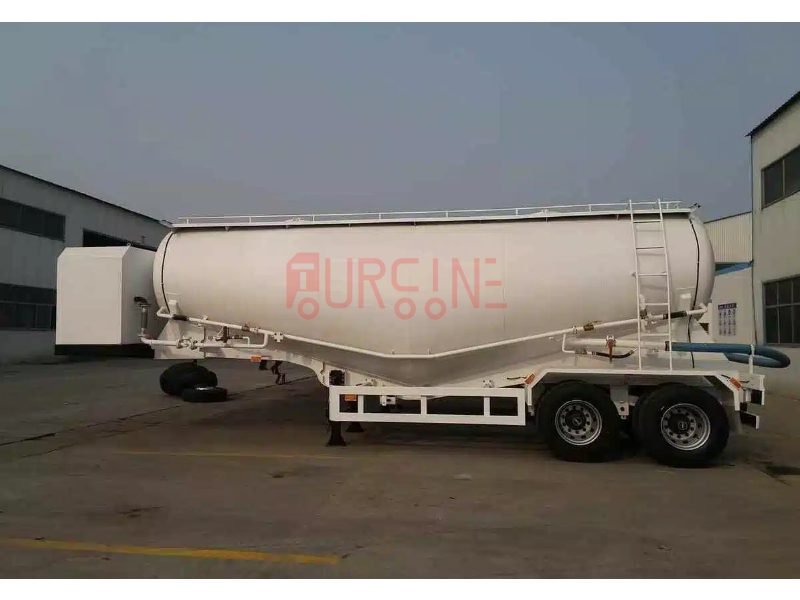

3 Axles 30-60cbm Bulk Cement Semi Trailer

Dimension	12000mm2490mm3990mm (Exact size depends on the final design)
Tare weight kg	About 11800KGS-13000KGS
Tank capacity (CBM)	30cbm-60cbm (Volume optional)
Shape	Optional (v or w shape)
Compartments	One or two compartments
Tanker Body Material	5mm or 6mm/Q235 carbon steel
End Plate	5mm or 6mm/Q235 carbon steel
Rim	8.00-20/8.5-20/8.8-20/9.0-22.5 China Brand
Tire	12R22.5/11R22.5/13R22.5/11.00R20/12.00R20 (brand can be Optional)
Engine	Weichai 4105 Engine
Manhole Cover	500mm carbon steel or aluminum alloy manhole
Bottom Valve	3''/ 4" disc valve
Discharging Valve	Diameter is 3 or 4 inch
Discharging Pipe	4" rubber hose, 2 pcs, 6m/each
Air compressor	10 m3,12m3
Diesel Engine	Weichai Huafeng, Tianhe 4102/4105
	Welding design or Special design, connected by bolts and nuts.
	Material: Q345 carbon steel
Main Beam	Height 500mm,
	Upper Thickness 14~18mm,
	Middle Thickness 8~12mm,
	Down Thickness 16~20mm
Axle	3 axles, BPW/FUWA brand (Optional)
Landing Gear	JOST(D200T) or China brand 28T (two speed)
Brake System	WABCO Valve with big chamber
King Pin	JOST 2.00 or 3.5-inch bolt-in kingpin
Suspension	Mechanical suspension or Air suspension
Leaf Spring	90(W)mm×13(Thickness)mm×10(Layer) or 100mm×12mm×12
Rear ladder	Dismountable
Lights	Turning Light, Side Marker Light, Tail Light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Painting	Complete Chassis sandblasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
ABS	Optional
Accessories	One standard toolbox
