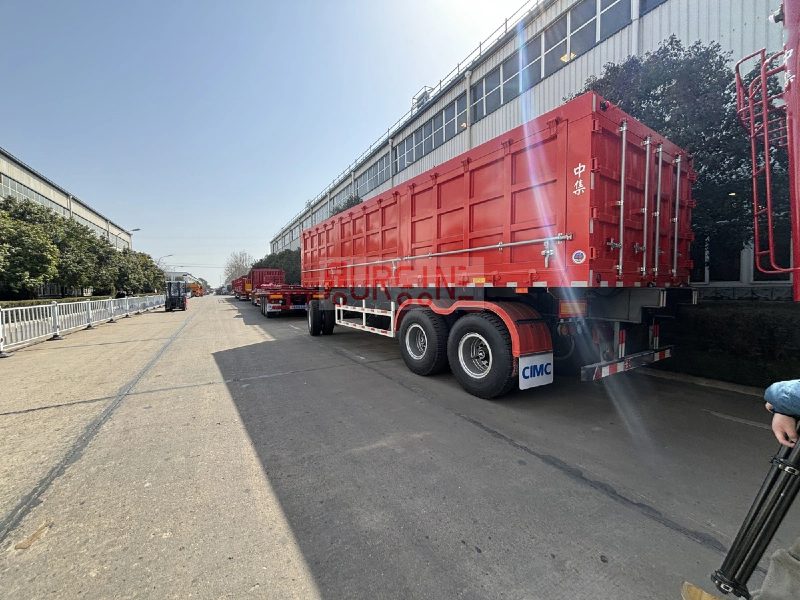

3 Axles 30 Ton Rear Full Trailer New Trailer

The main body of the trailer is made of high quality high strength alloy steel, formed by high precision welding technology, constructing a sturdy and stable load bearing structure. With a rated load carrying capacity of 30 tons, it meets the stringent requirements of heavy load transportation. The unique three axle layout design optimizes the wheelbase and axle load distribution based on mechanical principles, significantly improving driving stability and handling flexibility, and effectively reducing energy consumption and tire wear during driving. The rear full hanging structure not only expands the cargo space but also improves the convenience and safety of cargo loading and unloading, adapting to diverse cargo transportation needs.

While ensuring high performance, this product has a highly competitive price advantage, providing customers with an economical and efficient transportation solution, helping the logistics and engineering transportation industries improve operational efficiency and reduce comprehensive costs.

ltems	Full trailer
Loading Capacity	5-30tons
Axle	13T/16T/20T BPW or FUWA
Tyre	12R22.5,11.00R20,12.0OR20,315/80R22.5
Dimensions(LxWxH)	7500mm x 2500 x 1750mm
Tare weight	5 tons
Rims	6.5-22.5
Suspension System	Mechanical Spring or Air Suspension System
Brake System	Dual line pneumatic brake system with emergency relay valve
Main Beam	Height 500mm Q345 carbon steel
Side wall height	400-1200mm height
Kingpin	2"or 3.5"
Landing Gear	28ton ,double speeds
Electrical System	1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting	Shot blast to SA2.5 Standard prior to application of primer, polyurethane top coat.Tota DFT not less than 100um;Any color will be available
Tool Box	One tool box with a set of standard trailer tools
Spare Tyre Carrier	One piece or two pieces
