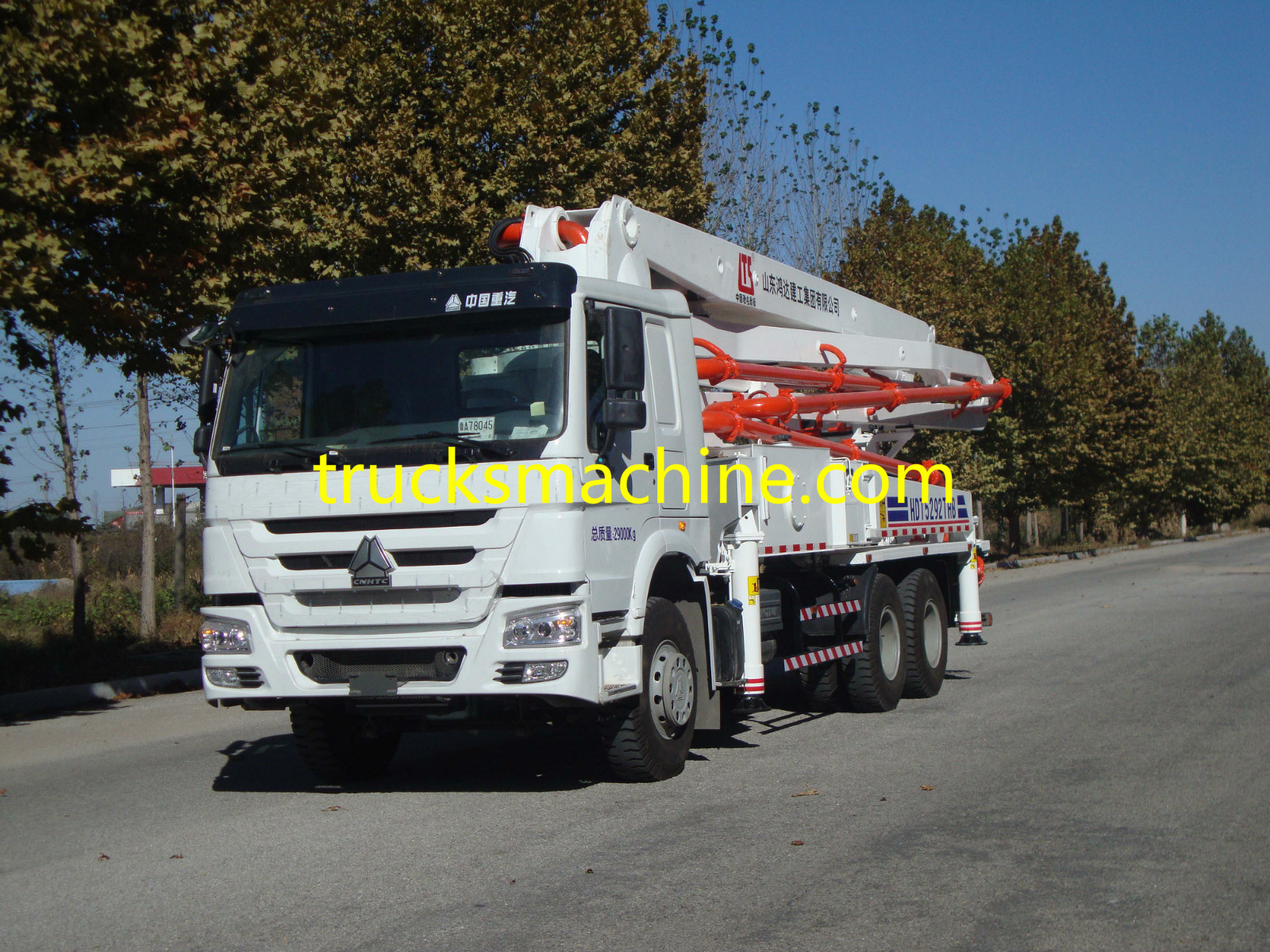

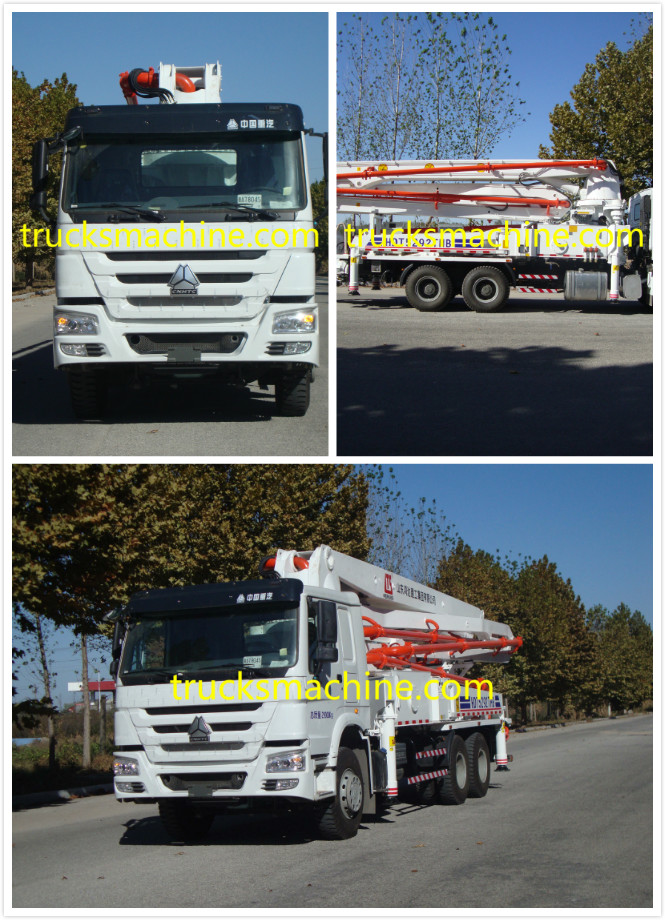

37m-boom Concrete Pump Truck

Items		Unit	Model of Whole Truck
Items		Unit	HDT5292THB-37/4
Main Technical Parameters in Service	Theoretical Pumping Capacity	m3/h	150
	Pumping Capacity Index	Mpa.m3/h	586
	Theoretical Pumping Pressure	Mpa	8.5
	Hopper Capacity	L	700
	Feeding Height	mm	1370
	Distributing Valve Form		S-pipe valve
	Max. Distributing Radius	m	33.2
	Max. Distributing Height	m	37.2
	Max. Distributing Depth	m	24.3
	Height of Distributing Boom When Stretched	mm	8450
	Distance between Front Landing Legs	mm	6507
	Distance between Rear Landing Legs	mm	6600
	Distance between Front and Rear Landing Legs	mm	7179
	Diameter of Conveying Pipe	mm	125
	Length of Tail Hose	m	4
	Rotary Range of Distributing Boom		365°
	Number of Boom Sections		4
	Rotary Angle of Each Boom Section	°	92/180/180/270
	Remote-control Distance	m	200
Main Technical Parameters in Traveling Condition	Max. Traveling Speed	km/h	90
	Min. Turning Radius	mm	8800
	Brake Distance	m	7
	Approach Angle	°	16
	Departure Angle	°	11
	Chassis Model		HOWO ZZ5347V4647D
	Wheel Base between the First and the Second Axle	mm	4600
	Wheel Base between the Second and the Third Axle	mm	1350
	Front Tread	mm	2022
	Rear Tread	mm	1830
	Max. Engine Power	kw	371HP (EURO II)
	Max Engine Torque	n.m	1350 (1100-1600r/min)
	Max. Grade Ability	%	35
	Fuel Consumption Limit	L/100km	34
	Overall Dimension (L ×W× H)	mm	12000×2490×3850
	Full-load Total Weight	kg	29000
