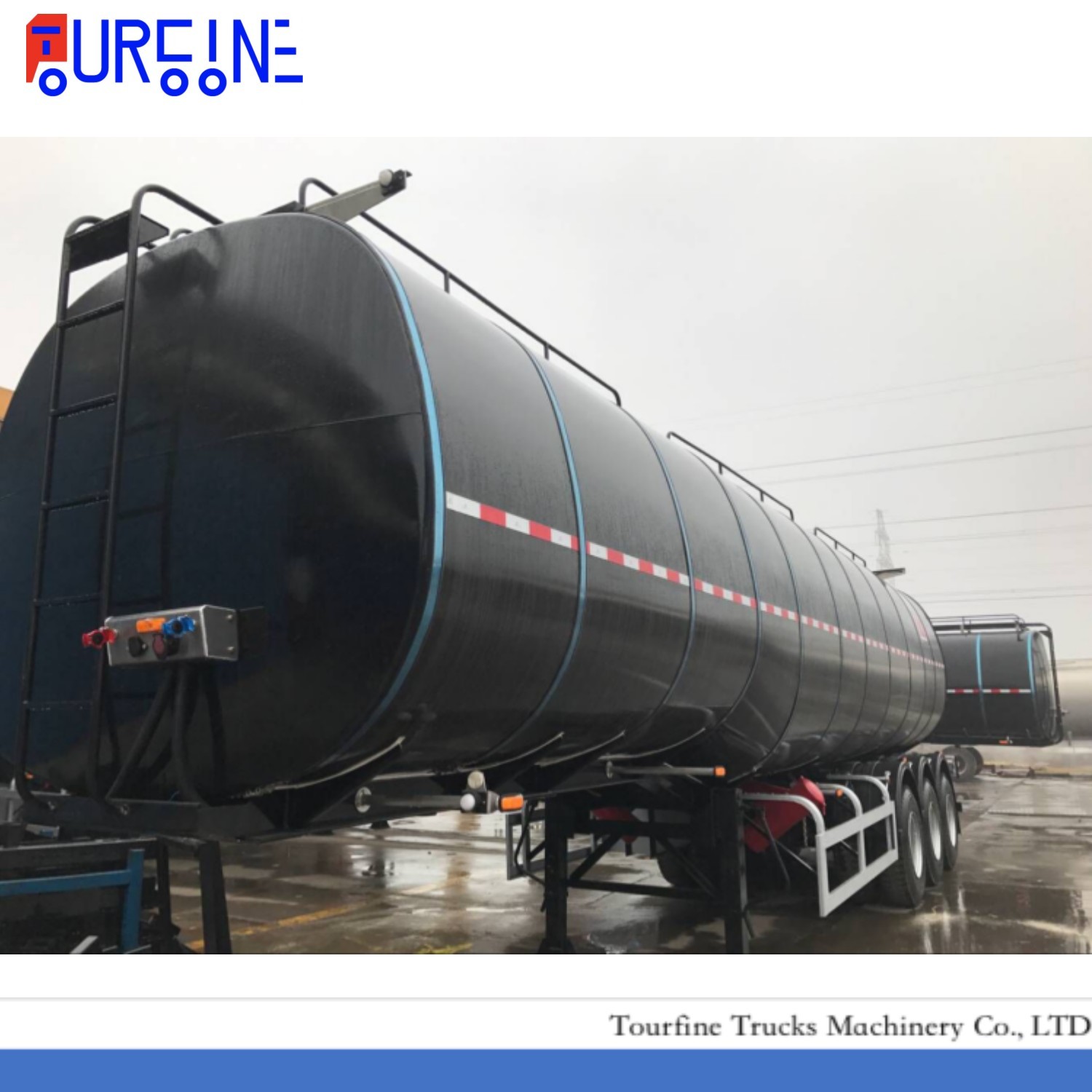

Asphalt Bitumen Transport Tanker truck trailer38000L Asphalt Tanker Semi Trailer

Tanker shape	Square type, single compartment
capacity	38000L including 5% vapor space
dimension	11,0002,5003,850 approx.
Tanker material	Carbon steel Q235B
thickness	End cover : 6mm，tanker body: 5mm
Manhole	Asphalt specialized using manhole: 2 pieces
Heat insulation layer	Warm keeping fiber，80mm
Outer skin	0.5mm steel, black color
Heating system	6 inch heat pipe, sigle unit
burner	BECKETT USA brand, electricity power from tractor.
Top walkway	Anti sliding carbon steel.
Discharging pipe	carbon steel, 6 inch
Discharge valve	carbon steel, 6 inch，butterfly valve: 1 piece，at the rear of tanker
Frame	Carbon steel
Kin Pin	JOST，2´´
Axle	HUAJIN 13t，3 axle
Suspension	Steel spring plate
Supporter leg	Asphalt specialized using leg
Tyre	Linglong 12.00R22.5, 12 pieces
ABS	4S/2M
Side guard rail	Carbon steel
Rear bumper	aluminium
Ladder	Carbon steel
Tool box	Carbon steel
Tyre mud cover	Semi-circle，single type
Fire extinguisher	8kg，2 pieces
Fire extinguisher rack	Carbon steel，2 pieces
painting	CIMC standard
remark	3M
Electricity system	24v，LED light 7 hole connector, conform toISO No. 1185standard Side reflector light (orange color) Rear part, braking light(red color) emergency light(white color)
