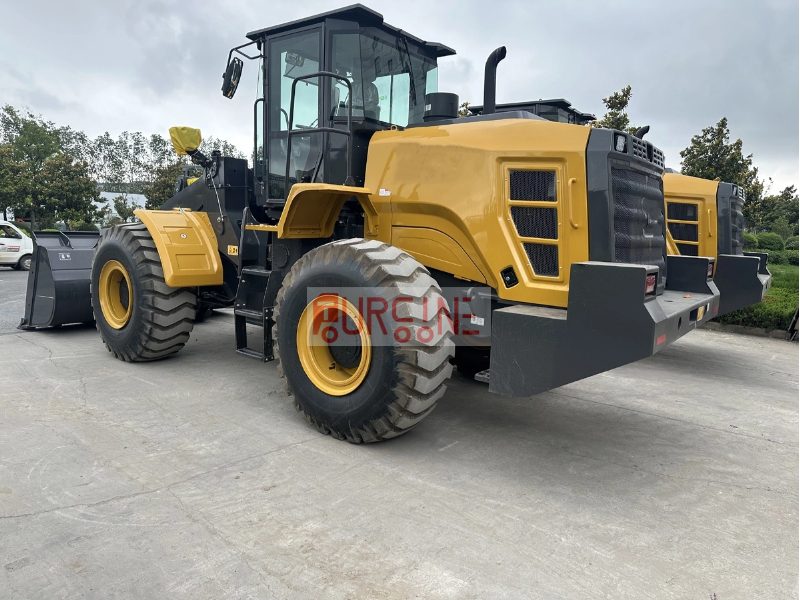

3cbm 5.5t Construction Wheel Loader XC958

Overall length	8580	mm
Overall width	2996	mm
Overall height	3455	mm
Dumping height	3380	mm
Pivot height	4450	mm
Max lift height	5900	mm
Dumping range	1150	mm
Digging depth	80	mm
Transport pin height	560	mm
Min ground clearance	425	mm
Wheel base	3350	mm
From the center of rear axle	1675	mm
Rear overhang length	2140	mm
Wheelbase	2250	mm
Mainframe width	2850	mm
Turning radius(outside of tool)	6820	mm
Turning radius(outside of type)	6045	mm
Rollback angle during lifting	57	°
Dumping angle	45	°
Dumping angle at transport position	47	°
Departure angle	28	°
Vehicle steering angle	40	°
Rated load	5500	kg
Rated bucket capacity	3.2	m³
Rated power	162	kW
Working mass	16950±300	kg
Max tractive force	160±5	kN
Max breakout force	180±5	kN
Wheel base	3350	mm
Wheel track	2250	mm
Dumping height	3070	mm
Dumping range	1240	mm
Boom lifting time	5	s
Total	10	s
Max gradeability	28	°
Steering angle	40	°
Engine	Brand and model	WEICHAI WD10G220E21
	Type	Inline,six-cylinder water-cooled,turbocharged
	Displacement	9.726
	Emission standard	China
Speed at gear1(forward/reverse)	13/17	km/h
Speed at gear1(forward/reverse)	40	km/h
Overall dimensions(L x W x H)	8380x2996x3455	mm
Gearbox	Type	Planetary transmission
Gearbox	Gears	2 forward 1 reverse
Drive axle	Brand and form	XG dry drive axle
Type	Standard specification	Front wheel:23.5-25-18PR rear wheel:23.5-25-16PR
Working hydraulic system	Typee	Dual-transmission confluence quantitative hydraulic system
Working hydraulic system	Operation mode	Pilot control
Steering htdraulic system	Type	Full hydraulic steering system
Brake system	Service brake	Air over hydraulic,four-wheel caliper disc brake
Brake system	Parking brake	Pneumatically-controlled internal expanding shoe brake
Air condition	Cooling and heating
Fuel/oil filling(for reference)	Diesel	300L
	Engine oil	20L
	Antifreeze	45L
	Drive axle oil	2×27
	Hydraulic fuel	150L
	Brake fluid	3L
