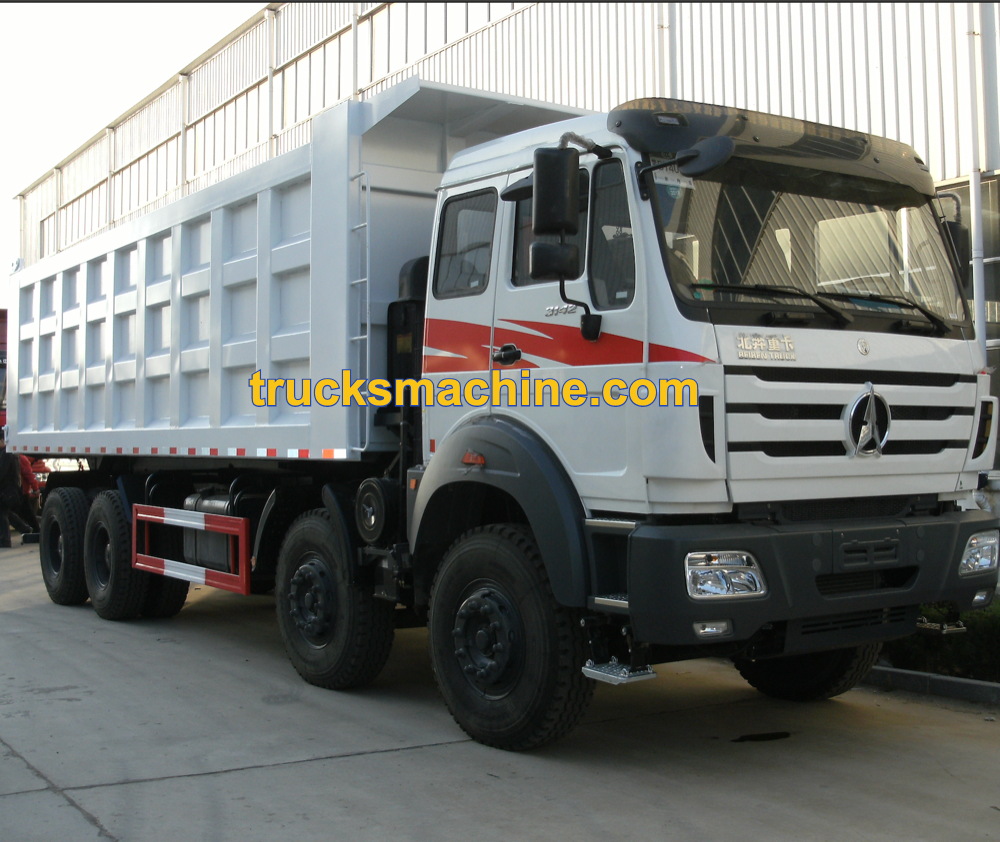

Beiben 12 Wheel 380hp 40T Mining Rock Heavy Duty Dump Truck

Overall Dimension:				1101625003484mm
Wheel base:				1500+4750+1450mm
Curb weight:				15060
Dimension for upper body				800023001500 mm
				Hyva lifting system, bottom 8mm, side6mm, front tipping.
Engine:	Model			WP10.380E32 water cooled, four strokes, 6 cylinders straight in line, turbocharged
	Fuel type			Diesel
	Emission standard			EuroIII
	Displacement(L)			9.726 This is exactly one
Fuel tanker capacity(L)				400L
Gear box				Model	12JS160T mechanical type, 12 forward speed gear
Brake system		Service brake		Brake gap can be adjusted automatically Double circulation air brake system
		Assistant brake		Engine exhaust brake
		Park brake		Potential springs pressing on middle and reel wheels
Steering system				ZF8098 Whole circulation in ball type hydraulic boosting.
Suspension system rear suspension				No free standing stabilization spring,stabilization suspension, 13pcs
Frame				Fish belly shape, variable width, variable sections
Front axle(Mercedes benz technology)				Double shoe pneumatic brake,none drving steering axle 6.5ton
Middle and rear axle(Mercedes benz technology)				Double-shoe pneumatic brake, ductile casting casing,with hub redactor, double reduction driving axle Middle axle:HD7/016DGS-13/5.263 Rear Axle:Hl7/015DS-13
Tire				12.00R20 Radial tire 11units
Electrical system			Batter	2*12V/135Ah
			Generator	28V-35A
			Starter	5.4KW/24V
Cabin			Short cabin,LHD NO SLEEPING BED Full steel skeleton structure, covered with double layer steel plate;can be tipped forwardly With tropical thermostat.
			Interior trimming: Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio with USB interface,Steering wheel can be adjusted.
			Exterior trimming Metal bumper,three steps,new mirror
