Tourfine the Best Trucks and Machinery Supplier

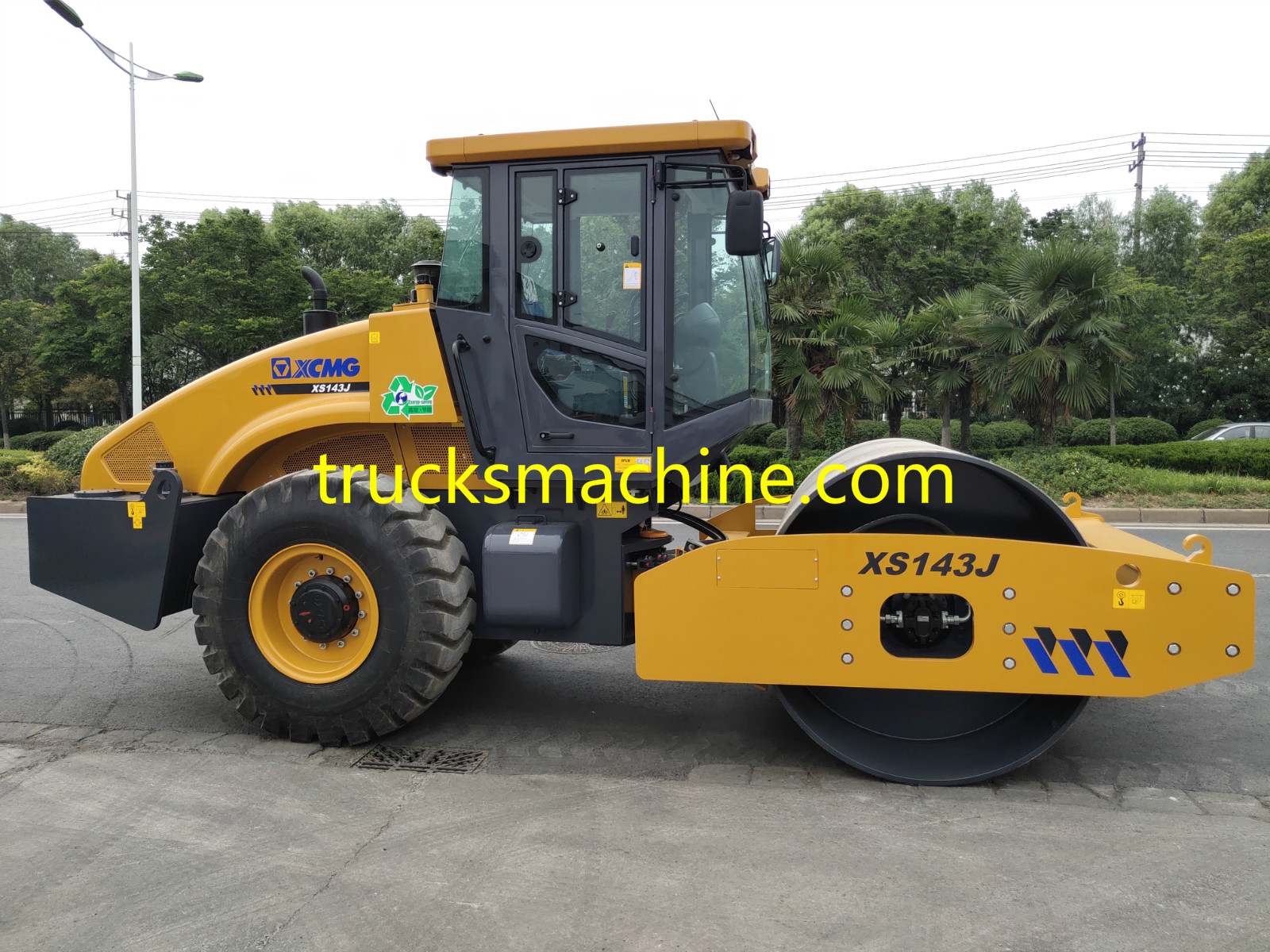

| Model | Unit | XS143J |
| Operating weight | kg | 14000 |
| Weight on front drum | kg | 7000 |
| Static linear pressure | N/cm | 322 |
| Speed range | km/h | |
| Speed I | 2.7 | |
| Speed II | 4.8 | |
| Speed III | 10.5 | |
| Theoretical gradeability | % | 30 |
| Min. external turning radius | mm | 6800 |
| Steering angle | ° | ±30 |
| Oscillating angle | ° | ±11 |
| Vibration frequency | Hz | 28 |
| Nominal amplitude (high/low) | mm | 1.9/0.95 |
| Excitation force (high/low amplitude) | kN | 274/137 |
| Engine model | SC5D125G2B1 | |
| Type | Water cooled, pressurized | Water cooled, pressurized |
| Max. power | kW | 92@2200r/min |
| Engine oil consumption | g/kW.h | 230 |
| Hydraulic oil tank capacity | L | 170 |
| Fuel tank capacity | L | 180 |
