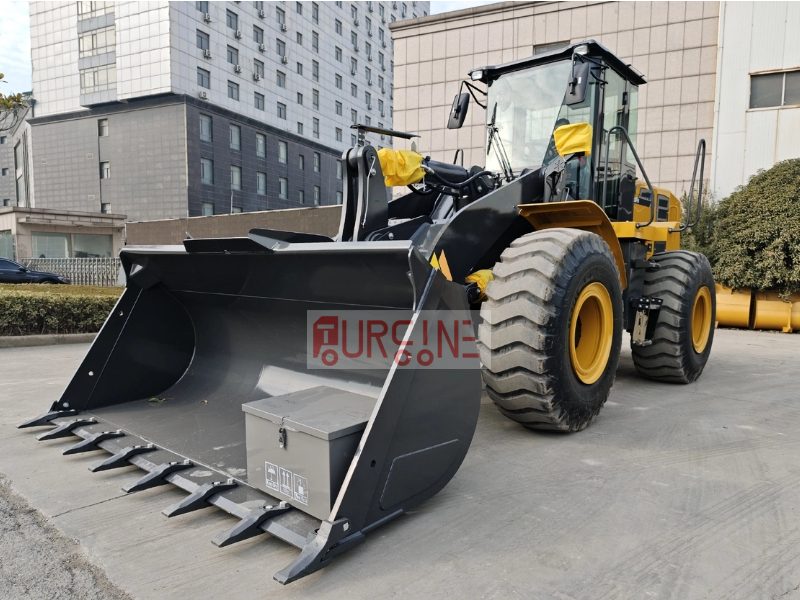

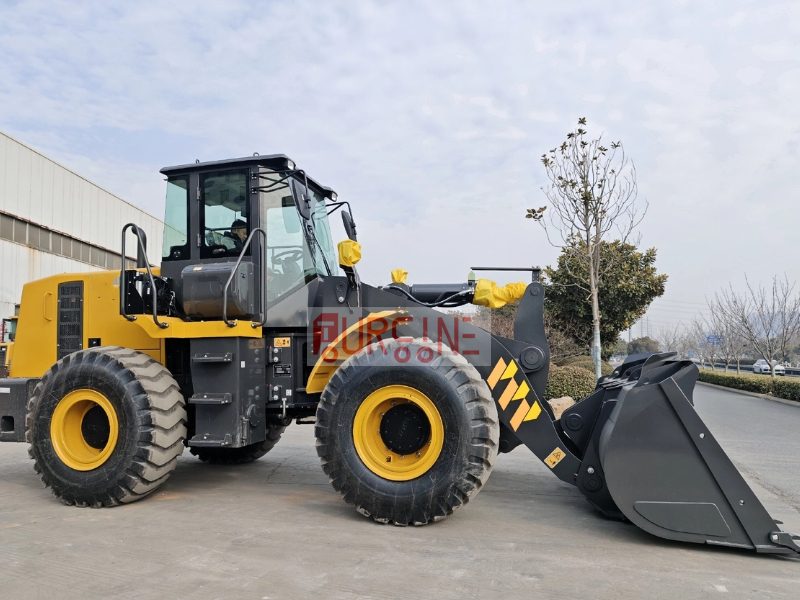

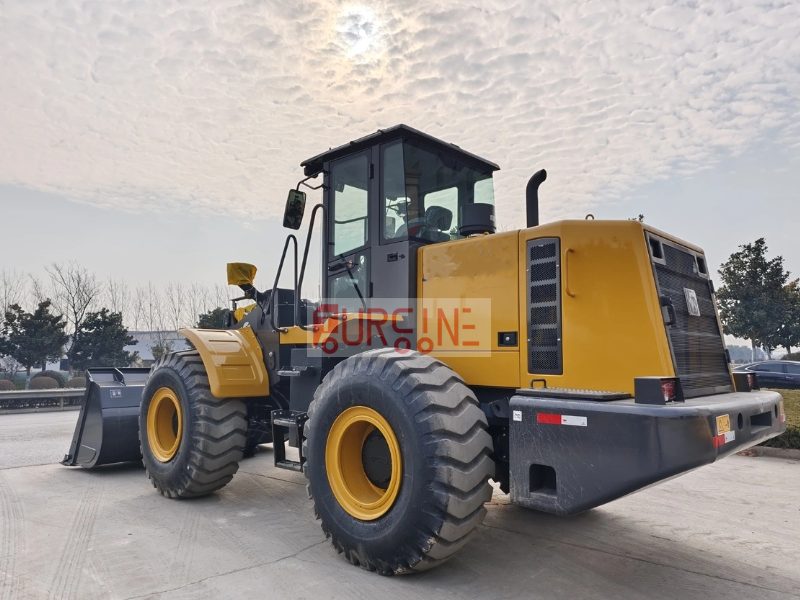

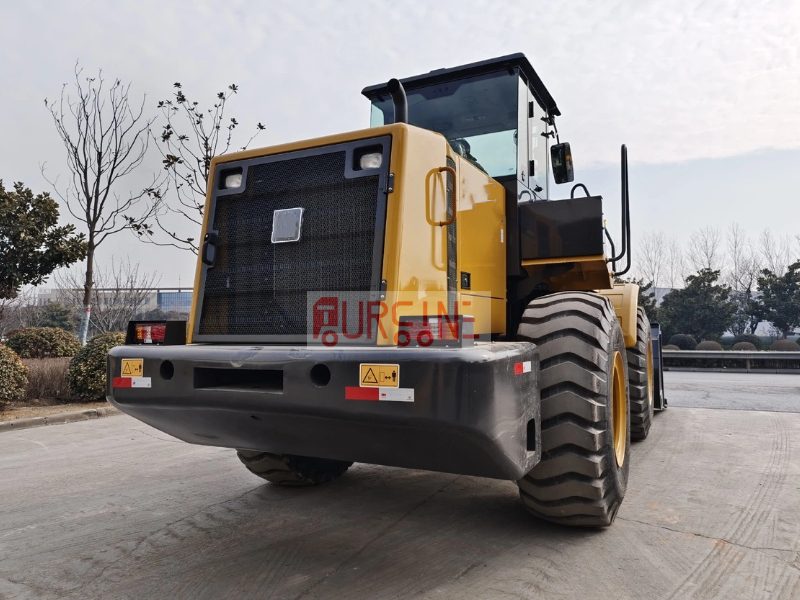

China Hot Sale 5Ton 2.5~4.5 Cbm Heavy Duty LW500FN Wheel Loader

BrandL: XCMG
Model: LW500FN
Loading capacity: 5ton
Bucket capacity: 2.5~4.5cbm
Overall dimension: 7910×3016×3515mm

Description		Specification	Unit
Rated operating load		5000	kg
Bucket capacity		2.5~4.5	m³
Machine weight		16900	kg
Dump clearance at maximum lift		3150~3560	mm
Reach at maximum lift		1100~1190	mm
Wheelbase		2960	mm
Tread		2250	mm
Height of hinge at maximum lift height		4112	mm
Working height(fully lifted)		5510	mm
Max.breakout force		170	kN
Hydraulic cycle time-raise		≤6	s
Total hydraulic cycle time		≤10.5	s
Min. turning radius over tyres		5950	mm
Articulation angle		35	°
Gradeability		28	°
Tyre size		23.5-25-16PR
Overall machine dimension L×W×H		7910×3016×3515	mm
Model		WD10G220E21
Rated Power		162	kW
Fuel Tank		250	L
Hydraulic Tank		210	L
Travel speed	I-gear(F/R)	13/18	km/h
	II-gear(F/R)	40	km/h
