Tourfine the Best Trucks and Machinery Supplier

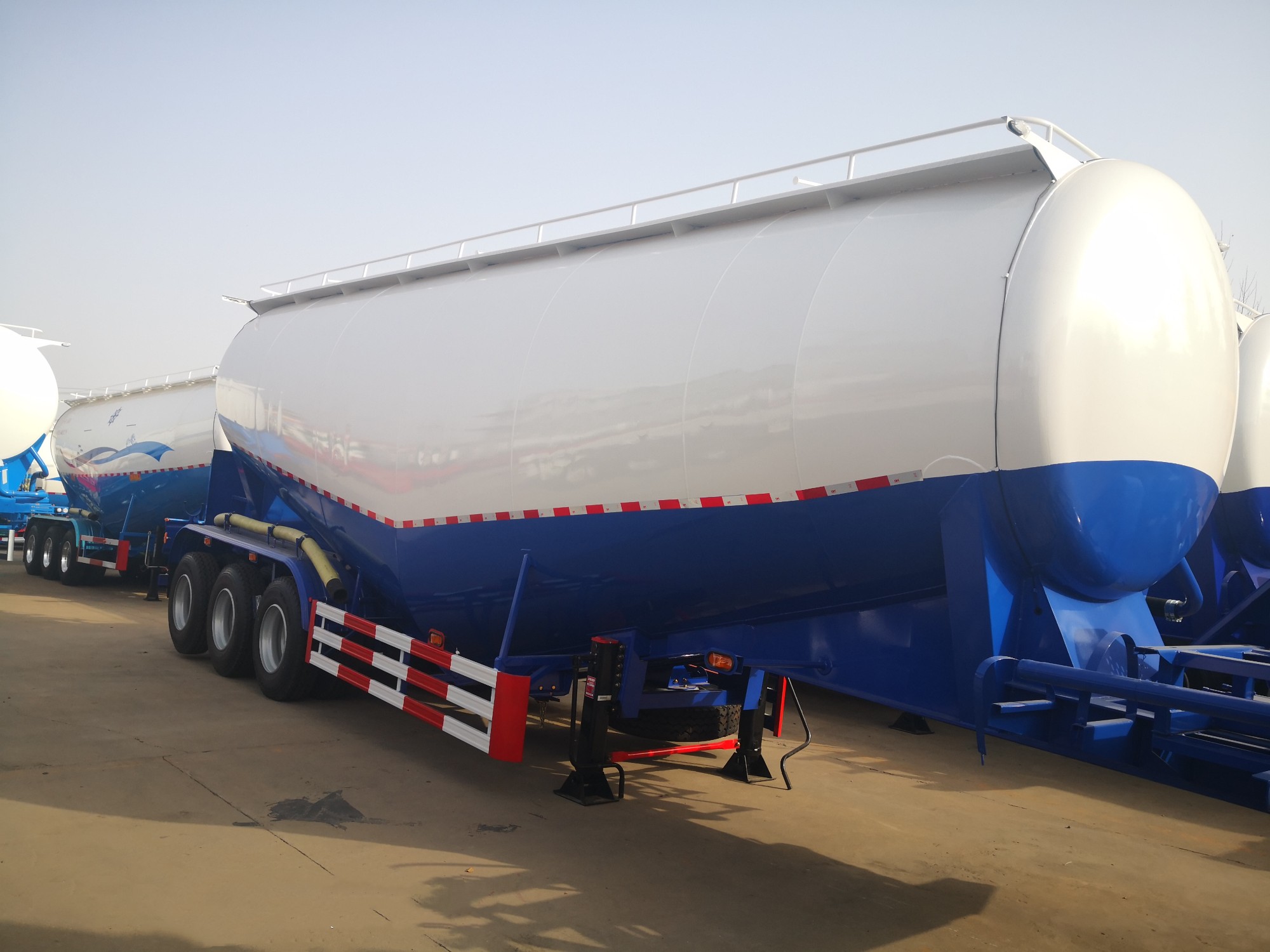

| Type: | Bulk cement tanker semi trailer |
| Usage: | Transport bulk cement, coal ash, mineral powder,etc |
| MOQ | 1 unit |
| Weight: | |
| Tare Weight | 9 T |
| Loading capacity | 42 T |
| Total weight | 51 T |
| Dimensions: | |
| Dimension | 11000×2500*3800mm (The final dimensions depend on the final design drawings) |
| Tanker capacity | 35m3 (35000L) |
| Design/welding technology | Heavy duty and extra durability designed; welding by automatic Submerged-Arc processes. |
| Bottom chassis | High strength Q345B steel |
| Tanker shape | “V” shape |
| Silo | 1 silo |
| Manhole: | 2 pieces, (Diameter is 500mm) |
| Discharge mouth | 4 inch Discharge mouth |
| Safety pressure valve | Standard |
| Discharge hose | 8m with Hose carries, the length is according to customer requirement |
| Air compressor | 12m3 double-cylinder air compressor, Bohai brand (Chinese famous brand) |
| Engine | Diesel Engine,Weichai 4102 engine (Chinese famous brand) |

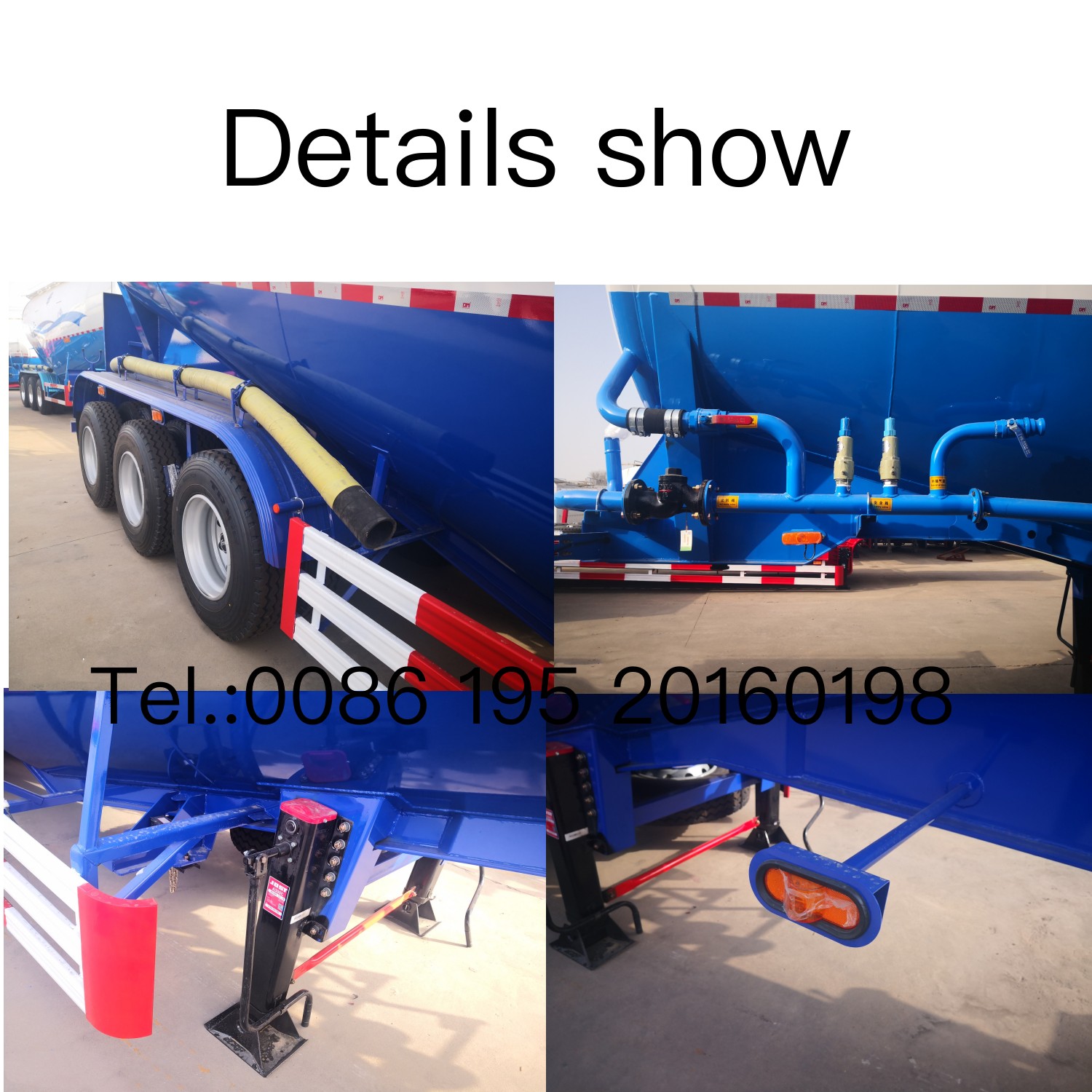

| Rear ladder and handrail | With, as the photos shows |
| Retention volume | <0.3% |
| Axle | 3 axles *square axle with 13 tons capacity, FUWA brand (Chinese best brand) |
| King Pin | 2.00’’(50#) bolting king pin, JOST brand,German brand,made in China |
| Suspension | Heavy duty tri-axle suspension with equalizers, American design (high-strength type) |
| Steel Spring | Six sets of reliable local brand, 10pcs leaf spring, 13mm thickness, 90mm width |
| Landing legs | JOST brand type, manual operation landing legs with sand shoe |
| Tire specs | 12R22.5, Triangle brand (Chinese famous brand) |
| Rim | 9.00-22.5,(Chinese famous brand) |
| Number of wheel | 13 pieces(including one spare wheel) |
| Brake system | WABCO relay valve; Four double and two single brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector. |
| ABS system | Without（Can be choose freely,450 USD/set） |
| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.) |
| Miscellaneous: | |
| Painting | Sand blasting before painting;one coats of primer, anti-corrosion;two coat of finish painting;color advised by client |
| Marking | Standard (Can spray customer LOGO) |
| Side Guard | Standard |
| spare wheel carrier | Two set of heavy duty spare wheel carriers, including a riser. |
| Tools box | One piece (1. 0*0. 5*0. 5m)(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) |
