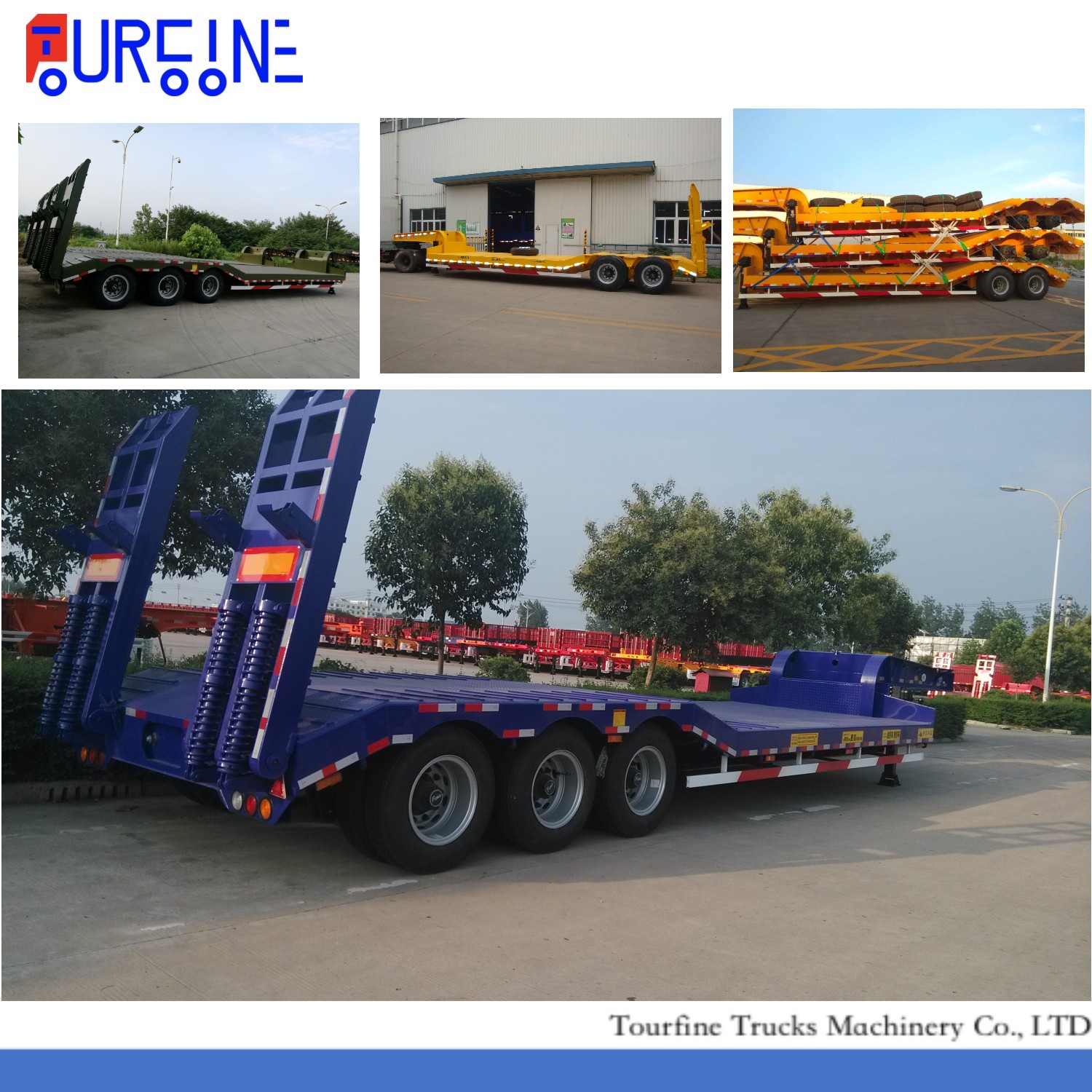

Excavator Lowbed Trailer 3 Axle 50t 60t Gooseneck Lowboy Semi Truck Trailer for sale

Item	Specification
Product name	Lowboy trailer
Size	1750030001250mm.
Body Sheet	Floor thickness: 4mm, checkered plate; Body material: high tensile steel.
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes.
Axle	16T FUWA brand axle
Tire	315/80R22.5
Rim	9.0-22.5
Suspension	3 axles CIMC reinforced type
Lead spring	CIMC reinforced type, 12 pieces and 16mm thickness.
Braking system	2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters.
Electrical system	24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors.
Shot blasting	Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed.
Landing gear	28T, two side operation.
Chamber	Double type
King pin	(2′) 50# or (3.5′) 90#
Ramp	Mechanical or Hydraulic type can be both acceptable by customers.
Spare tire carrier	CIMC standard
Tool box	CIMC standard
Color	According to customers’ requirements and RAL color code.
