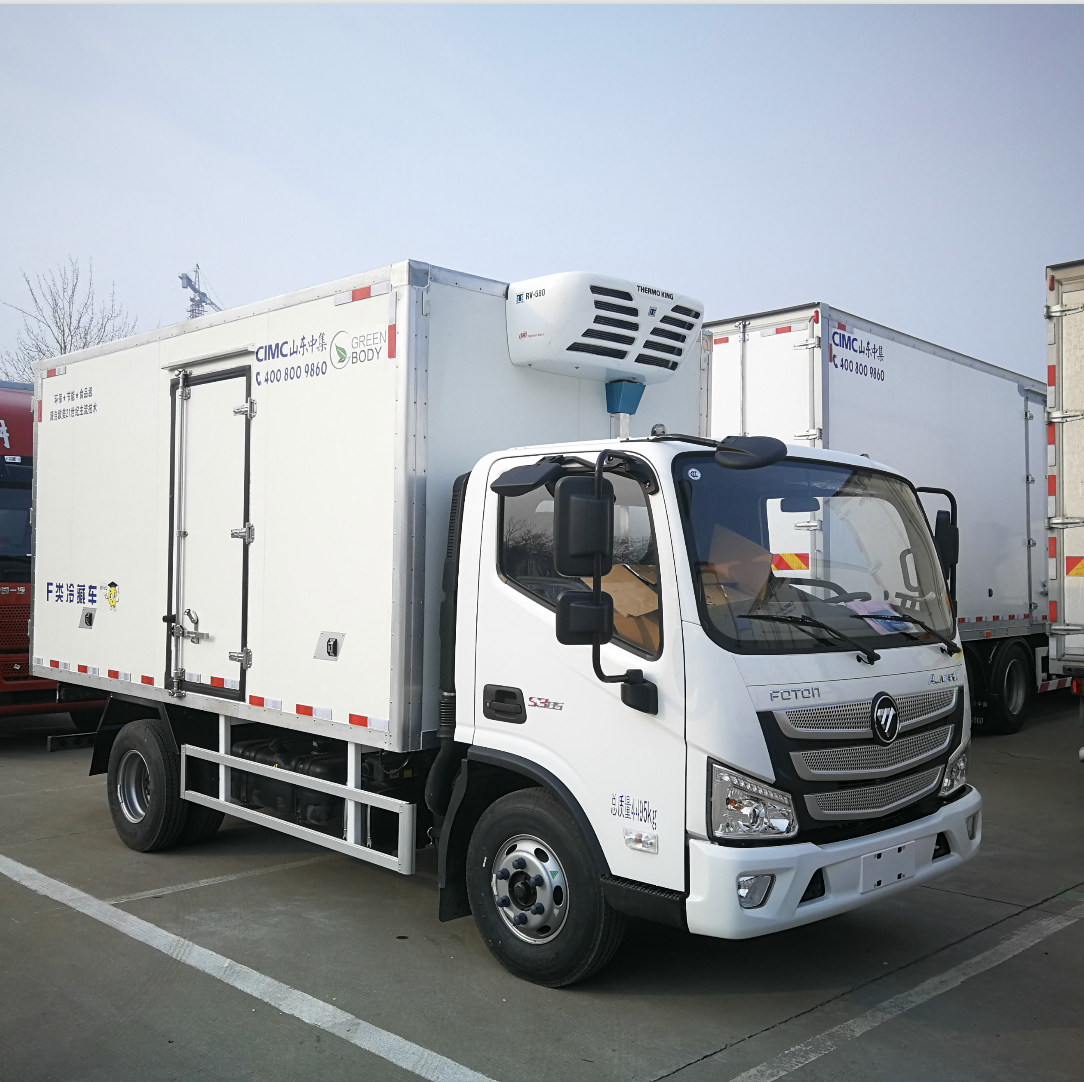

Foton Refrigerated Freezer truck

Vehicle model	AUMARK-S33
Cabin	Single row/W2060/left rudder
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	5890×2105×2400
	Wheel base(mm)	3360
Weight data	Curb weight(kg)	3210
	Gross vehicle weight（kg）	8275
	Persons in cab	3
Whole vehicle main performance	Max. speed（km/h）	105
ENGINE	Model	F3.8s3141
	Emissions standards	EuroⅢ
	Displacement（L）	3.76
	Rated Power（kw/rpm）	105
	Max torque （N.m/rpm）	450
Gearbox	Model	6S558
Front axle	Type/Mainreducetion ratio	3.6T
Rear axle	Type/Mainreducetion ratio	6T/5.286
Suspension	Front suspension/Leaf spring number	9
	Rear suspension/Leaf spring number	8+6
Brake system	Service brake	Drum pneumatic braking
	Parking brake	Brake gas brake
	Auxiliary brake	Engine exhaust brake
Wheels and tyre size	6+1/(L8.25R1614L)



voltage	24V
Packing case	Internal size	410020002000
	The material	Inside and outside: glass steel plate, sandwich: polyurethane board (≥40kg/m3)
	thickness	Front plate, back plate, top plate, bottom plate and left and right plate: more than 100mm
	The framework	The upper and lower frames and front columns are aluminum profiles or stainless steel
	Open the door form	Double rear door, passenger side single side door
The refrigeration unit	Brand and Specifications	American Cold King /SV400
	Refrigeration requirements	Minimum temperature: -18℃
	The optional features	No backup electricity, no heating
The attachment	Protective device	Side protection: comply with GB11567.1; Rear protection: according to GB11567.2
	Door lock and folding	Choose stainless steel material
	Lamps	Adopt LED seal lamp, lampshade need to glue seal
	rear pedal	Aluminum alloy pedal
	interior	Equipped with patterned aluminum bottom plate and patterned anti-collision plate (300mm height)
The special performance	Corrosion protection	The cargo box shall meet the salt spray test for more than 504 hours (including connecting bolts, welding points and anti-corrosion of paint surface)
	In the rain	The rainfall intensity is 5mm ~ 7mm/min, and there is no water inflow and leakage after 30min test.
	airtight	Under the condition that the pressure difference between inside and outside the compartment is 100± 10Pa, the air leakage ratio is less than or equal to 6.3L /h
	Heat insulation	The average wall temperature of the carriage is 293K ~ 298K, and the total heat transfer coefficient K is less than or equal to 0.5
