Tourfine the Best Trucks and Machinery Supplier

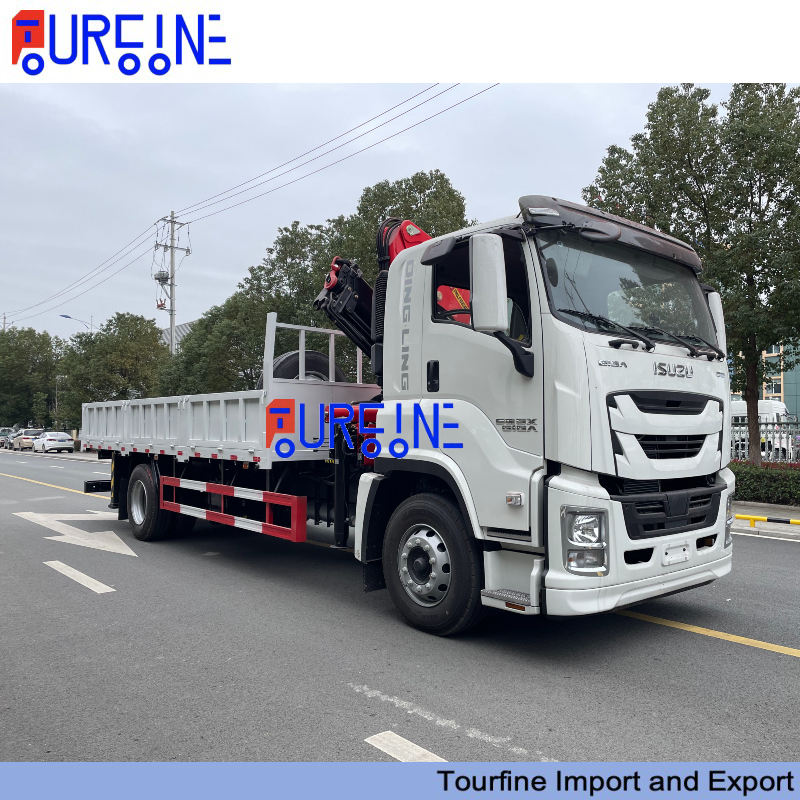

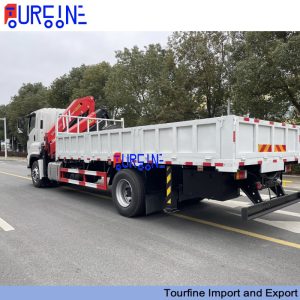

With xcmg 5T Knuckle Boom Crane Series
| Series: | FTR |
| Drive Type | 4×2 |
| Driver position | LHD |
| Overall dimension | 10000*2550*3500mm |
| GVW | 18000KG |
| Curb weight | 5700KG |
| Wheelbase | 5800mm |
| Engine Model | 4HK1-TCG60 |
| Engine Power | 205hp/150kw |
| Emission： | Euro VI/ (Cancel the post processing) |
| Fuel Type | Diesel |
| Front wheel track | 1960,2030,1990mm |
| Rear wheel track | 1855mm |
| Tire | 295/80R22.5 18PR |
| Cab | Single row and a berth Standard roof |
| Other configurations | Air brake |
| ABS system | |
| Power steering | |
| Air conditioning system | |
| Maintenance-free battery | |
| MP5 equipped with reversing camera | |
| Parking sensor radar |
Truck box and XCMG Crane parameters
Performance Parameters:
| Crane requirements
| Type/Position | Articulated boom/front |
| Crane | XCMG brand with Model SQZ105 | |
| Rotation angle | 360°Full rotation | |
| Sub frame | Material/plate thickness | Longitudinal beam: Q345/10mm |
| Cargo box | Size | 6200*2450*600mm |
| Max Lifting Capacity | KGS | 5000 |
| Max extension length | MM | 9920 |
| Max lifting height | MM | 12800 |
