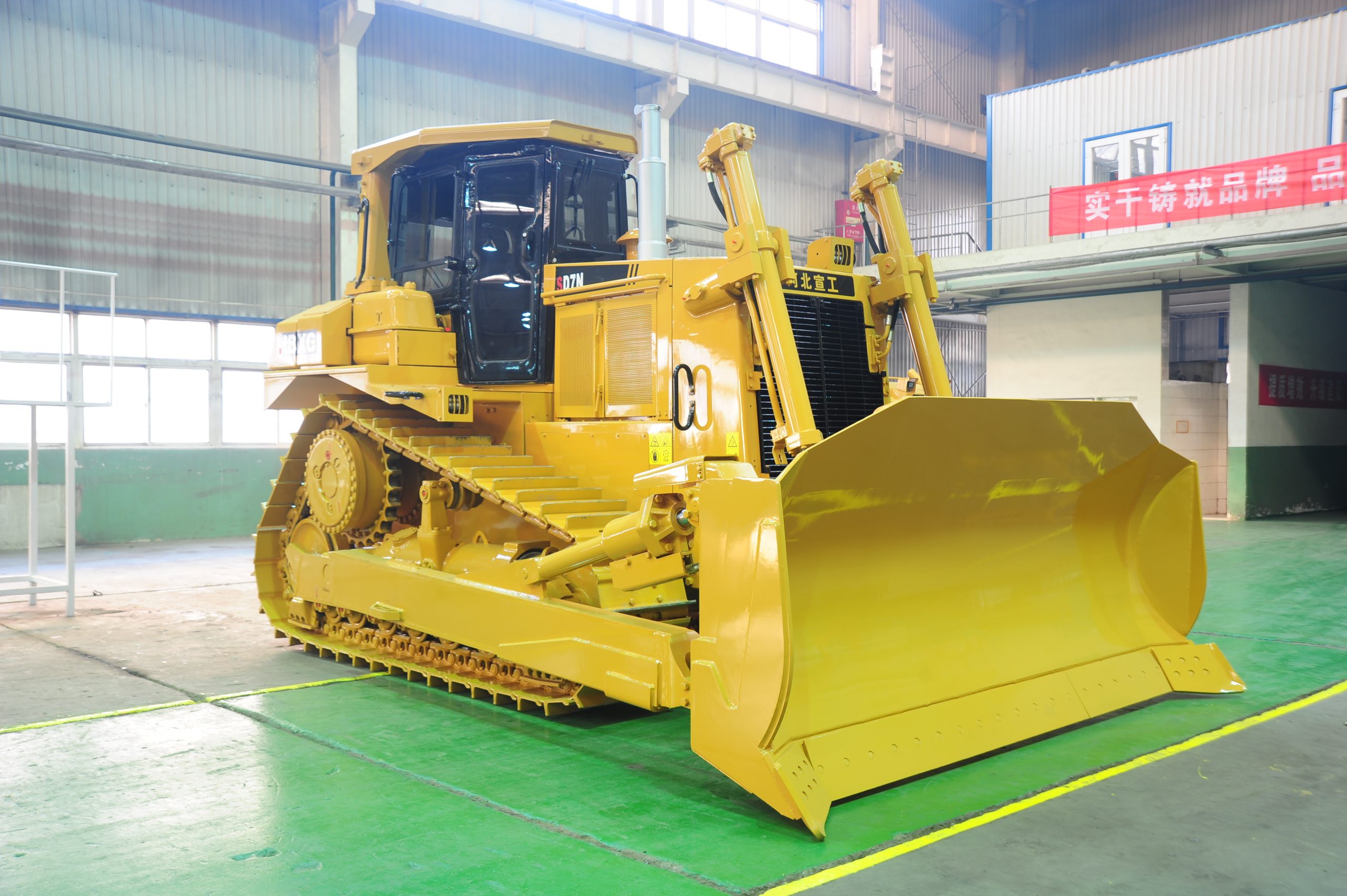

HBXG SD8N CAT Technology Bulldozer hot sale

HBXG SD8N CAT Technology Bulldozer hot sale

320HP, Chongqing Cummins NTA855-C360S10engine, elevated sprocket, hydraulic mechanical torque converter, power shift transmission,pilot control，tilting blade, rops cabin, air conditioner.

Send Inquiry Live Chat

Product Details
Machine Details
Successful Case
Packing & Delivery

Specification	SD8N bulldozer
Operating weight with tilting blade and single shank ripper	36800kg
Dimension with angle blade and three shanks ripper	793039403549mm
Engine	Chongqing Cummins NTA855-C360S10
Engine rated power/rated speed	257KW/2100rpm
Max torque	1509N.m/1400rpm
Max tracking force	290KN
Ground pressure	93kpa
Track gauge	3287mm
track shoes quantity	44
roller quantity	8
Carrier roller	1
Idler	2

Travel speed	FI: 0-3.5 FII: 0-6.2 FIII: 0-10.8BI: 0-4.7 BII: 0-8.1 BIII 0-13.9
Blade capacity	11.2M3
Blade width *hight	3940*1698mm
Blade cutting depth	582mm
Ripper digging depth	1135mm
Ripper lifting hight	635mm
Blade and ripper control	Pilot hydraulic control
Torque converter	Power external bypass hydraulic mechanical torque converter
Steering clutch	Modular design, Wet type, multi discs,hydraulic pressing, constant seperating
Braking	Modular design, Wet type, multi discs,hydraulic seperating, constant pressing
Final drive	Two stages planetary speed reduction, splash lubrication
