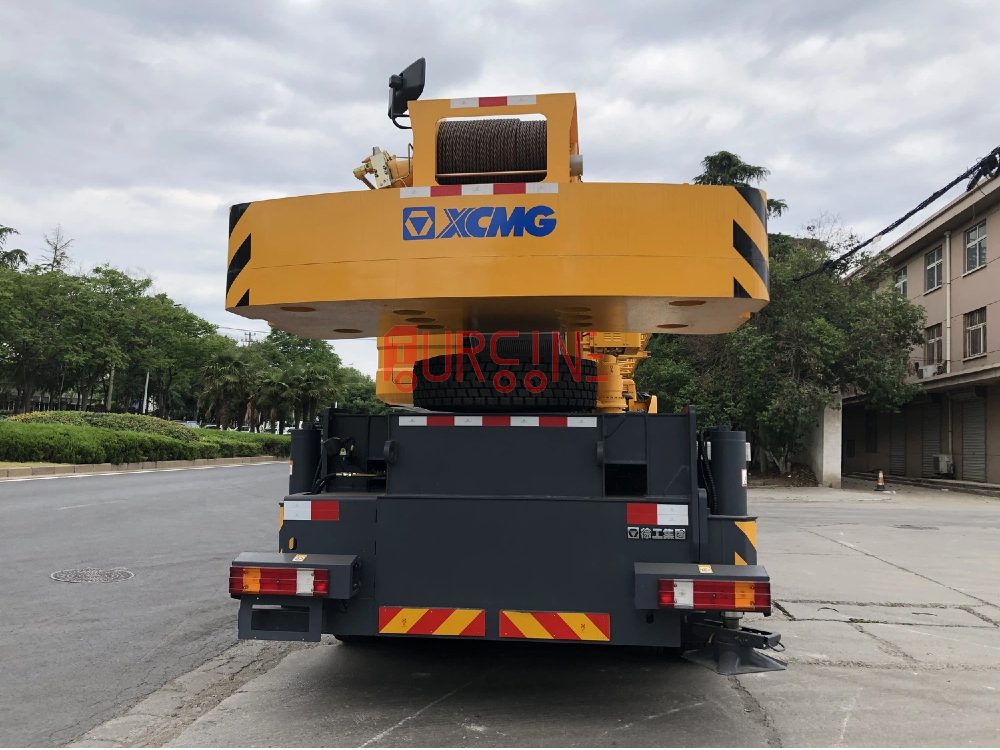

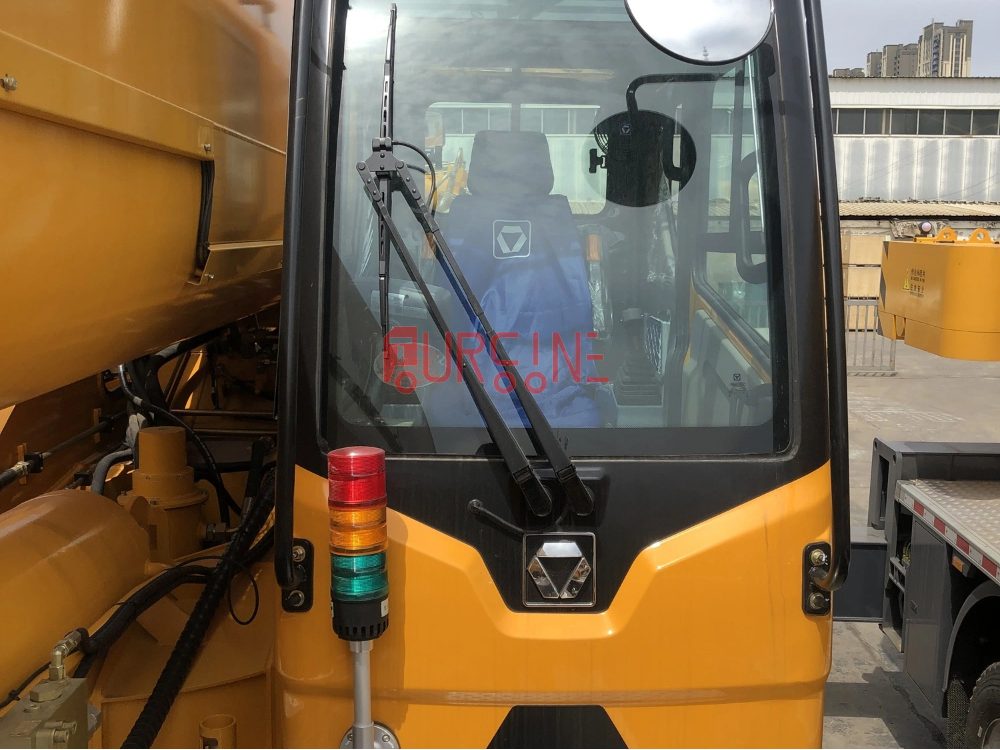

Hoisting Machinery 60ton Hydraulic Truck Crane QY60KH with Telescopic Boom

Brand: XCMG

Overall dimension:13500*2800*3510

Total weight:43600KG

Dimension	Unit	QY60HK
Overall length	mm	13500
Overall width	mm	2800
Overall height	mm	3510
Weight
Total weight in travel	kg	43600
Power
Engine model		WD615.338
Engine rated power	kW/(r/min)	268/2200
Engine rated torque	N.m/(r/min)	–
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	24
Min. ground clearance	mm	291
Approach angle	°	17.5
Departure angle	°	12
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	60
Min. rated working radius	m	3
Turning radius at turntable tail	m	3.55
Max. lifting torque	kN.m	1560
Base boom	m	11.2
Fully extended boom	m	42
Fully extended boom+ jib	m	58
Longitudinal outrigger span	m	5.81
Lateral outrigger span	m	6.7
