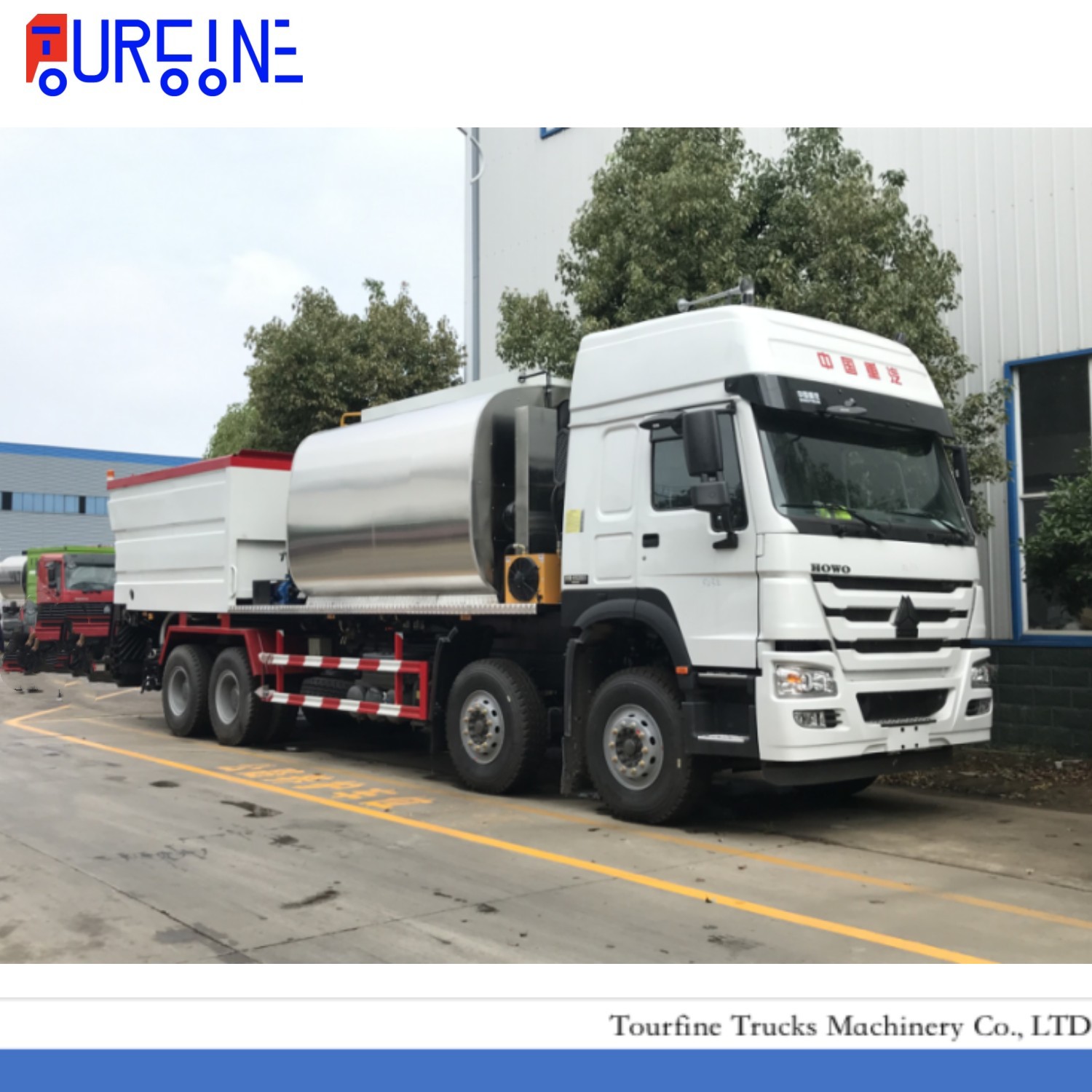

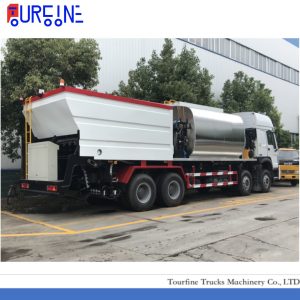

HOWO Synchronous Chip Sealer Truck crush stone Seal Spreader Truck for sale

Chassis Information
Item Name	SINOTRUK HOWO
Chassis brand	ZZ1317N4667E1H
Drive type	8X4
Dimension Parameter
Overall dimension (LWH) (mm)	1200025003860
Wheel base (mm)	1800+4600+1350
Wheel No.	4
Weight Parameter
GVW (kg)	31000
Kerb weight (kg)	21000
Front/Rear Axle load	7.5T / 16T
Engine Parameter
Model	D10.38-50
Manufacturer	SINOTRUK
Horsepower (hp)	380
Displacement / power (ml/kw)	9726/276
Engine type	6 cylinders in line, 4 stroke, water cooled, supercharged intercooled, high pressure common rail
Emission Standard	EURO 5
Transmission
Control type	Manual
Gear Shift	10 speed forward, 2 speed reverse
Tyre
Type	12.00R20
Tyre No.	12+1 spare tire
Cab
Type	HOWO high-roof cab with A/C, power steering
Synchronous Chip Sealer Upper Structure
Volume	8M³asphalt tank + 12M³ stone silo
Material of the asphalt tank	Inner 4mm carbon steel, medium 50mm rock wool, outer 1mm stainless steel
Spraying medium	emulsified asphalt, hot asphalt, modified asphalt
Asphalt Pump Model	QGB950 (high viscosity asphalt pump) 950L/min
Hydraulic system	Gear pump (Tianjin GPC4-50-20-16), automatic reversing valve and relief valve, asphalt pump hydraulic drive motor model 05-130-BD31; proportional valve EFRD-G03-160-5-31 (Taiwan)
Control mode	Touch screen computer intelligent control in cab, control system (Germany Siemens); 32pcs asphalt intelligent nozzles (one control one); 16pcs stone material door.
Heating mode	heat transfer oil automatic heating + double burner G20 (Italian imported).
Gasoline generator	HONDA 5.5KW
Spraying rate of the asphalt	0.25-4.0L/M²
Spraying width of the asphalt	4m
Spraying rate of the stone	adjustable
