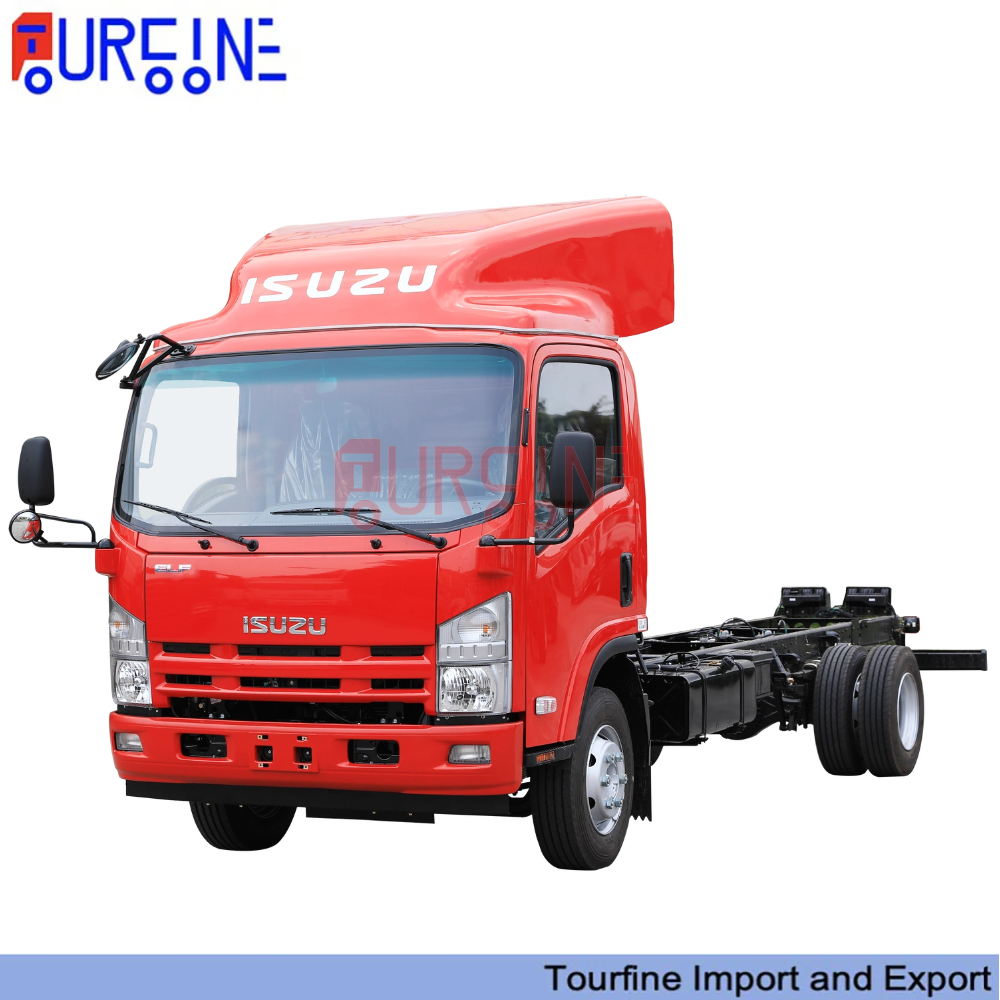

ISUZU 4×2 Wheel 6 Ton 700P Cargo Chassis Truck for Africa

  • High-efficiency engine
  • Adaptable to various road conditions
  • Low maintenance cost
  • Ideal for urban logistics and transportation
  • Flexible cargo box adaptation

  • Product Details
  • Porduct Parameters
  • Detail Photos
  • Packing & Delivery
  • Successful Case

The ISUZU 4×2 Wheel 6-ton 700P Cargo Truck Chassis is renowned for its excellent performance and reliable durability, making it widely used in urban logistics and transportation.

The vehicle is equipped with a high-efficiency engine, offering a 6-ton load capacity to ensure transport efficiency and cargo safety. The 4×2 wheel drive system provides enhanced stability, making it suitable for various road conditions. The 700P chassis design optimizes space usage, and its robust structure is built to withstand heavy-duty operations. The connection between the cargo body and chassis is designed for easy adaptation with different types of cargo boxes, meeting the diverse needs of customers.

With ISUZU’s superior manufacturing craftsmanship, this model guarantees long-term reliability and low maintenance costs, making it an ideal choice for the modern transportation industry.

Miss Shilo
Senior sales
Tel./hatsApp:0086 17813710458
Beiiing Tourfine lmport and Export co., Ltd
Web.:www.trucksmachine.com
Punctual One-Stop Shipping Service, Makes Business Easier with Us

车型
MODEL
QINGLING N series-700P
车型编码
MODEL CODE
QL1110ANKAQL1110ANLAQL1110ANMA
质量参数
Weight parameters(KG)
GVW(KG)105501055010550
整备质量(KG)
CHASSIS WEIGHT(KG)
431043004410
载重(KG)
PAY LOAD(KG)
604560555945
车身尺寸
Body size(mm)
轴距(mm)
WHEEL BASE(mm)
381541754475
整车长宽高
 L*W*H(mm)
7020*2380*26007450*2380*26007950*2380*2600
栏板货箱长宽高
CARGO L*W*H(mm)
5058*2300*4505508*2300*4506008*2300*450
驾驶室
CABIN
规格
TYPE
单排
SINGLE
单排
SINGLE
单排
SINGLE
座位数
SEATING CAPACITY
333
翻转驾驶室
TILTING CABIN
发动机
ENGINE
发动机型号
ENGINE MODEL
4HK1-TCG604HK1-TCG614HK1-TCG60
技术类型
Technology type
DOC+SCR+ASC+DPFDOC+SCR+ASC+DPFDOC+SCR+ASC+DPF
排放水平
EMISSION
国六国六国六
排量
DISPLACEMENT(CC)
519351935193
最大马力/转速
MAX POWER (KW/rpm)
151/2600139/2600151/2600
最大扭矩/转速
MAX TORQUE(Nm/rpm)
 647/1600507/1600~2600647/1600
变速箱
TM
变速箱型号
TRANSMISSION MODEL
MLDMLDMLD
变速箱档位
TRANSMISSION Gear
MT5MT5MT5
其他
Others
轮胎规格
TIRE
235/75R17.5 16PR,8.25R20 14PR235/75R17.5 16PR,8.25R20 14PR235/75R17.5 16PR,8.25R20 14PR
前后轴荷(KG)
FRONT AXLE CAPACITY
3500/70503500/70503500/7050
前悬/后悬(mm)
Front overhang/Rear overhang(mm)
1110/20951110/21651110/2365
前后轮距(mm)
Track(mm)
1680/16501680/16501680/1650
接近/离去角(°)
Approach/Departure Angle(°)
19/1719/1719/15
最高车速(KM/H)
Maximum speed(KM/H)
110110110
空调
AIR CONDITIONER
ABS
助力转向
POWER STEERING
收放机
Radio
免维护电池
Maintenance-free battery configuration
中控锁、电动窗
Central control lock, power window
