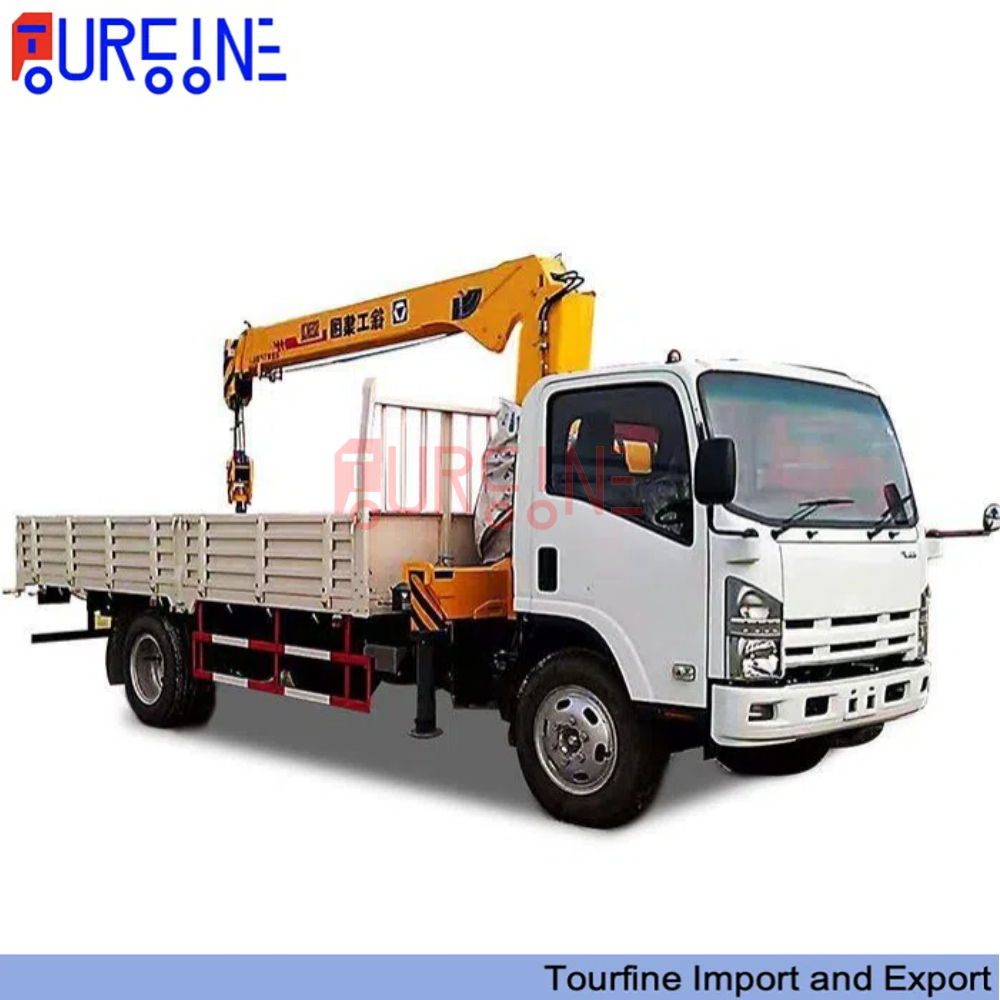

ISUZU 4x2 Wheel 700P Crane Truck - Tourfine the Best Trucks and Machinery Supplier

The ISUZU 4×2 Wheel 700P Crane Truck is equipped with a high-performance ISUZU engine, offering strong power and low fuel consumption.

It is ideal for medium and short-distance transport and lifting operations. With a compact structure and small turning radius, it is well-suited for urban and narrow work sites. The truck features a high-quality hydraulic crane arm for stable and safe lifting.

Comfortable cabin and easy operation make it a perfect choice for construction, logistics, and municipal industries.

Miss Shilo
Senior sales
Tel./hatsApp:0086 17813710458
Beiiing Tourfine lmport and Export co., Ltd
Web.:www.trucksmachine.com
Punctual One-Stop Shipping Service, Makes Business Easier with Us

Driving Type	Left Hand Drive
Chassis Dimension（LWH）	891221702410mm
GVW	10000Kg
Chassis Curb Weight	3510Kg
Axle No.:	2
Wheelbase	5200mm
F/R Track	1680/1650
Approaching Angle/Departure Angle(o)	20/14
Tire No.	7(including spare tire)
Tire	8.25R20 14PR
Color:	Optional
Max Speed（Km/h）	110Km/H
Engine
Engine System	4 Stroke, High Pressure Common Rail, Inter-cooling Turbo-Charged, 4 Cylinders
Emission Route	DPF
Model	4HK1-TC51
Fuel Type	Diesel Engine
Max output	140Kw
Horsepower：	192HP
Max Torque	510N.m/1600rpm
Emission Standard	Euro V
Displacement:	5193ml
Transmission:
Model:	MLD-6Q
Type	Manual
Forward/Reverse	6F/1R
Brake System:
Service Brake	Dual Circuit Compressed Air Brake
Parking Brake	Spring Energy, Compressed Air Operating on Rear Wheels
Auxiliary System	Engine Exhaust Brake
Electrical System
Battery	2*12-70Ah
Alternator	28V-70Ah
Starter	24V/7.5Kw
Crane Body
Max. Lifting Capacity	5000Kg
Max. Lifting Moment	12.5T.M
Recommend Power	18Kw
Max. Oil Flow of Hydraulic System	32L/min
Max. Pressure of Hydraulic System	20Mpa
Oil Tank Capacity	90L
Installation Space	900mm
Rotation Angle	Continuous rotatory
Cab	Single-Row Cab with Air Conditioner
Other Equipment:	Power Steering, ABS, Maintenance Free Battery, Retro-reflective marking
