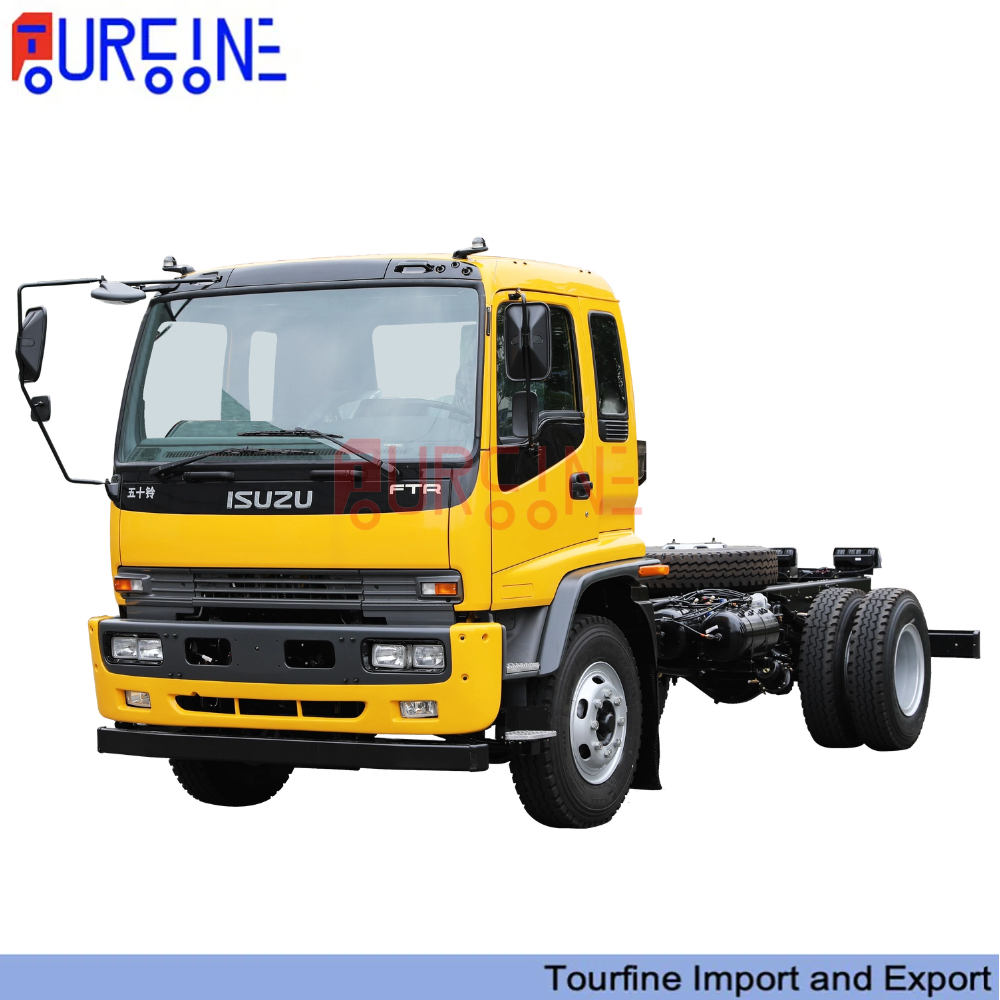

ISUZU-F 4x2 Wheel 10 Ton Light Duty Commercial Truck Chassis Truck - Tourfine the Best Trucks and Machinery Supplier

The ISUZU-F 4×2 Wheel 10 Ton Light Duty Commercial Truck Chassis is a high-efficiency, durable vehicle designed for urban delivery and light transport needs.

With a maximum payload capacity of 10 tons, it is ideal for cargo transport and logistics tasks. Powered by ISUZU’s advanced engine technology, it offers strong performance and excellent fuel efficiency, ensuring stable operation under various conditions. The 4×2 drivetrain provides excellent maneuverability on city roads, offering high flexibility and comfort for long drives.

The ISUZU-F 10-ton light-duty chassis truck offers a high level of cost-effectiveness and reliability, making it an ideal transport solution for the logistics industry.

Miss Shilo
Senior sales
Tel./hatsApp:0086 17813710458
Beiiing Tourfine lmport and Export co., Ltd
Web.:www.trucksmachine.com
Punctual One-Stop Shipping Service, Makes Business Easier with Us

MODEL CODE		QL1180JQFR	QL1180EQFR	QL1250FTFZ	QL1310FVFH
Weight parameters	GVW(KG)	18000	18000	25000	31000
	CHASSIS WEIGHT(KG)	7155	7980	14270	19070
	PAY LOAD(KG)	10650	9890	10600	11800
Body size（mm）	WHEEL BASE（mm)	5550	5550	5700+1370	1850+4575+1370
	LWH(mm)	900025303000	900025403150	1194025403150	1200025503150
	CARGO LWH(mm)	66502460600	66202430600	96002430600	96002430600
CABIN	TYPE	single with bed	STANDARD	STANDARD	标顶 STANDARD
	SEATING CAPACITY	3	2	2	2
	TILTING CABIN	●	●	●	●
ENGINE	ENGINE MODEL	4HK1-TCG60	6HK1-TCG61	6HK1-TCG60	6HK1-TCG60
	Technology type	DOC+SCR+ASC+DPF	DOC+SCR+ASC+DPF	DOC+SCR+ASC+DPF	DOC+SCR+ASC+DPF
	EMISSION	Euro Ⅵ	Euro Ⅵ	Euro Ⅵ	Euro Ⅵ
	DISPLACEMENT(CC)	5193	7790	7790	7790
	MAX POWER (KW/rpm)	151/2600	177/2400	221/2400	221/2400
	MAX TORQUE(Nm/rpm）	647/1600	848/1400	998/1400	998/1400
TM	TRANSMISSION MODEL	MLD	MLD	MLD	MLD
TM	TRANSMISSION Gear	MT5	MT5	MT5	MT5
Others	TIRE	295/80R22.5 16PR,295/80R22.5 18PR	295/80R22.5 16PR	295/80R22.5 18PR	295/80R22.5 18PR
	FRONT AXLE CAPACITY	6500/11500	6500/11500	7000/18000	6500/6500/18000
	Front overhang/Rear overhang(mm)	1335/2115	1370/2080	1370/3500	1370/2835
	Track（mm)	1960/1855	2060/1855	2060/1855	2060/1855
	Approach/Departure Angle(°)	15/12	17/12	17/7	17/9
	Maximum speed(KM/H)	105	105	105	105
	AIR CONDITIONER	●	●	●	●
	ABS	●	●	●	●
	POWER STEERING	●	●	●	●
	Radio	●	●	●	●
	Maintenance-free battery configuration	●	●	●	●
	Central control lock, power window	◎	◎	◎	◎
	Automatic brake clearance adjustment device	◎	◎	◎	◎
