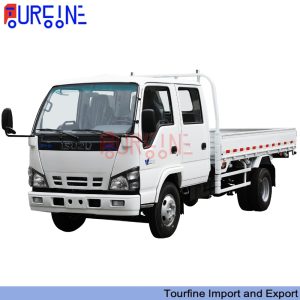

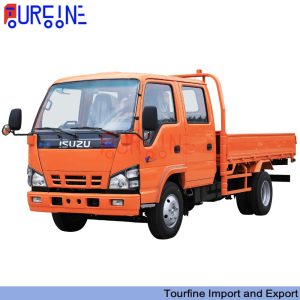

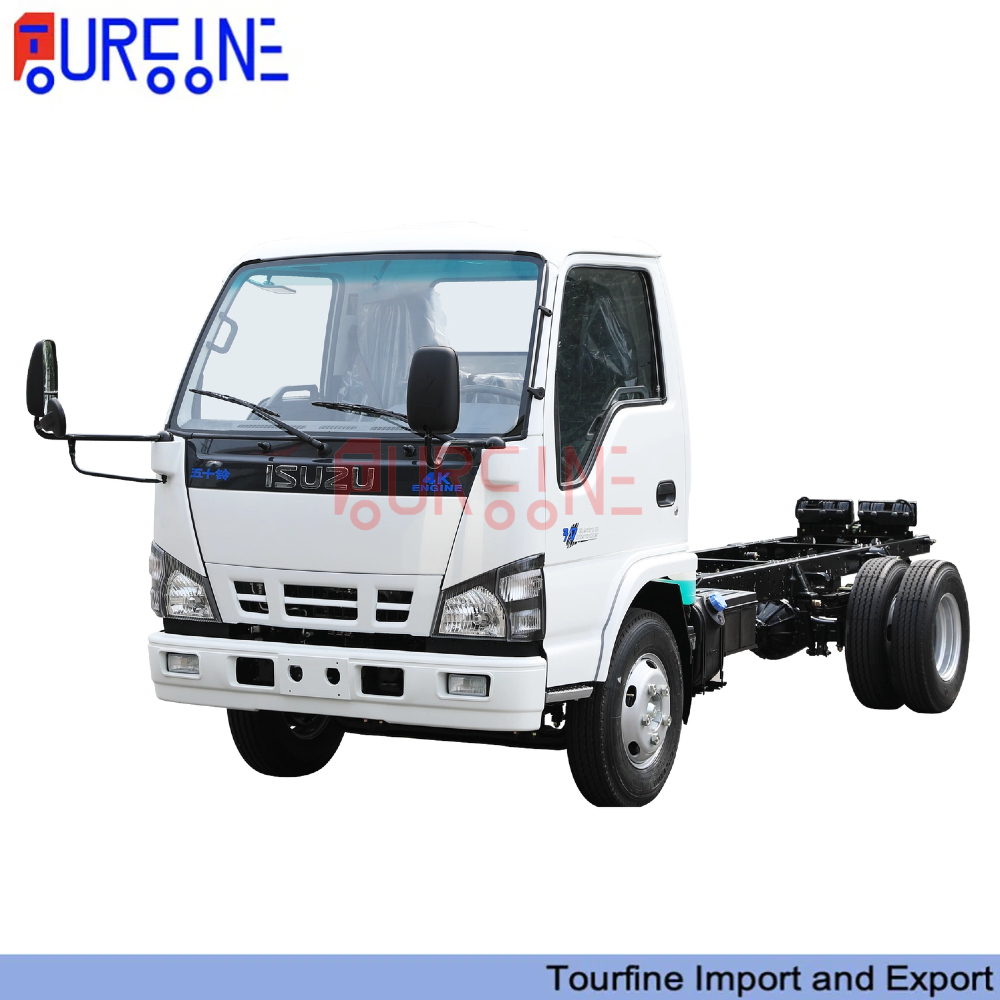

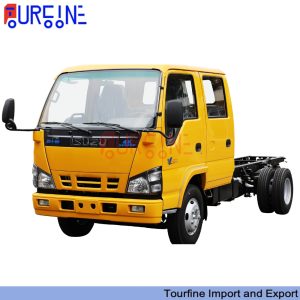

ISUZU Motor Vehicle 1.5 Ton 600P Chassis Truck for Cargo Transportation

The ISUZU 1.5-ton 600P Chassis Truck is an efficient urban cargo transportation solution featuring a turbocharged diesel engine that delivers robust power with exceptional fuel efficiency, complying with China VI emission standards for optimal eco-performance.

Its reinforced chassis structure and optimized suspension system ensure stable operation under 1.5-ton payloads, effortlessly navigating complex urban road conditions. The ergonomic cabin integrates a multi-function steering wheel, digital dashboard, and climate control system for enhanced driving comfort. Safety is prioritized with standard ABS and EBD systems ensuring all-weather protection. The corrosion-resistant galvanized steel cargo body offers flexible van/flatbed configurations, ideal for supermarket deliveries, construction material transport, and express logistics.

Inheriting ISUZU’s century-long engineering excellence, this low-maintenance vehicle boasts high reliability, low operational costs, and strong residual value, making it the perfect profit-generating partner for SMEs and independent operators.

Miss Shilo
Senior sales
Tel./hatsApp:0086 17813710458
Beiiing Tourfine lmport and Export co., Ltd
Web.:www.trucksmachine.com
Punctual One-Stop Shipping Service, Makes Business Easier with Us

车型编码 MODEL CODE		QL1040BUEW	QL1040BUFA	QL1040BUHA
质量参数（KG） Weight parameters	GVW(KG)	3660	4260	4350
	整备质量（KG） CHASSIS WEIGHT(KG)	2090	2380	2470
	载重（KG） PAY LOAD(KG)	1245	1750	1750
车身尺寸（mm） Body size（mm）	轴距（mm） WHEEL BASE（mm)	2490	2765	3360
	整车长宽高 LWH(mm)	477516952160	528018802300	595018802300
	栏板货箱长宽高 CARGO LWH(mm)	20651600415	36001790380	42751790380
驾驶室 CABIN	规格 TYPE	双排 DOUBLE CAB	单排 SINGLE	单排 SINGLE
	座位数 SEATING CAPACITY	2+3	2	2
	翻转驾驶室 TILTING CABIN	——	◎	◎
发动机 ENGINE	发动机型号 ENGINE MODEL	4KH1CN6LB	4KH1CN6LB	4KH1CN6LB
	技术类型 Technology type	DOC+SCR+ASC+DPF	DOC+SCR+ASC+DPF	DOC+SCR+ASC+DPF
	排放水平 EMISSION	Euro VI	Euro VI	Euro VI
	排量 DISPLACEMENT(CC)	2999	2999	2999
	最大马力/转速 MAX POWER (KW/rpm)	88/2900	88/2900	88/2900
	最大扭矩/转速 MAX TORQUE(Nm/rpm）	290/1500-2900	290/1500-2900	290/1500-2900
变速箱 TM	变速箱型号 TRANSMISSION MODEL	MSB	MSB	MSB
变速箱 TM	变速箱档位 TRANSMISSION Gear	MT5	MT5	MT5
其他 Others	轮胎规格 TIRE	7.00R15 10PR	7.00R16 8PR	7.00R16LT 8PR
	前后轴荷（KG） FRONT AXLE CAPACITY	1600/2060	1600/2660	1700/2650
	前悬/后悬(mm) Front overhang/Rear overhang(mm)	1015/1270	1015/1500	1015/1575
	前后轮距（mm) Track（mm)	1401/1395	1377,1504/1425	1377,1504/1425,1525
	燃油油箱（L） FUEL TANK CAPACITY(L)
	接近/离去角(°) Approach/Departure Angle(°)	24/20	24/16	24/16
	最高车速（KM/H） Maximum speed(KM/H)	90	105	105
	空调 AIR CONDITIONER	●	●	●
	ABS	●	●	●
	助力转向 POWER STEERING	●	●	●
	收放机 Radio	●	●	●
	免维护电池 Maintenance-free battery configuration	●	●	●
	中控锁、电动窗 Central control lock, power window	◎	◎	◎
	倒车雷达 Reversing radar	◎	◎	◎
