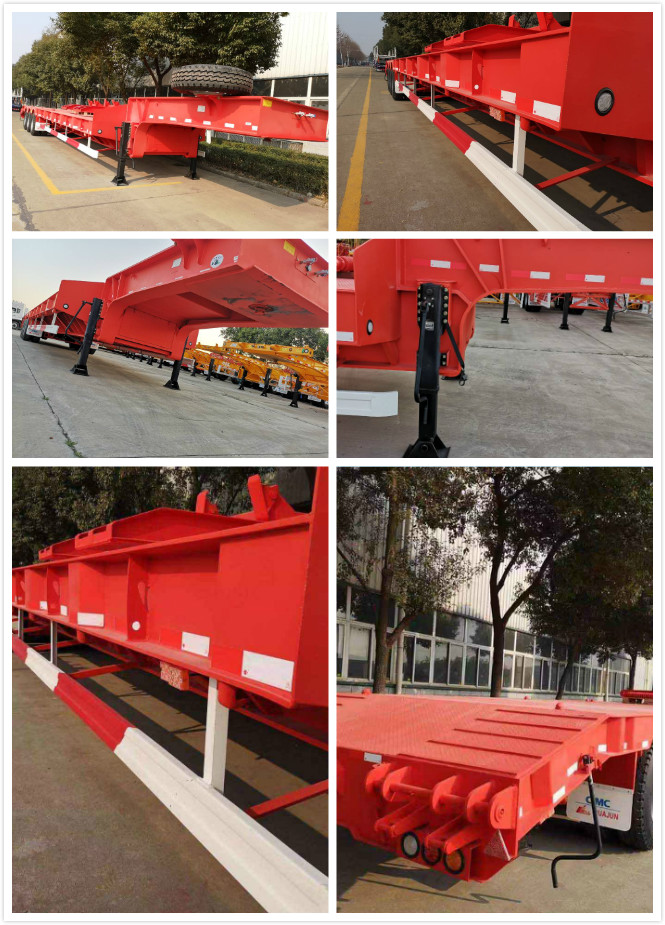

Low Bed Semi Trailer for Construction Machinery

item	unit	quantity	notice
Overall size			13700length*3000width, usable platform length about 9000mm loading height will be according to your tractor’s parameters detail according to the confirmed drawing
axle	piece	3	16T FUWA
tyre	piece	13	12.00R24, with a spare tire
rim	piece	13	8.5-24
leaf spring	piece	6	100mm width10 pcs16mm thickness
braking system	set		2 line air braking system with air tank ,emergency relay valve, braking chambers and mechanical slack adjusters.
electrical system	set	1	24 volt electrical system.7 pin electrical connector.parking .stop, reverse,number plate and indicator lights.rear lights conform to European standard,rear front and side reflectors
suspension	set	3	CIMC HUAJUN reinforced type
relay valve	whole vehicle	2	WABCO
landing gear	pair	1	JOST A400, one side operation
KINGPIN 3.5″	piece	1	JOST,KZ1016, bolted type
tie-in	piece	4	haldex
chamber	piece	6	T30/30 2pcs, T30 4pcs
floor			4.5MM checkered type
upper and lower wing plates			16/20mm,width250mm, using the highly quality Q345 steel,
main beam			550mm,webplate:10mm using the highly quality Q345 steel
side beam			30# channel steel
cross beam			12# channel steel
ramp			width: 800mm, 4.5mm checkered plate will be welded, then antiskid bar, double spring reinforced type, length depends on the drawing
reflectors			Red triangle reflectors at the rear of the trailer and on side
Shotblasting and paint			Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT), THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. Seawater proofed,waxed
tool box		2	according to our design
spare tyre carrier		1	according to our design
color			according to customer’s option
