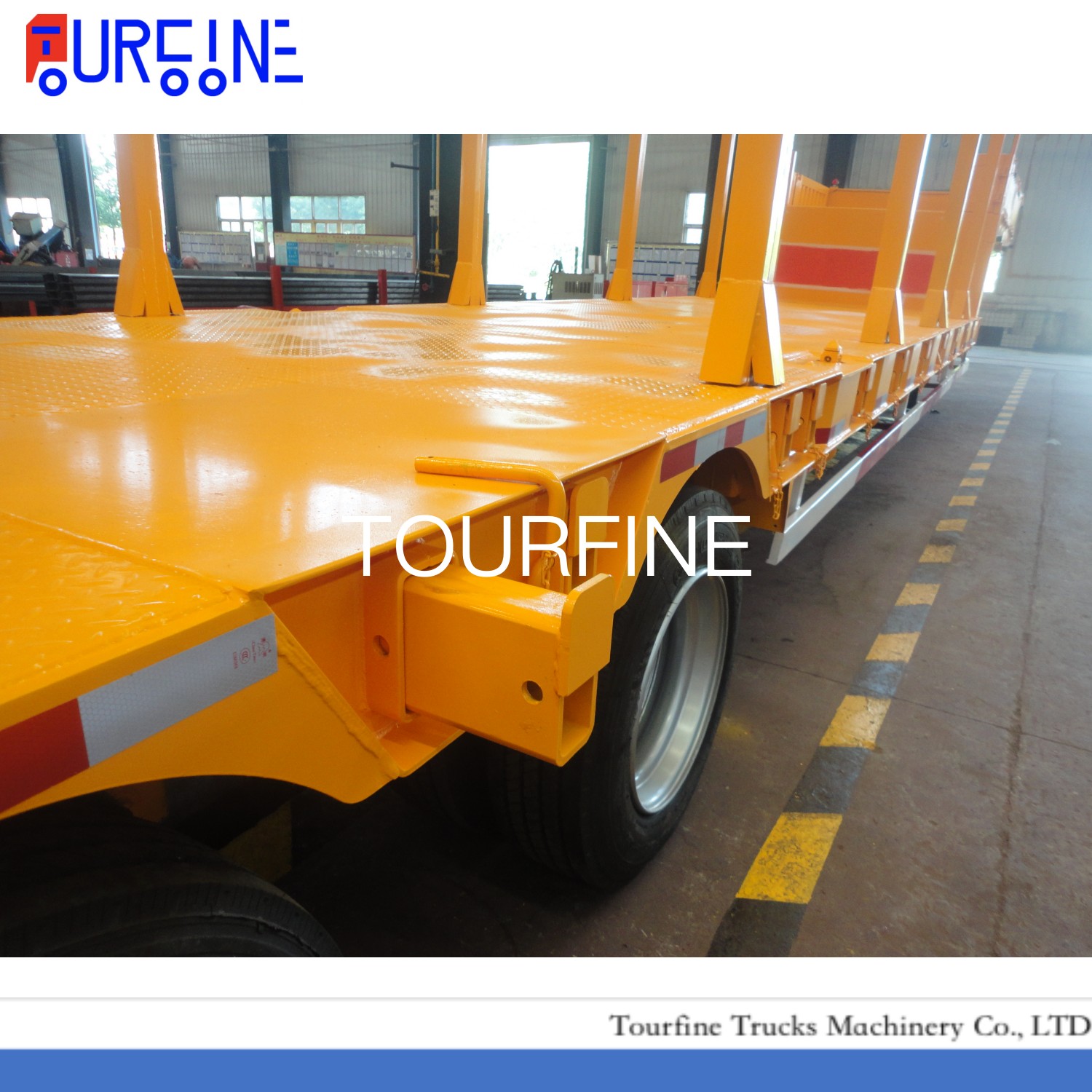

Multifuctional trailer loading bulk cargos container construction machienry Low Bed Semitrailer

Tare Weight	About 8.5-13T
Dimension	13000mm3000mm-3500mm1650mm (Size can be choose freely)
Loading Capacity (T)	40T-100T
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	6.5-20/7.5-20/8.00-20/8.5-20 (Special for export market)
Tire	8.25R20/10.00R20/11.00R20/12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (Special for export market)
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 (Special for export market)
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam	16mm -30mm channel steel ( Material is Q235steel ).
Bottom Platform	3-6mm thickness diamond steel plate
Ladder	Manual or Hydraulic type
Gooseneck	For choose
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); one piece of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light (Special for export market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.
