Main technical parameter

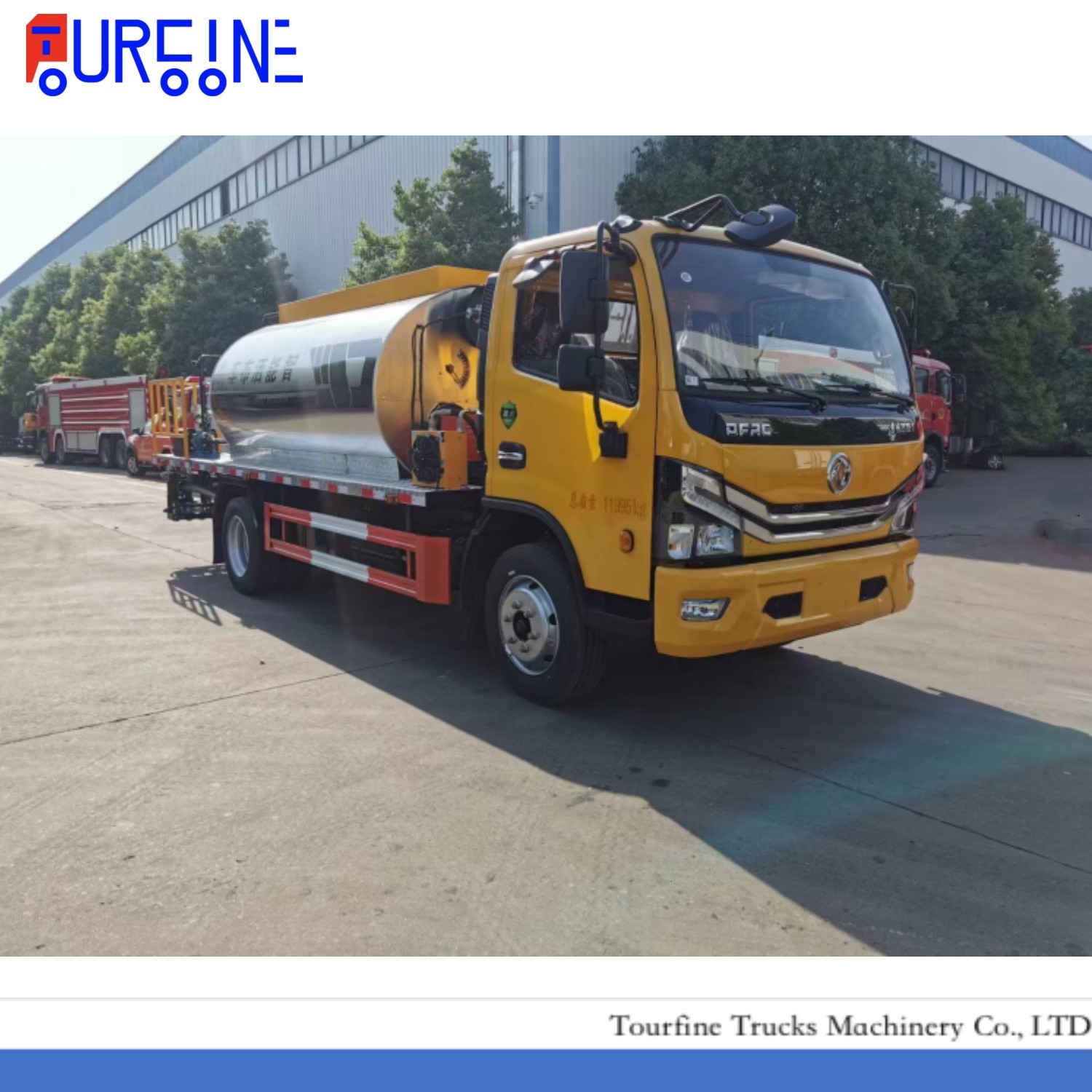

| Name | Automatic asphalt spraye |
| Model | ZSL503 |
| Dimension (LxWxHmm) | 7350×2230×2580 |
| Asphalt tank capacity (L) | 5000L |
| Chassis model | EQ1090TJ20D3 or EQ1125SJ8CDC |
| Chassis manufacturer
| Dognfeng |
| Vehicle type | Flat 4×2 rear driver |
| Tire model | 8.25R20 |
| Approach /departure angle | 21°/8° |
| Engine power （kw/r/min） | 95KW/ (3200RPM）or 125KW/3500RMP |
| Fuel | Diesel |
| Engine model and type | YC4FA130-50 OR CY4SK361 |
| Inline 4 cylinder 4 stroke pressurization | |
| Emission standard | Euro 5 OR Euro 6 |
| Passenger | 2 |
| Max. Speed | 90 |
| Max. Mass | 8105 |
| Rate loading | 4700 |
| Working speed （km/h） | 1.2～6.5 |
| Asphalt pump displacement （L/r） | 0.45 |
| Max. Spraying width （m） | 4.5 (6meters can be chose) |
| Asphalt spraying volume （L/m2） | 0.25~3.5 |
| Drive system | Hydraulic |
| Max. Pressure of the hydraulic system (MPa)
| 15 |
| Asphalt pump heating preservation method
| Hot oil |
| Cleaning method | High air pressure and diesel |
