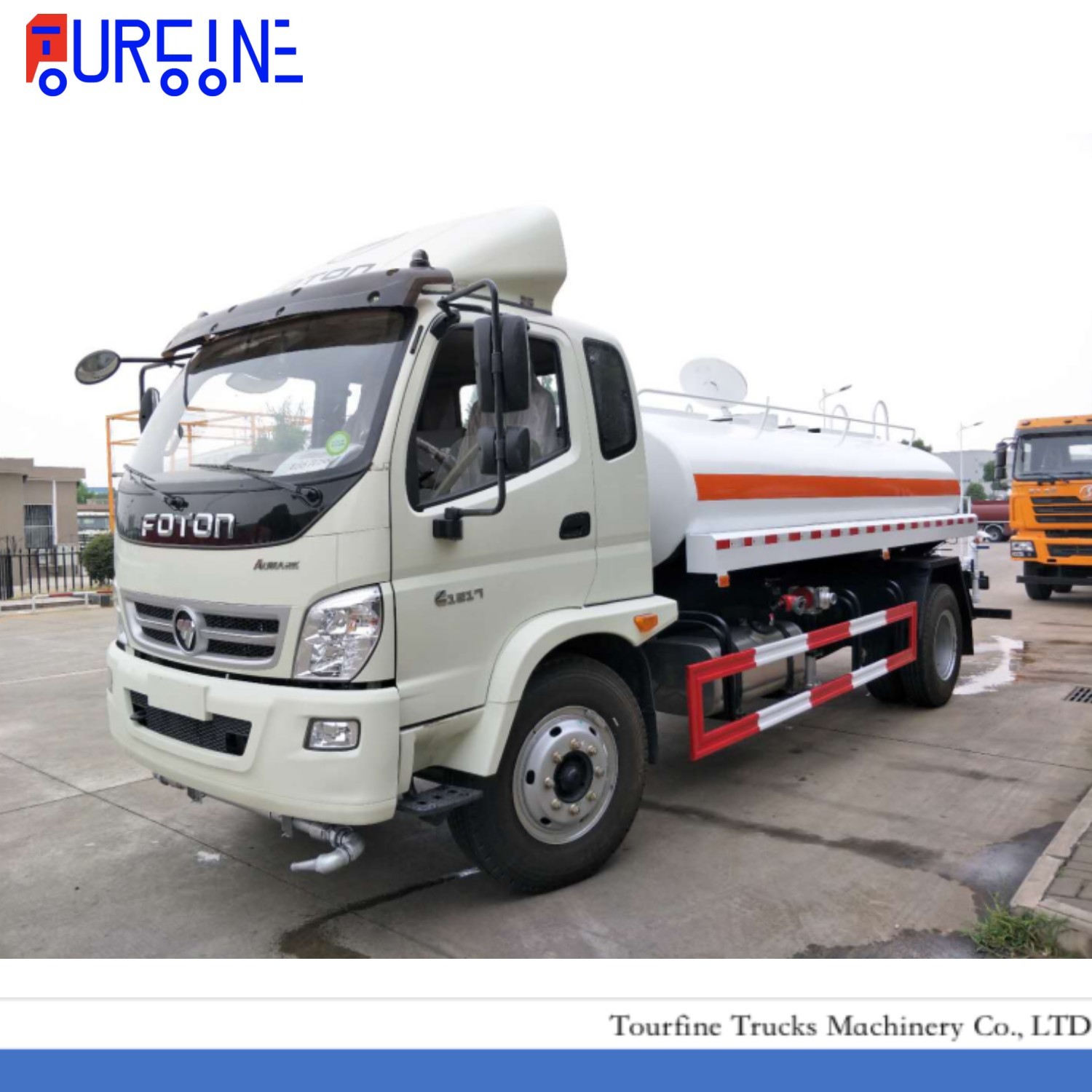

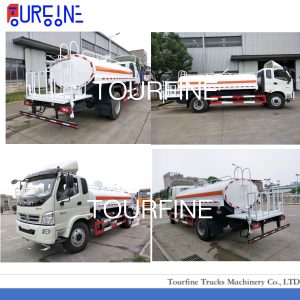

New FOTON 5000L Water Tanker Truck for sale

Vehicle model		AUMARK-T43
Cabin		Single row/W1800/left rudder
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	5975×1925×2230
Whole vehicle main dimensions	Wheel base(mm)	3360
Weight data	Curb weight(kg)	2300
	Gross vehicle weight（kg）	5500
	Persons in cab	3
Whole vehicle main performance	Max. speed（km/h）	95
ENGINE	Model	4J28TC
	Emissions standards	EuroⅣ
	Displacement（L）	2.771
	Rated Power（kw/rpm）	81
	Max torque （N.m/rpm）	280
Gearbox	Model	6T100
Front axle	Type/Mainreducetion ratio	2.2T
Rear axle	Type/Mainreducetion ratio	5.0T/5.375
Suspension	Front suspension/Leaf spring number	3+1
Suspension	Rear suspension/Leaf spring number	6+7
Brake system	Service brake	Drum pneumatic braking
	Parking brake	Brake gas brake
	Auxiliary brake	Engine exhaust brake
Wheels and tyre size		6+1( 7.00R16)

Technical parameters of sprinkler

tank	volume	5m³
	Dimensions	Sectional shape: oval
	Tank material and thickness	Material and thickness of tank body: Q235B carbon steel, 4mm
	Wave breaker	Quantity: 1; Material thickness: Q235B carbon steel, thickness 4mm
	Manhole cover	Quantity: 1 piece; diameter: 500mm; material; aluminum alloy six-jaw can mouth
	Discharge port	1 self-draining port at the tail of the tank; 1 pressure drain on one side of the tank; 1 fire hydrant interface;
	Climb the ladder	Install independent climbing ladder at the end of the tank
	Top guard	Install hand guards on both sides of the tank top
	Level gauge	The front part of the tank, plexiglass
	Tube box	Number: 2; Installation location: 1 each on the left and right sides of the tank Water diversion pipe: each pipe box has a built-in water diversion pipe, the length of the tank body is equal, with stainless steel male and female end joints
Water pump	model	Hangzhou Weilong 65QZ-40/45N stainless steel self-priming sprinkler pump
	Limited Date	40m³/h
	lift	45m
	Water absorption depth	6.5m
Spraying device	control method	manual
	Spray type	Front flush, side spray, back spray
	Sprinkler width	not lower than 14m
	Spray gun range	not lower than 28m
Work platform	position	Rear of the tank
