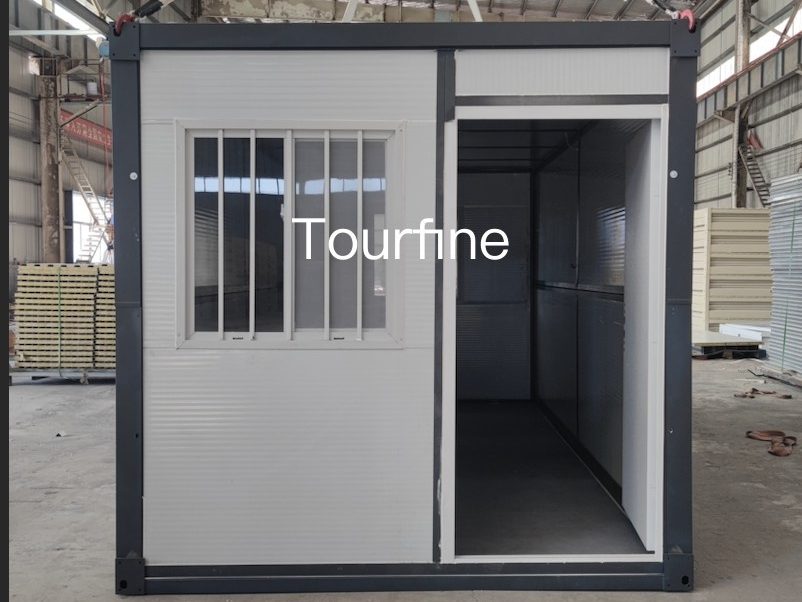

Portable Tiny Home 20FT 40FT Expandable Steel Container House

Introducing the revolutionary Folding Room, a testament to innovation and independent research with proprietary intellectual property rights. This cutting-edge product has been rigorously tested and certified by the national Testing center, ensuring top-tier performance.
This remarkable product excels in key areas such as thermal insulation and flame retardancy, setting a new standard for safety and comfort.
Engineered to be waterproof, cold-resistant, and boasting impeccable water density and air tightness, it is designed to endure and adapt. Plus, it offers the convenience of being repeatedly folded and fully recyclable.
Meeting high standards for emergency living, this product significantly reduces air pollution and minimizes industrial waste, reflecting our commitment to a sustainable future.

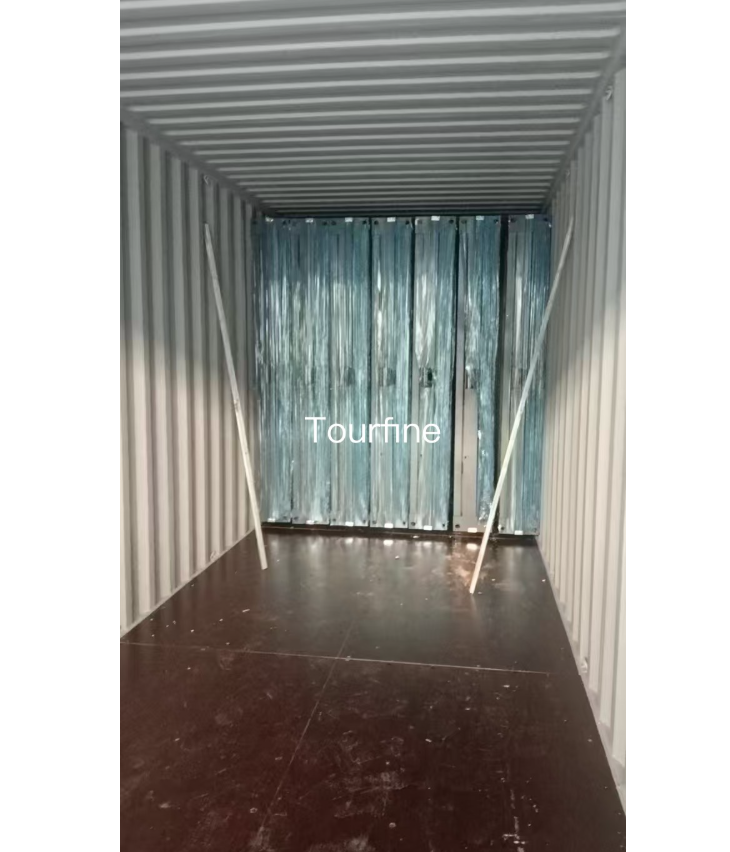

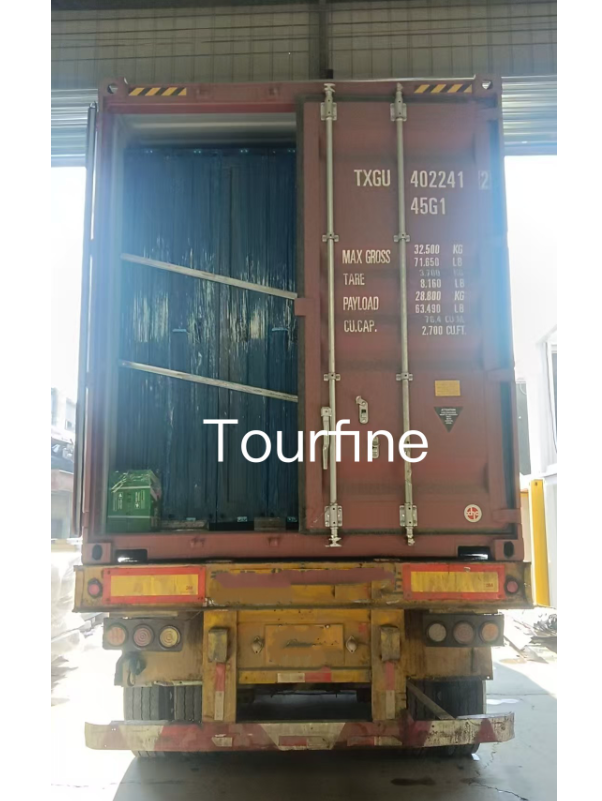

Shipping

Each 40HQ fit 14Sets

Type

Specification

Material

Dimension

Thickness(mm)

Unit

Qty

Fundamental Information

Exterior Size(mm)

5800*2460*2430

Interior Size(mm)

5640*2320*2380

Folded Size(mm)

5800*2460*320

Weight(KG)

1000.00

Frame Structure

Ceiling Structure

Q235 Rectangular square steel pipe

30*50*2.32m

1.50

PCS

Special-shaped parts

1.50

PCS

Galvanized flat iron

2.00

PCS

Galvanized square tube

60*60*5.8m

1.50

PCS

EPS panel

#50

0.40

PCS

Panel of 6 Meter

Type-L Steel board

1.15m

2.00

Block

1.165m

2.00

Block

Galvanized P type tube

30*55*5.8m

1.5

PCS

Galvanized P type tube

1080mm

1.5

PCS

Hinge

High Strength

PCS

Wall pannel

1080mm*2.845m

0.25

Block

Color steel buckle groove

1080mm

0.40

PCS

Galvanized buckle groove

1080mm

1.20

PCS

D type adhesive strip

5.8m

PCS

Panel of 3 Meter

Galvanized P type tube

2.43m

1.50

PCS

2.31m

1.50

PCS

Galvanized buckle groove

2.45

1.30

PCS

860

1.30

PCS

Wall pannel

950

0.25

Meter

9.66

Galvanized angle

50#

1.30

Meter

20.41

Window

925*930

0.40

PCS

Door

970*1980

Quality anti-theft door

PCS

Adhesive strip

Sealed dust-prevention

Meter

21.32

Bottom Structure

Customized Galvanized square steel pipe

60*120*5.8m

1.50

PCS

60*60*2.32m

1.50

PCS

Hinge

High Strength

PCS

Q235 Rectangular square steel pipe

35*35*2.32m

1.50

PCS

Floor

1125*2315

15.00

Block

Ceiling of house

Integral frame paint

Glass magnesium flooring

Wall Panels

6 meter pannel

50mm Sandwich board 0.25mm+ Flame retardant EPS (volume weight 50kg)+0.25mm

3 meter pannel

70mm Sandwich board 0.25mm+ Flame retardant EPS(volume weight 50kg)+0.25mm

Floors

Fiber reinforced calcium silicate board

Electricity

Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products meet CE certification. Connect the circuit according to the circuit engineering specification, indoor: 2.5² national standard annealed copper wire, 1 20A circuit breaker, 1 three-hole air-conditioning socket, 2.5² socket incoming line, 1 five-hole single-open socket, 1 five-hole socket , 1 LED light.

Anti-theft Door

High-quality anti-theft door (warm white) size: 970mm*1980mm

Windows

925*930 single glass sliding window plastic steel window, glass thickness 4mm (warm white)/
925*930 double glass sliding window plastic steel window, glass thickness 4mm (warm white)

Roof weighing

1.0KN/m²

Aisle weighing

4.2KN/m²

Wall side Pressure

0.5KN/m²

Fire proof level

Level A

Seismic rating

Level 8

Wind resistance level

Level 10
