| NAME | DESCRIPTION |

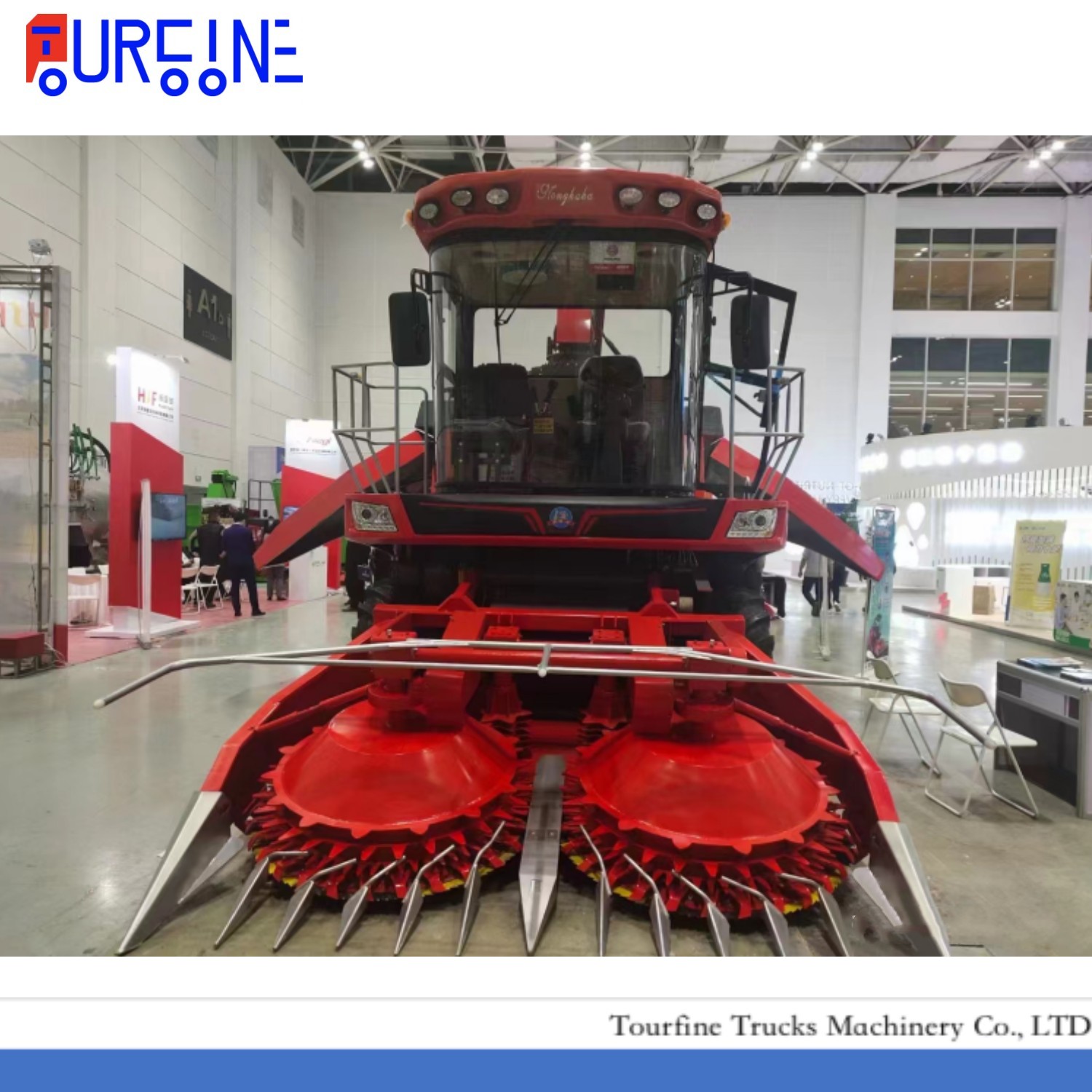

| Equipment Name | FORAGE HARVESTER (self-propelled) |
| Model | 4QZ-18A (Brand: MUZE)， 4WD |
| Engine rated power | 280kw (380 horse power)/430HP |
| Dimension | 8364x3470x5176mm |
| Operation width | 3270mm |
| Working efficiency | Approx. 1 hectare/hour |
| Cutting height | ≤150mm |
| Feeding capacity | 18 kg/s |
| Weight | 9810kg |
| Min turning radius | |
| Wheel track | Guide wheel: 1920mm, Driving wheel: 2280 |
| Wheel model | Driving wheel: 19.5L-24 Air pressure:0.25～0.3MPa Guide wheel: 10.0/75-15.3 Air pressure: 0.25～0.3MPa |
| Shaft distance | 2480mm |
| Mini ground clearance | 300mm |
| Bridge form (Selft-propelled) | Normal type |
| Cutting head height arrange | 120~830mm |
| Cutting tool type | Disc type |
| Rotor diameter | 630mm |
| Main rotate speed | 1200 rpm |
| Toss height | 5350 mm |
| Toss distance | ≥8 m |
| Throwing device rotate angle | 270 deg |
| Walking speed | Ⅰ：O-11.5km/h Ⅱ：O-23km/h |
| Feeding mechanism type | Feed rolls |
| Straw cutting mechanism type | Drum type |
| Kernel grinding mechanism type | Double roller type |
