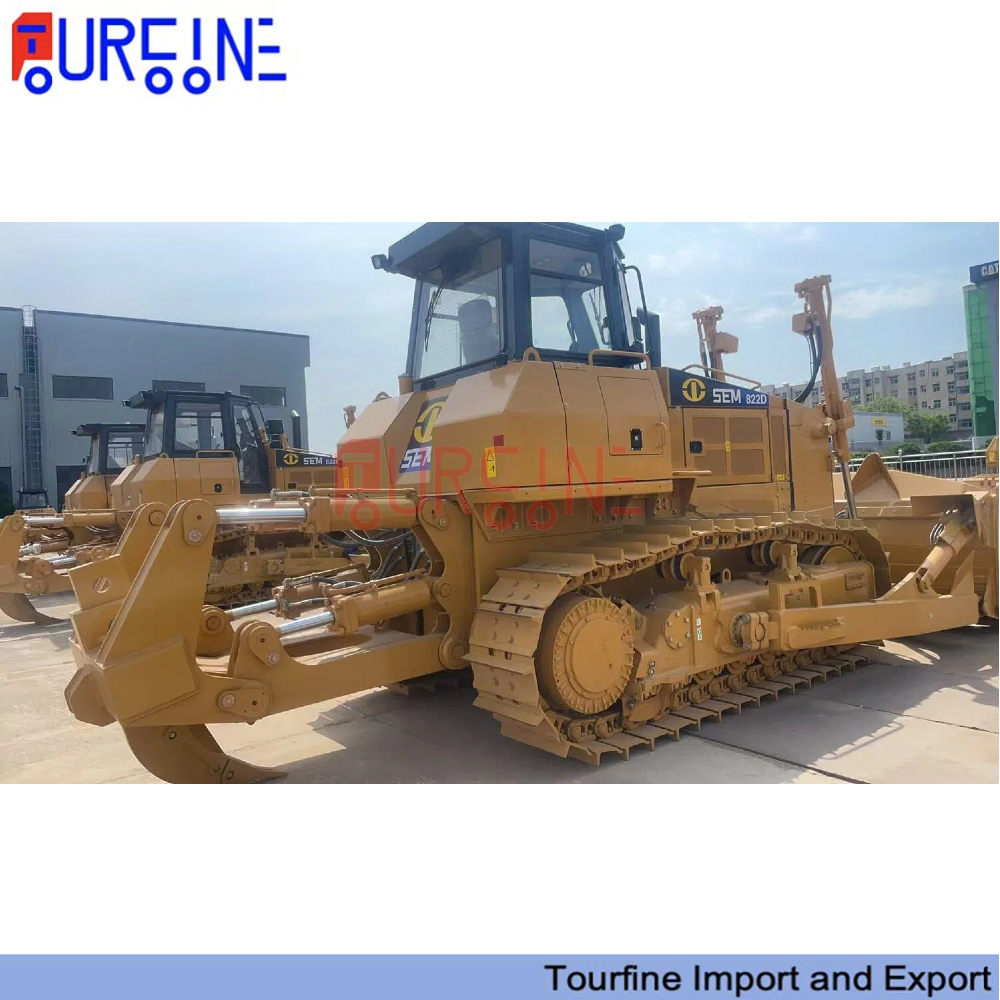

Sem Brand 240HP Crawler Bulldzoer Sem822D

The SEM822D Crawler Bulldozer, developed by Caterpillar’s SEM brand, is a high-performance medium-sized dozer widely used in road construction, mining, and earthmoving projects. Equipped with a powerful engine, torque converter, and planetary power shift transmission, it delivers stable and efficient operation. With a robust structure, comfortable controls, and easy maintenance, the SEM822D is built to perform in tough working conditions. It is an ideal choice for those seeking reliability and productivity.

Miss Shilo
Senior sales
Tel./hatsApp:0086 17813710458
Beiiing Tourfine lmport and Export co., Ltd
Web.:www.trucksmachine.com
Punctual One-Stop Shipping Service, Makes Business Easier with Us

Model	SEM822D LGP	SEM822D DS	SEM822D WH
Operating Weight	27,880 kg	27,140 kg	28,560 kg
Ground Pressure	43.0 kPa	41.7 kPa	43.8 kPa
Ground Clearance	400 mm
Max. Slope	30°
Engine
Model	WD12G240E206
Rated Power	175 kW/235 hp
Working Tool
Blade Type	LGP S blade	LGP S blade	WH blade
Blade Capacity	5.5 m3	5.5 m3	12.7 m3
Blade Width	4,510 mm	4,510 mm	4,510 mm
Blade Height	1,350 mm	1,350 mm	1,945 mm
Max. Blade Digging Depth	665 mm	665 mm	665 mm
Max.Blade Lift Ground Clearance	1,165 mm	1,165 mm	1,165 mm
Max.Output Rimpull	350 kN
Ripper Type	/	/	/
Max. Digging Depth of Ripper	/	584 mm	584 mm
Max. Clearance Under Tip	/	615 mm	615 mm
Powertrain
Type	dual-path, closed loop electronically controlled hydrostatic drive system
Travel Speed-F/R	infinitely variable speeds 0-10 km/h
Steering & Brake	hydrostatic steering; wet,multi-disc brake
Minimum Streeing Radius	4,300 mm	4,300 mm	4,300 mm
Undercarriage
Track Shoe Width-Single	915 mm	915 mm	915 mm
Track Shoe Width-APEX	910 mm	910 mm	/
Track Shoe Quantity	45	45	45
Track Length On Ground	3,488 mm	3,488 mm	3,488 mm
Track Guage	2,340 mm	2,340 mm	2,340 mm
Track Roller Quantity	8	8	8
Carrier Roller Quantity	2	2	2
Hydraulic System
Type	enter close, pilot control
Implement Hydraulic System Pressure	19 MPa
Service Refil Capacities
Fuel Tank	460 L
Cooling System	45 L
Hydraulic Tank	160 L
Pivot Shaft Case(each side)	0.8 L
Final Drive(each side)	45 L	45 L	45 L
