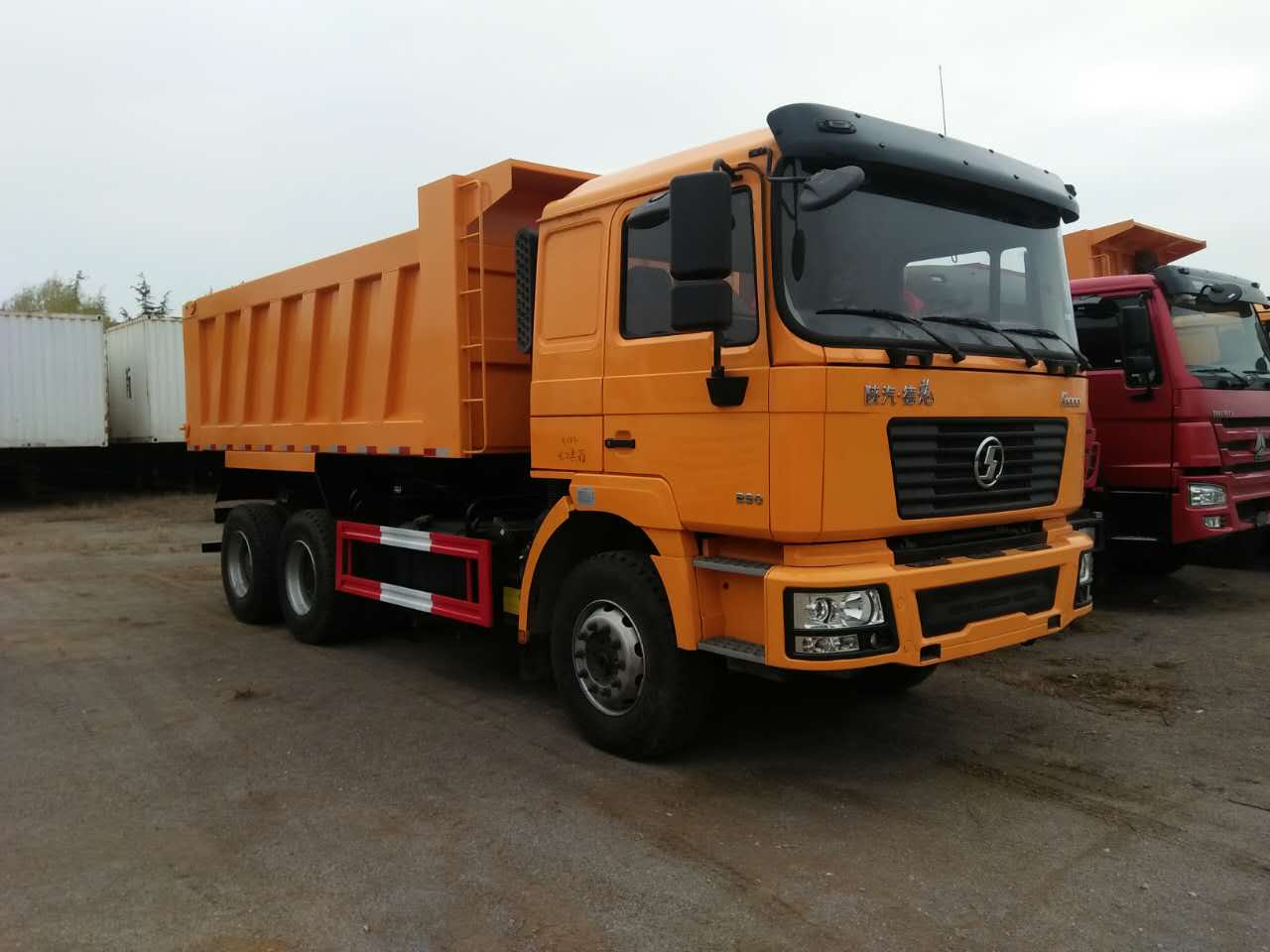

| SHACMAN F3000 6*4 DUMP TRUCK |
| Chassis Model | SX3255DR354 |
| Cab | F3000 MAN cab with A/C, flat head, one sleeper, double doors, tippable |
| Overall Dimension | L×W×H | mm | 8275×2490×3300 |
| Total Mass | Kg | 25000 |
| Kerb mass | Kg | 11200 |
| Front/rear suspension | mm | 1525/1600 |
| Fuel type | Diesel |
| Fuel tank | L | 300 |
| Engine | Model/Rated Power | Weichai WP10.290E32 / 290HP |
| Emission Standard | Euro II |
| Displacement (L) | 9.726 |
| Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging |
| Driving type | 6*4 |
| Wheel base | 3575+1400mm |
| Front axle | 9.5T MAN technology |
| Rear axle | 13T Steyr axle (double redcution) |
| Steering | ZF technology |
| Cultch | Φ 430 diaphragm spring cultch |
| Brake system | Air brake, exhaust brake, air cut brake |
| Number of leaf spring of suspension | 9/12,10/12 |
| Type & Size of Tyre | 12.00R20 |
| Max Speed | Km/h | 77 |
| Tipping type | Middle tipping system |
| Cargo Dimension (mm) | 5200*2300*1500mm 18m3 |
| Thickness of body steel(mm) | Floor 8, side 6 |
