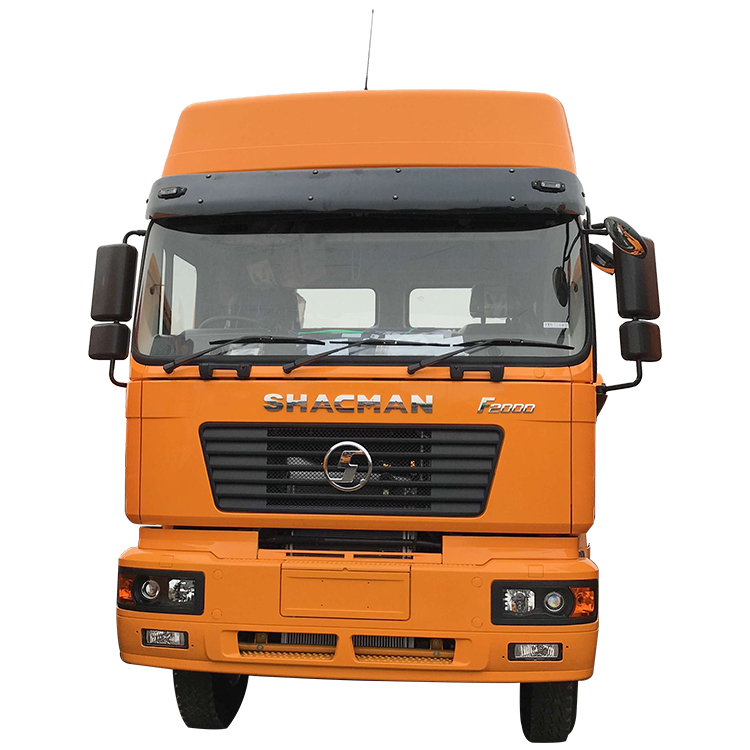

SHACMAN TRACTOR TRUCK

MODEL		SX4255JT324CR
Traction type		Right Hand
Driving type		6×4
Curb weightkg）		8800
Max.Weight（kg）		90000
Overall Dimension/mm(LxWxH)		6850×2490×3300
Wheelbase(mm)		3175+1400
Max. Speed/(km/h)		89 km/h
Max. Grade ability/(%)		30
Engine	Brand	CUMMINS
	Model	WP10.380E32
	Emission Standard	EUROⅢ
	Rated output power	380HP
	Rated speed/（r/min）	1900
	Maximum Torque/	1835N.m/1200r/pm
	Displacement(L)/	Displacement:10.8L
Transmission	Brand	FAST
	Model	12JSD200T-B，12 forward，2 reverse
		12JSD200T-B，
Front axle		7500kg，MAN 7.5T
Rear axle		2×13000kg，2×13T MAN double reduction drive axle, ratio 4.769

Clutch		￠430 diaphragm clutch
Steering		ZF technology
Frame		850*300（8+5）
Suspension		multiple leaf springs front and rear
Fuel tank		400L aluminium alloy fuel tank
Wheels and tires		12R22.5，10+1
Brakes		Running brake: Dual circuit compressed air brake
		Parking brake: Air discharging with spring control
		Auxiliary brake: JACOB
		Without ABS

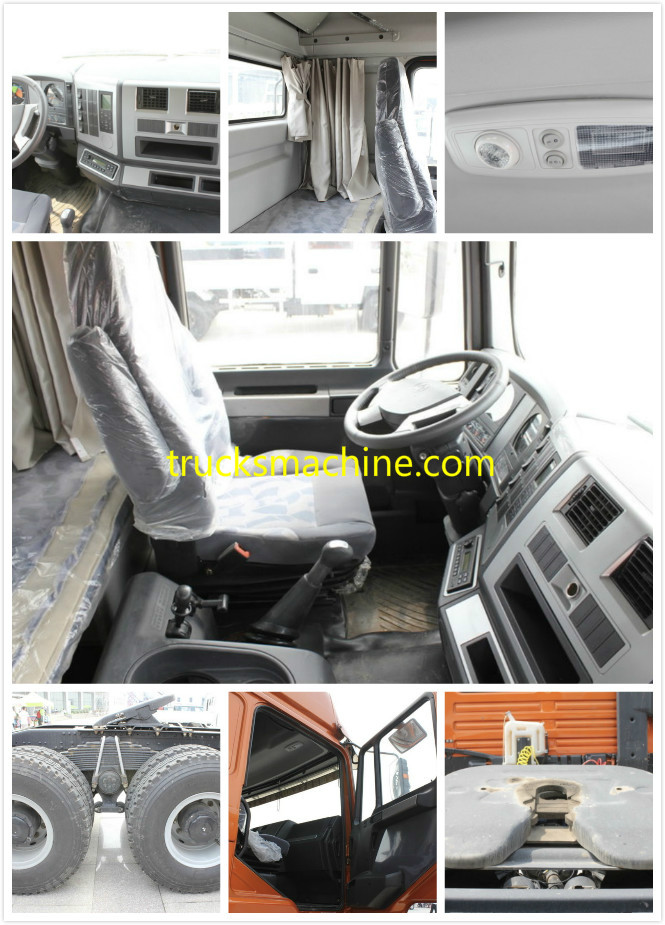

Cabin
		1. F3000 lengthened Flat Roof Cab 2. hydraulic Driver’S Seat 3. Four-Point hydraulic Suspension Cab 4. A/C 5. Metal Bumper
Others		1. ordinary air filter 2. 165Ah maintenance-free battery
Fifth wheel		90#
