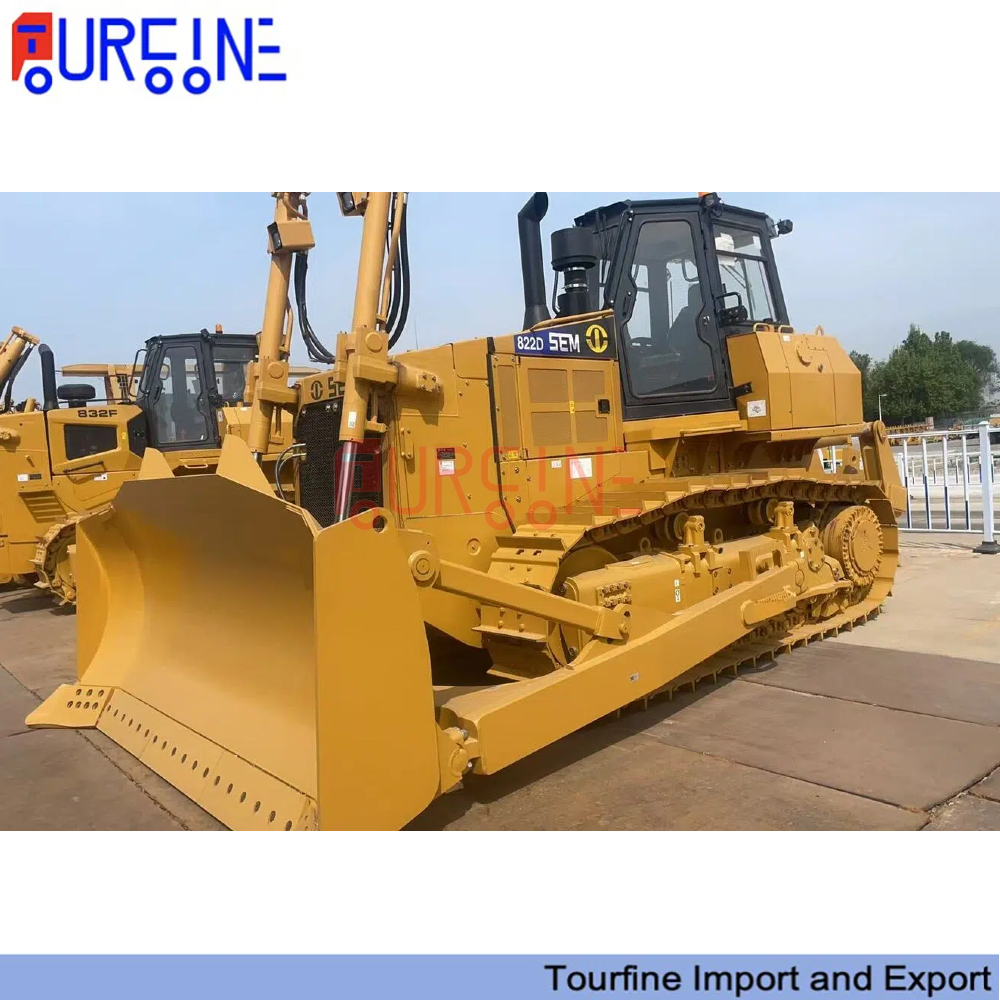

Shangong SEM822D 235HP Crawler Bulldozer

The SEM822D Crawler Bulldozer, developed by Caterpillar’s SEM brand, is a high-performance medium-sized dozer widely used in road construction, mining, and earthmoving projects. Equipped with a powerful engine, torque converter, and planetary power shift transmission, it delivers stable and efficient operation. With a robust structure, comfortable controls, and easy maintenance, the SEM822D is built to perform in tough working conditions. It is an ideal choice for those seeking reliability and productivity.

Miss Shilo
Senior sales
Tel./hatsApp:0086 17813710458
Beiiing Tourfine lmport and Export co., Ltd
Web.:www.trucksmachine.com
Punctual One-Stop Shipping Service, Makes Business Easier with Us

Model	SEM822D		SEM822D CH		SEM822D FR
Operating Weight	24,000 kg		24,760 kg		25,760 kg
Ground Pressure	71.2 kPa		62.4 kPa		76.5 kPa
Ground Clearance	400 mm
Max. Slope	30°
Engine
Model	WD12G240E206
Rated Power	175 kW/235 hp
Working Tool
Blade Type	SU blade	S blade	Coal blade	U blade	Forestry blade
Blade Capacity	6.4 m3	5.8 m3	9.2 m3	7.5 m3	8.7 m3
Blade Width	3,660 mm	3,800 mm	3,900 mm	3,900 mm	3,660 mm
Blade Height	1,520 mm	1,510 mm	1,620 mm	1,420 mm	1,830 mm
Max. Blade Digging Depth	570 mm	570 mm	570 mm	570 mm	570 mm
Max.Blade Lift Ground Clearance	1,140 mm	1,140 mm	1,140 mm	1,140 mm	1,140 mm
Max.Output Rimpull	350 kN
Ripper Type	Multi-Shank Ripper	Single-Shank Ripper	Multi-Shank Ripper	Single-Shank Ripper	Multi-Shank Ripper	Single-Shank Ripper
Max. Digging Depth of Ripper	860 mm	737 mm	860 mm	737 mm	860 mm	737 mm
Max. Clearance Under Tip	640 mm	742 mm	640 mm	742 mm	640 mm	742 mm
Powertrain
Type	dual-path, closed loop electronically controlled hydrostatic drive system
Travel Speed-F/R	infinitely variable speeds 0-10 km/h
Steering & Brake	hydrostatic steering; wet,multi-disc brake
Minimum Streeing Radius	4,215 mm		4,500 mm		4,215 mm
Undercarriage
Track Shoe Width-Single	560 mm		660 mm		560 mm/660 mm
Track Shoe Width-APEX	/		/		/
Track Shoe Quantity	40		40		40
Track Length On Ground	2,948 mm		2,948 mm		2,948 mm
Track Guage	2,000 mm		2,000 mm		2,000 mm
Track Roller Quantity	7		7		7
Carrier Roller Quantity	2		2		2
Hydraulic System
Type	enter close, pilot control
Implement Hydraulic System Pressure	19 MPa
Service Refil Capacities
Fuel Tank	460 L
Cooling System	45 L
Hydraulic Tank	160 L
Pivot Shaft Case(each side)	0.8 L
Final Drive(each side)	40 L		40 L		40 L
