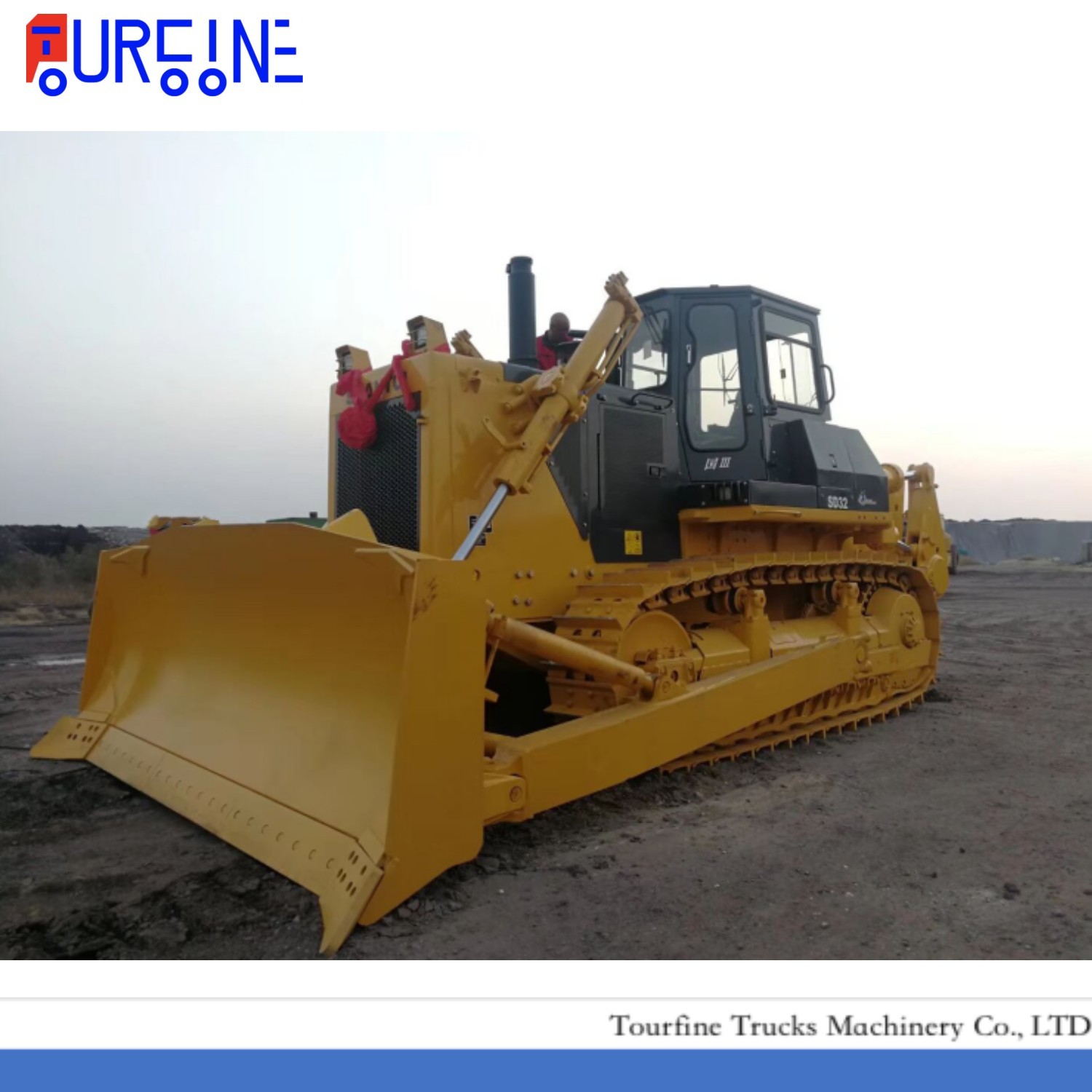

Shantui SD32 Bulldozer

Shantui SD32 Bulldozer

SD32D desert bulldozer is researched and developed independently on the basis of SD32 standard bulldozer in response to the demands of desert working conditions.

Engine power/speed:235kW/2000rpm

Operating weight of whole machine: 37500kg

Blade capacity: 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade

Send Inquiry Live Chat

Product Details
Machine Details
Successful Case
Packing & Delivery

ITEM	UNIT	SD32D
L×W×H (Ripper not included)	mm	6880×4130×3725
Operating weight (Ripper not included)	t	36.5
Engine	–	CumminsNTA855-C360
Rated power	kW/rpm	235/2000
Gradeability	°	30
Blade type	–	Straight tilt /bladeSemi-U blade/Angle blade
Blade width	mm	Straight tilt blade 4130×1590Semi-U blade4030×1720Angle blade 5000×1140
Dozing capacity	m3	Straight tilt blade 10Semi-U blade 11.7Angle blade 6.2
Ma× drop below ground of blade	mm	560
Lift height of blade	mm	1560
Ripper type	–	Single ripper or Three-shank ripper
Ripping depth of ripper	mm	Single ripper 1250Three-shank ripper 842
Lifting height of ripper	mm	Single ripper 955Three-shank ripper 883
Number of carriers (each side)	–	2
Number of track rollers (each side)	–	7
Number of track shoes (each side)	–	41
Width of track shoe	mm	760
Track gauge	mm	2140
Ground length and ground pressure	mm/MPa	3150-0.076
Pitch	mm	228.6
Forward speed	km/h	0–3.6
		0–6.6
		0–11.5
Reverse speed	km/h	0–4.4
		0–7.8
		0–13.5
