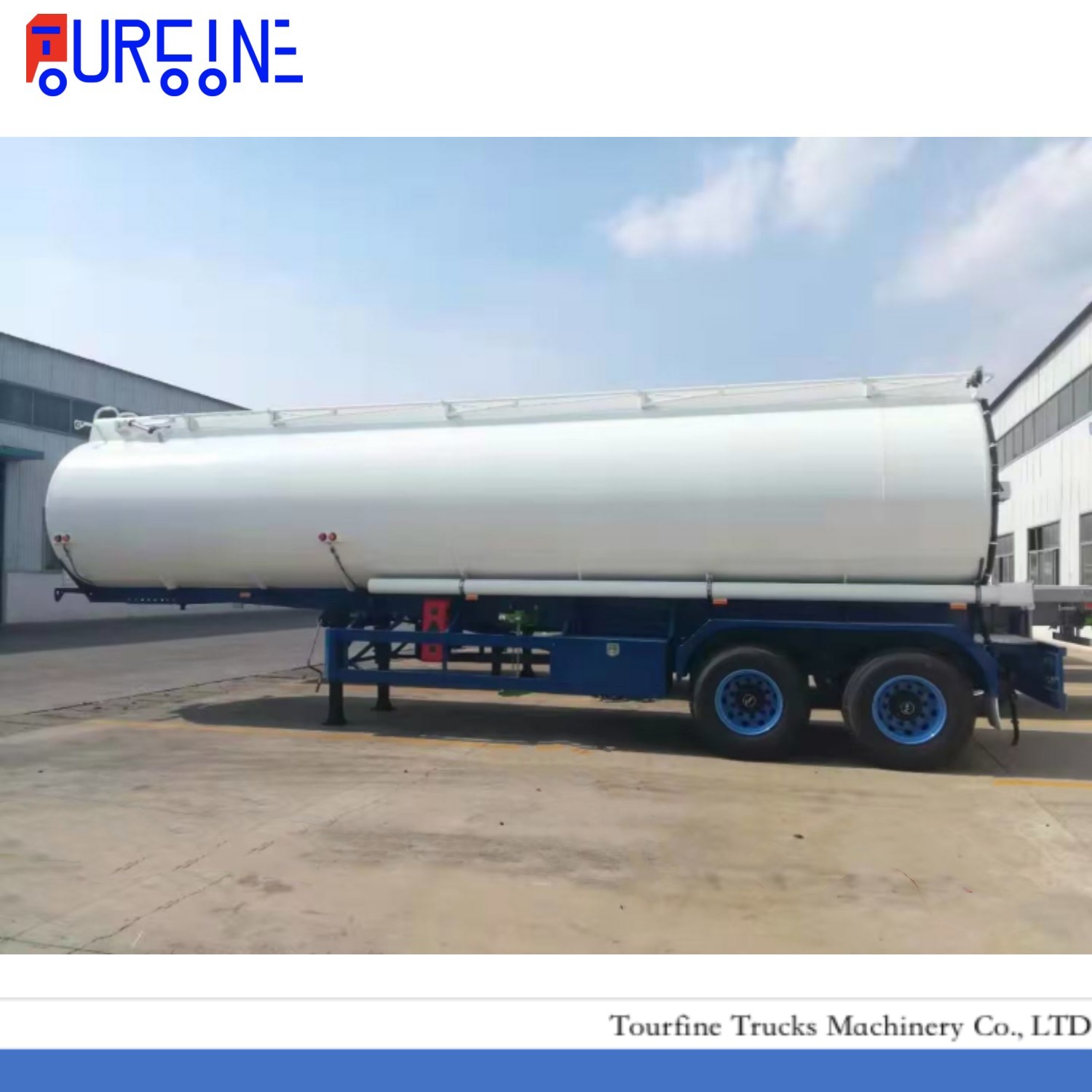

| Tank Body | |
| Shape | Mono block Cylinder , Elliptical, circular type shape |
| Total Volume | 45000 liters with 6 independent compartments, each compartment 7000 liters |
| Tanker Body Material | 4 mm steel / Q610L high tensile strength steel |
| End plate | 5 mm steel sheet/Q610L high tensile strength steel |
| Manhole cover | Aluminum alloy API manhole cover, 500mm ,2 sets with 2 breather valve |
| Bottom Valve | 3 sets of Aluminum API Pneumatic Bottom Valve |
| |
| Discharging valve | 3 sets 100mm discharging valves |
| Discharging Pipe | 4”rubber hose, 3 pcs |
| Chassis | |
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; |
| Axle | 3*13 Ton BPW axle |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear |
| King Pin | JOST brand 2” bolt-in king pin |
| Suspension | Air suspension |
| Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40 L air tanks. |
| Wheel rim | 9.0-22.5 wheel rim, 12 pieces |
| Tire | 12R22.5 tubeless tire, 12 pieces |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
