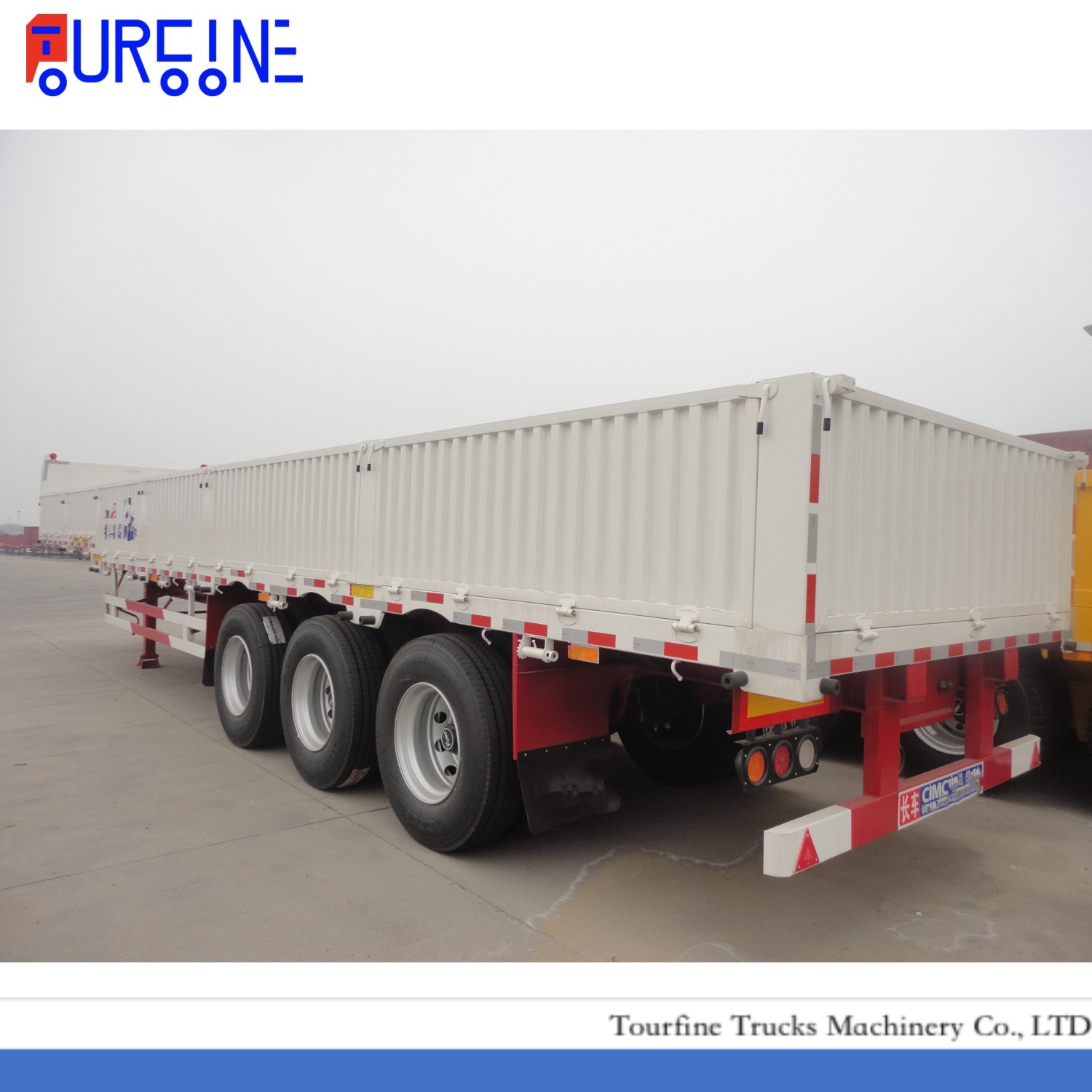

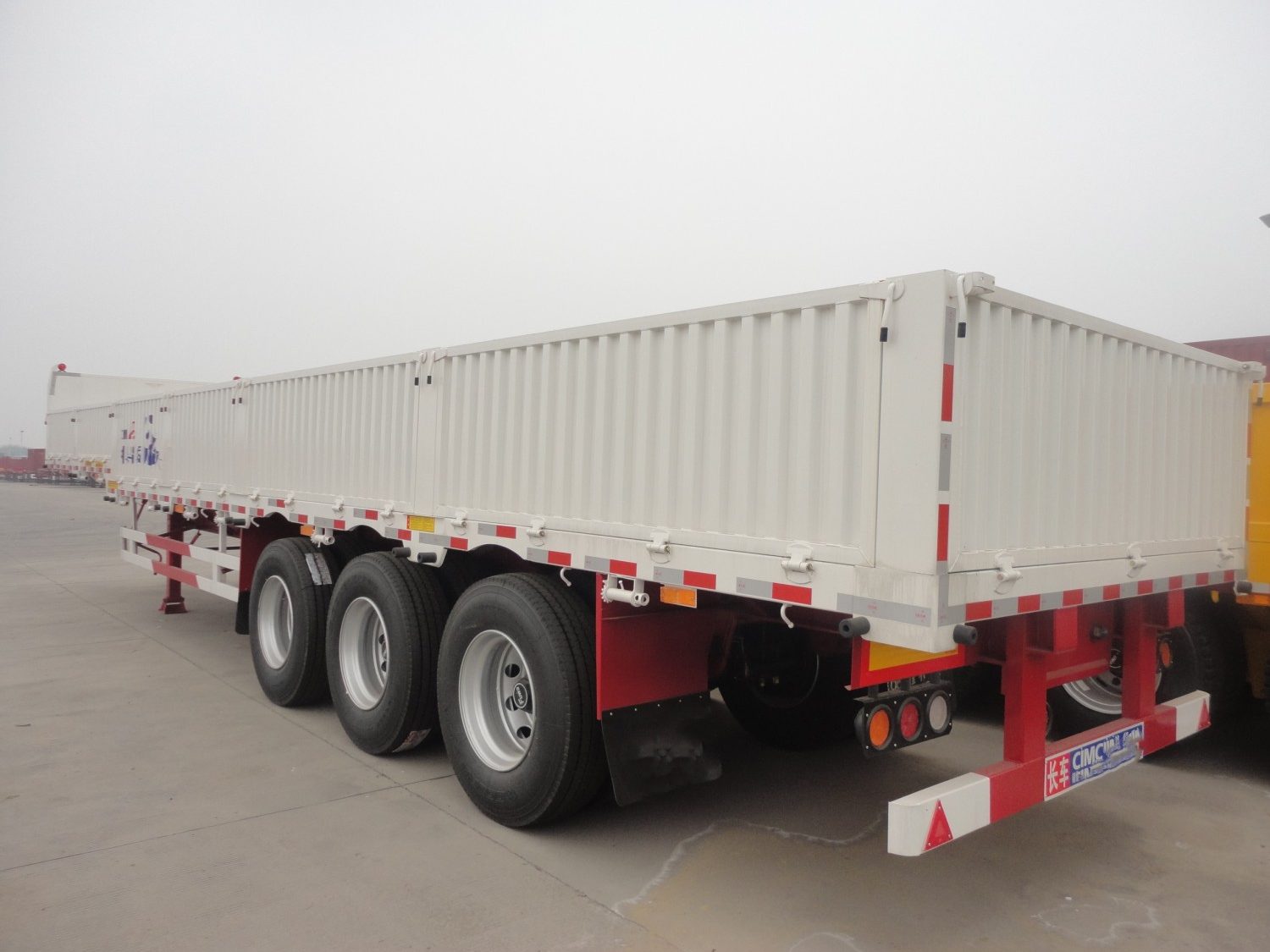

With Stable Quality 50t Tri axle Cargo Transport fence cargo trailer price

Item	Specification
Size	1300025503850mm.
Body Sheet	Floor thickness: 3mm, checkered plate; Body material: Q355 steel.
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes.
Axle	13T FUWA brand axle
Tire	12R22.5
Rim	9.0-22.5
Suspension	3 axles CIMC reinforced type.
Lead spring	CIMC reinforced type, 12 pieces and 16mm thickness.
Braking system	2 line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters.
Electrical system	24V, LED lights. 7 pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standard, rear front and side reflectors.
Shot blasting	Chassis is comletely shotblasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns DFT),THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat.total 80-100 microns. high quality painting. the whole trailer waxed.
Landing gear	28T, two side operation.
Chamber	Double type
King pin	(2′) 50# or (3.5′) 90#
Spare tire carrier	CIMC standard
Tool box	CIMC standard
Color	According to customers’ requirements and RAL color code.

Type	Semi- trailer
Function	Transport cement, sugar, coal or other cargo.
Fence heigth	1000mm
Top flange plate	10mm
Web plate	5mm
Bottom flange plate	12mm
Payload	50 Ton
OEM	Yes
