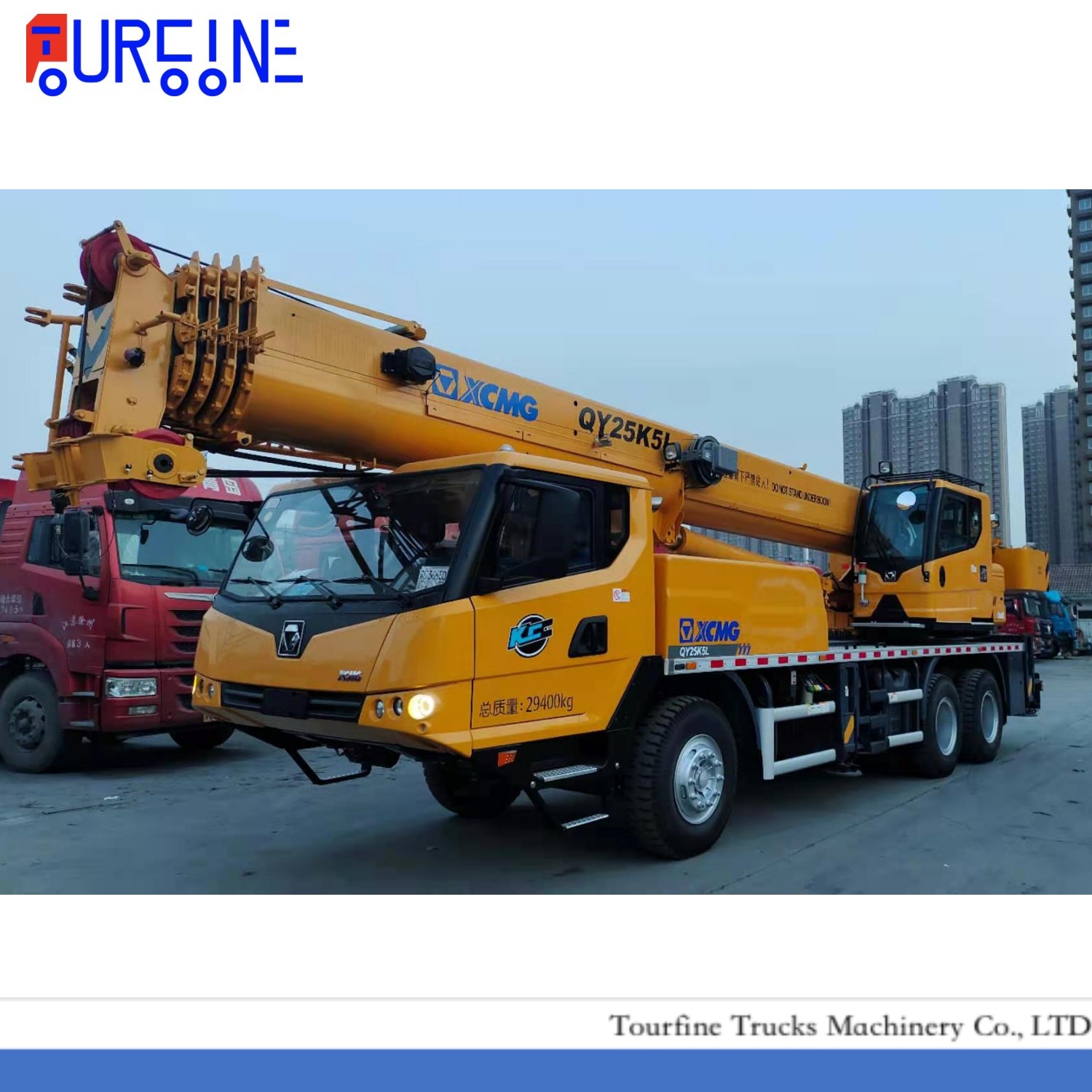

NEW XCMG 25T Truck crane QY25K5D Crane hot sale

Category	Item		Unit	Parameters
Dimensions Category Dimensions	Overall length		mm	12870
	Overall width		mm	2500
	Overall height		mm	3400
	Tread		mm	4500+1350
	Wheel base		mm	2059/1834/1834
Weight	Total weight in travel state		kg	33400
	Axle weight	Front axle	kg	7400
		Rear axle	kg	26000
Power	Engine #			SC9DF300.1Q5
	Engine rated output		kw/(r/min)	221/2200
	Engine rated torque		N.m/(r/min)	1250/1400
Travel	Max. Travel speed		km/h	80
	Min. tuning diameter		m	21
	Min. ground clearance		mm	250
	Approach angle		°	11
	Departure angle		°	13.5
	Braking Length(Speed 30km/h）		m	≤10
	Max. Grand ability		%	≥40
	Fuel consumption of 100km		l	30
Noise parameters	Exterior noise level		dB（A）	≤84
	Noise level at seated position		dB（A）	≤90

Category	Item				Unit	Parameters
Performance	Max. Total rated lifting load				t	25
	Min. rated working radius				m	3
	Turning radius at swing table tailCounterweight				mm	3650
	Max. Load moment	Base boom			kN.m	1148
		Full-extend boom			kN.m	706
		Full-extend boom +Jib			kN.m	503
	Outrigger extension distance	Longitudinal			m	5.5
		Lateral			m	6.4
	Lifting height	Base boom			m	11.2
		Full-extend boom			m	42.8
		Full-extend boom & jib			m	51.1
	Boom length	Base boom			m	10.8
		Full-extend boom			m	43
		Full-extend boom & jib			m	52
	Jib assemble angle				°	0、15、30
Working speed	Boom elevating time		Boom rising		s	≤38
	Boom telescoping time		Full-extending		s	≤100
	Max. Slewing speed				m/min	≥2.5
	Outrigger Contraction time	Level outrigger		At the same time stretch	s	≤30
				At the same time reducing	s	≤20
		Vertical Outrigger		At the same time stretch	s	≤35
				At the same time reducing	s	≤25
	Hoisting speed (Single rope 4th layer) Hoisting speed (Single rope 4th layer) Hoisting speed (Single rope 4th layer) Hoisting speed (Single rope 4th layer)	Main winch Main winch		Full load	m/min	75
				Full load	m/min	125
		Main winch Main winch		Full load	m/min	75
				Full load	m/min	125
	Outside radiation				dB（A）	≤08
	Control cab				dB（A）	≤85
