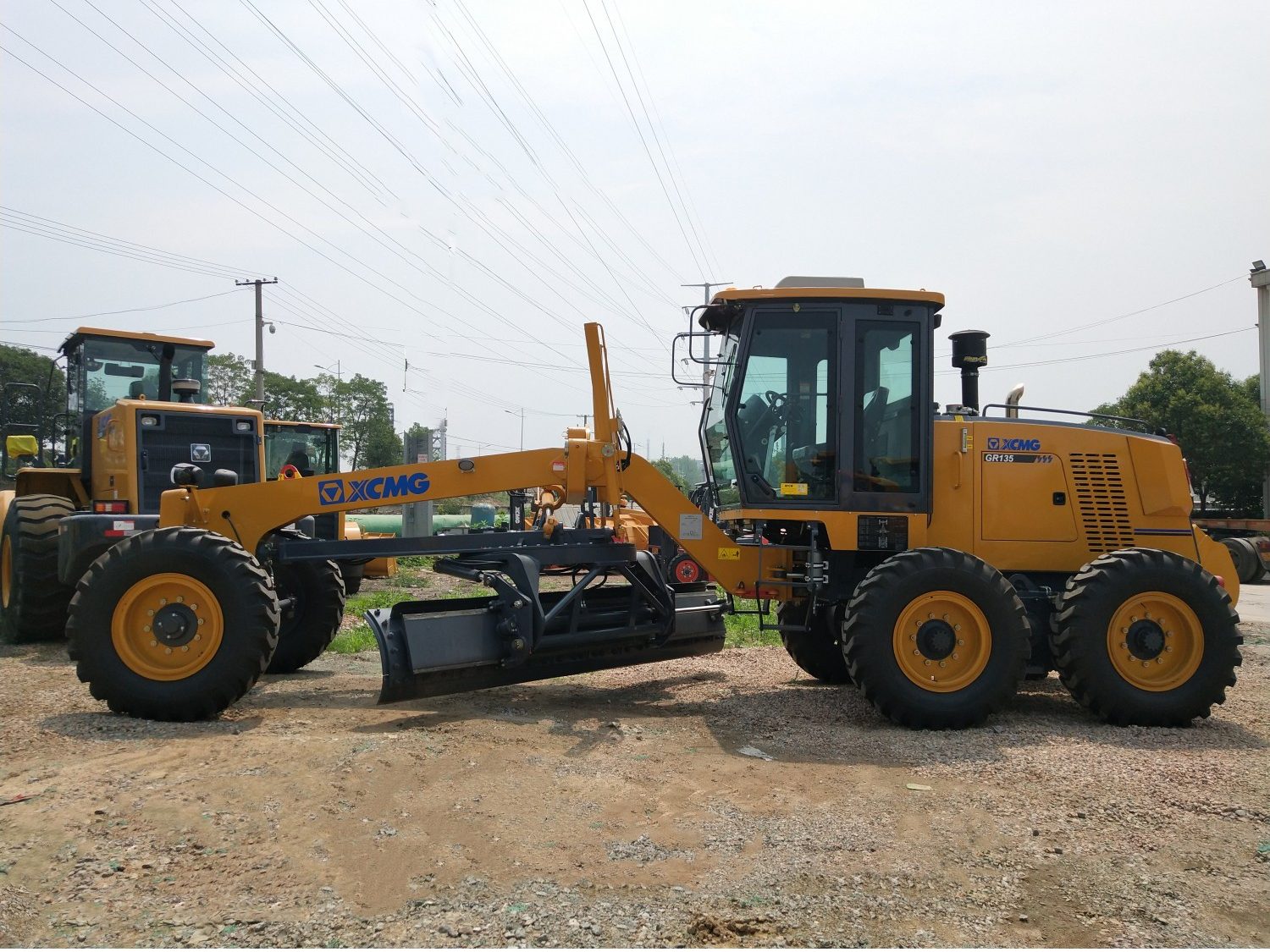

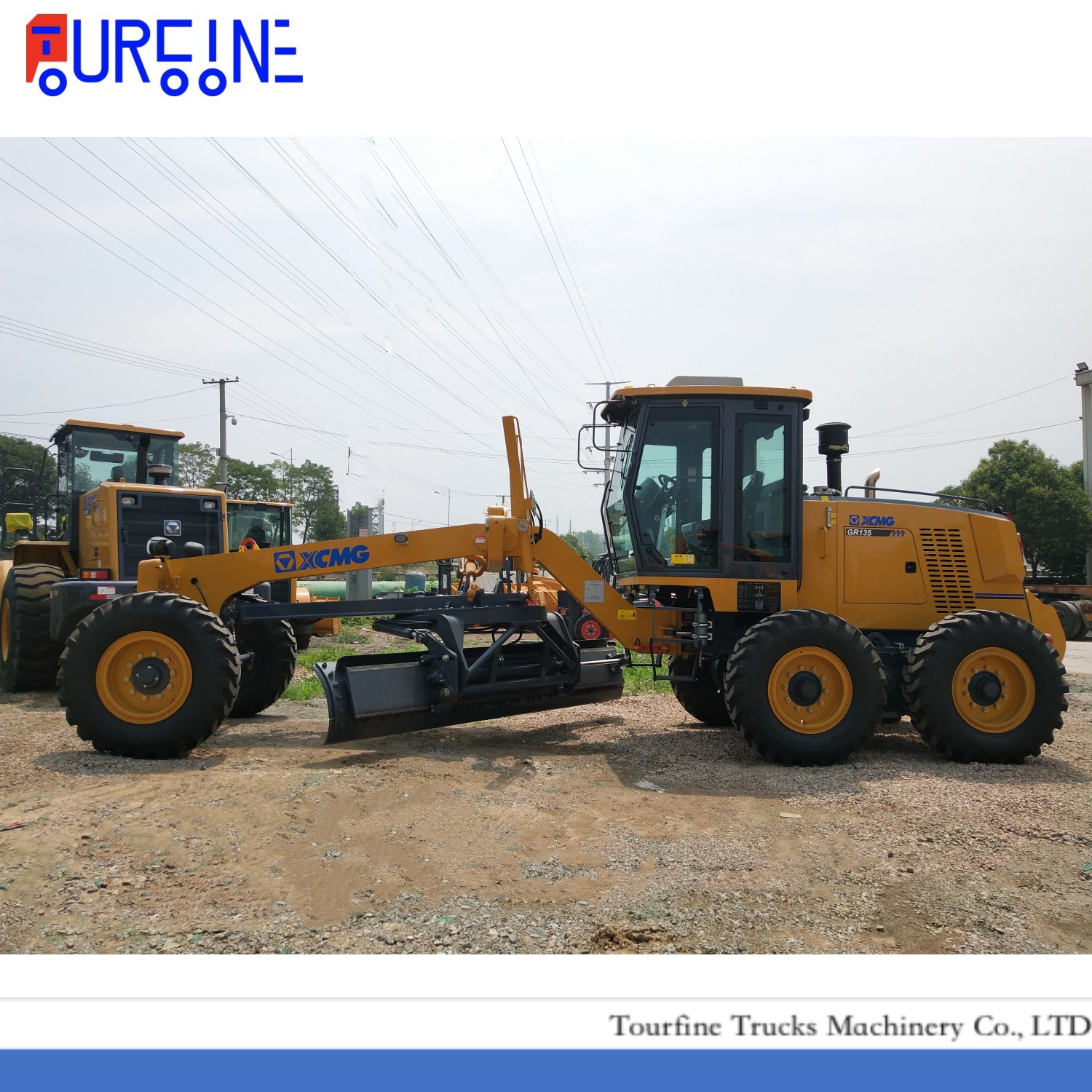

XCMG GR135 Motor Grader Hot sale with Front Blade Rear Ripper grader

XCMG GR135 Motor Grader Hot sale with Front Blade Rear Ripper grader

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

Send Inquiry Live Chat

Product Details
Machine Details
Successful Case
Packing & Delivery

Basic specification GR135
Engine model	DONGFENG CUMMINS 6BT5.9
Rated power	97kw
Dimension(LxWxH)	8015×2380×3050mm
Operating weight(Standard)	11000kg
Performance specification
Traveling speed ,forward	5、8、13、20、30、42km/h
Traveling speed ,reverse	5、13、30km/h
Tractive force(f=0.75)	61.3KN
Max. Grade ability	20%
Tire inflation pressure	300kPa
Working hydraulic pressure	16MPa
Transmission pressure	1.3～1.8MPa
Operating specification
Max. steering angle of front wheels	±49°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	16
Frame articulation angle	±27°
Min. turning radius using articulation	6.6m
Blade
Maximum lift above ground	410mm
Maximum depth of cutting	535mm
Maximum blade position angle	90°
Blade cutting angle	28°—70°
Circle reversing rotation	360°
Moldboard width X height	3710×610mm
