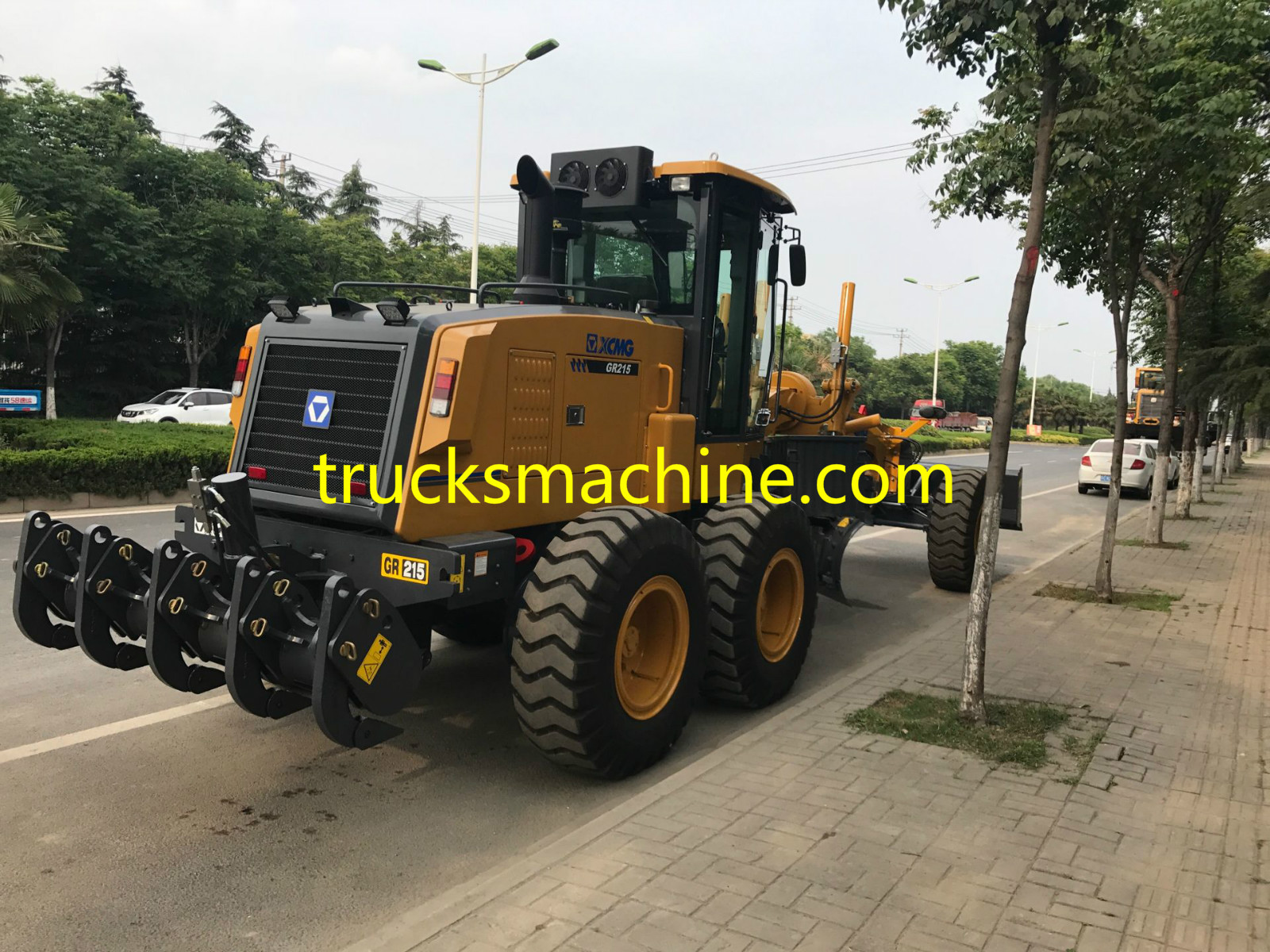

XCMG New GR215 Construction machine Motor Grader with front blade and rear ripper

Basic specification with air conditioner
Engine model	CTAA8.3/6CTA8.3
Rated power/speed	153kW/2200rpm /160kW/2200rpm
Dimension(LxWxH)	8970×2625×3470mm
Operating weight(Standard)	16500kg
Performance specification
Traveling speed ,forward	5、8、11、19、23、38 km/h
Traveling speed ,reverse	5、11、23 km/h
Tractive force(f=0.75)	82KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3～1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
Frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Blade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°—70°
Circle reversing rotation	360°
Moldboard width X height	4270×610mm

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
