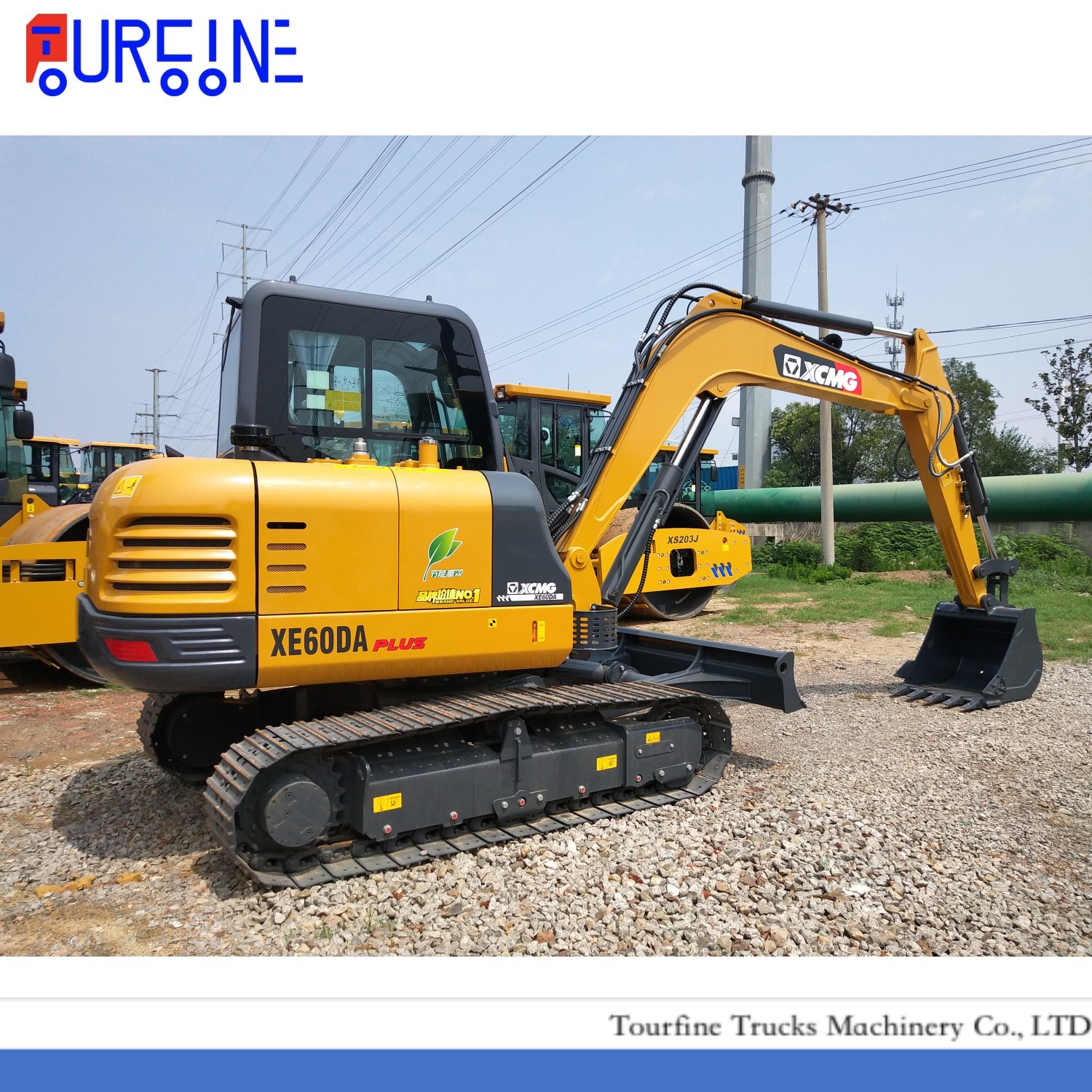

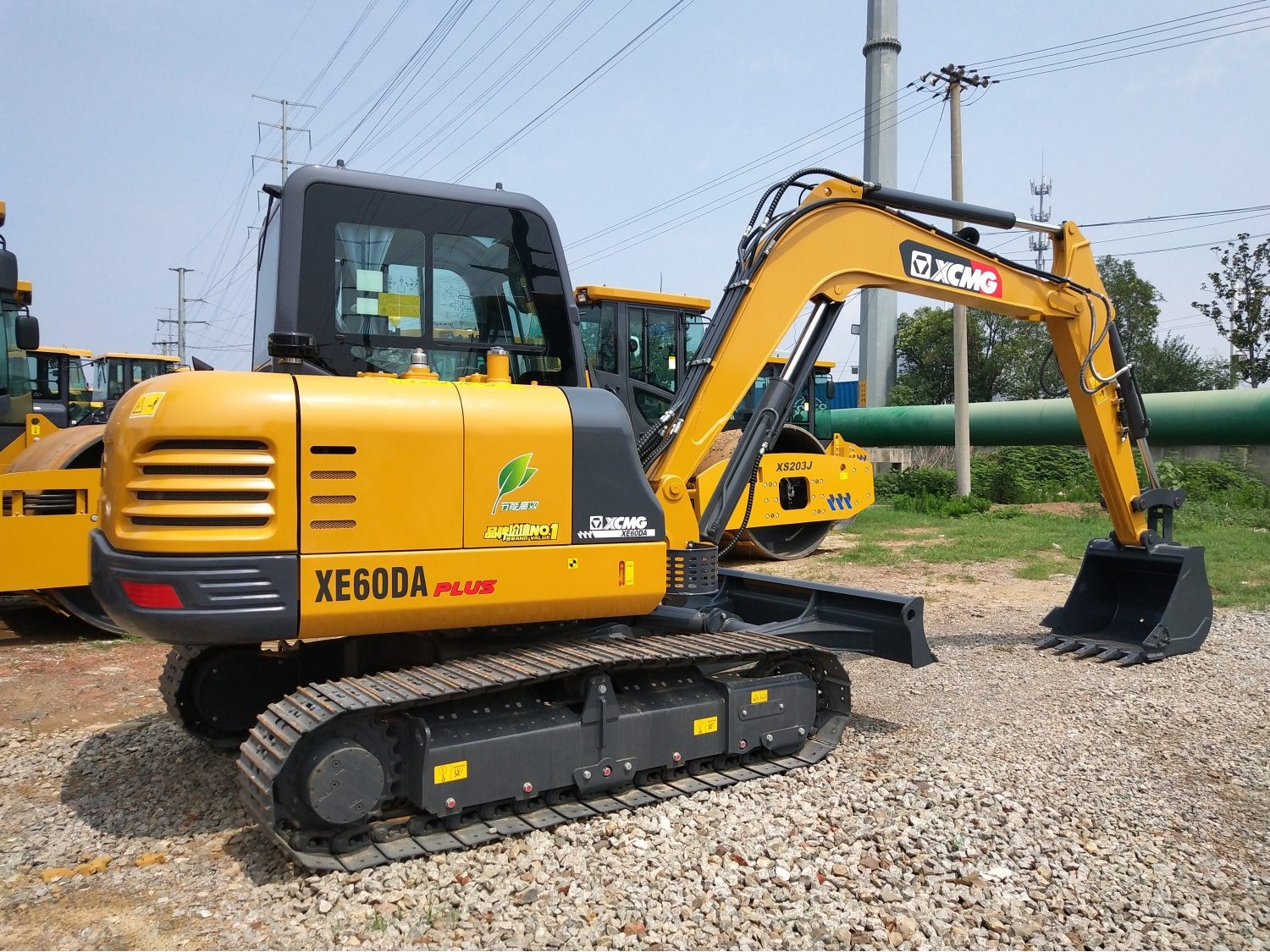

XCMG 6T XE60DA Hot sale Excavator

Model		Unit	XE60DA
Operating weight		Kg	6010
Bucket capacity		m³	0.23
Engine	Model	/	4TNV94L
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo-charging	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	36.2/2100
	Maximum torque/speed	N.m	193.2-210.6/1260
	Displacement	L	3.054
Main performance	Travel speed（H/L)	km/h	4.2/2.2
	Swing speed	r/min	10
	Gradeability	°	≤35
	Ground pressure	kPa	32.5
	Bucket digging force	kN	48.3
	Arm digging force	kN	32.5
	Maximum tractive force	kN	50.5
Hydraulic system	Main pump	/	/
	Rated flow of main pump	L/min	151.2
	Main safety valve pressure	MPa	24.5
	Travel system pressure	MPa	24
	Swing system pressure	MPa	23
	Pilot system pressure	MPa	3.5
Oil Capacity	Fuel tank capacity	L	110
	Hydraulic tank capacity	L	85
	Engine oil capacity	L	10
Appearance size	A Overall length	mm	5860
	B Overall width	mm	1920
	C Overall height	mm	2585
	D Width of platform	mm	1780
	E Track length	mm	2540
	F Overall width of chassis	mm	1920
	G Track shoe width	mm	400
	H Wheel base of crawler	mm	1990
	I Track gauge	mm	1500
	J Counterweight clearance	mm	700
	K Min. ground clearance	mm	385
	L Min. tail swing radius	mm	1670
	M Track height	mm	606
Working scope	A Max. digging height	mm	5630
	B Max. dumping height	mm	3945
	C Max. digging depth	mm	3830
	D Maximum depth cut for 2240mm(8 ft) level bottom	mm	2680
	E Max. digging radius	mm	6130
	F Min. swing radius	mm	2460
Standard	Length of boom	mm	3000
	Length of arm	mm	1600
	Bucket capacity	m³	0.23
Optional	Length of boom	mm	–
	Length of arm	mm	–
	Bucket capacity	m³	0.09(Narrow bucket)
