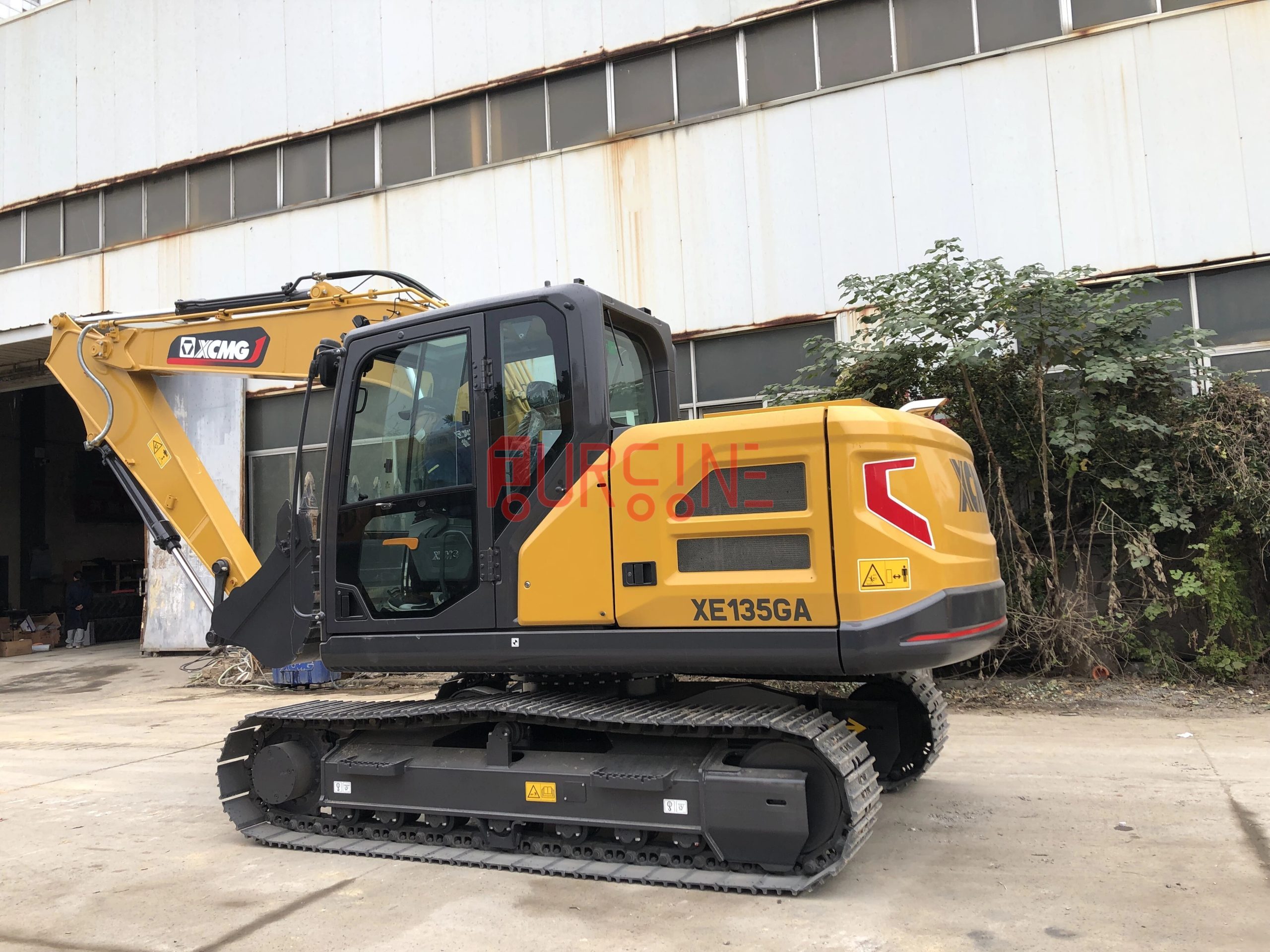

XE135GA 13.5ton with 0.61cbm Bucket Crawler Excavator

Sales model		Unit	XE135GA
Operating weight		Kg	13200
Bucket capacity		m³	0.32-0.61
Engine	Model	/	QSF3.8
	No. of cylinders	/	4
	Output power	kw/rpm	86/2200
	Maximum torque/speed	N.m/rpm	470/1300
	Displacement	L	3.8
Main performance	Travel speed	km/h	5.2/2.9
	Swing speed	r/min	11
	Gradeability	°	35
	Ground pressure	kPa	40.4
	Bucket digging force	kN	99.1
	Arm digging force	kN	68
	Maximum traction	kN	134
Hydraulic system	Rated flow of main pump	L/min	125.4*2
	Main safety valve pressure	MPa	31.4/34.3
	Travel system pressure	MPa	34.4
	Rotary system pressure	MPa	25
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	260
	Hydraulic tank capacity	L	105
	Engine oil capacity	L	11
Appearance size	A Overall length	mm	7795
	B Overall width	mm	2525
	C Overall height	mm	2880
	D Width of platform	mm	2490
	E Track length	mm	3648
	F Overall width of chassis	mm	2490
	G Track width	mm	500
	H Length to center of rollers	mm	2918
	I Track gauge	mm	1990
	J Counterweight clearance	mm	931
	K Min. ground clearance	mm	466
	L Min. tail swing radius	mm	2325
	M Track height	mm	802
Working scope	A Max. digging height	mm	8638
	B Max. dumping height	mm	6174
	C Max. digging depth	mm	5546
	D Maximum depth cut for 2240mm(8 ft) level bottom	mm	5335
	E Max. vertical wall digging depth	mm	4698
	F Max. digging radius	mm	8304
	G Min. swing radius	mm	2445
Standard configuration	Length of boom	mm	4600
	Length of arm	mm	2520
	Bucket capacity	m³	0.52
Optional configuration	Length of boom	m³	/
	Length of arm	m³	2100/3010
	Bucket capacity	m³	0.32/0.4/0.61
