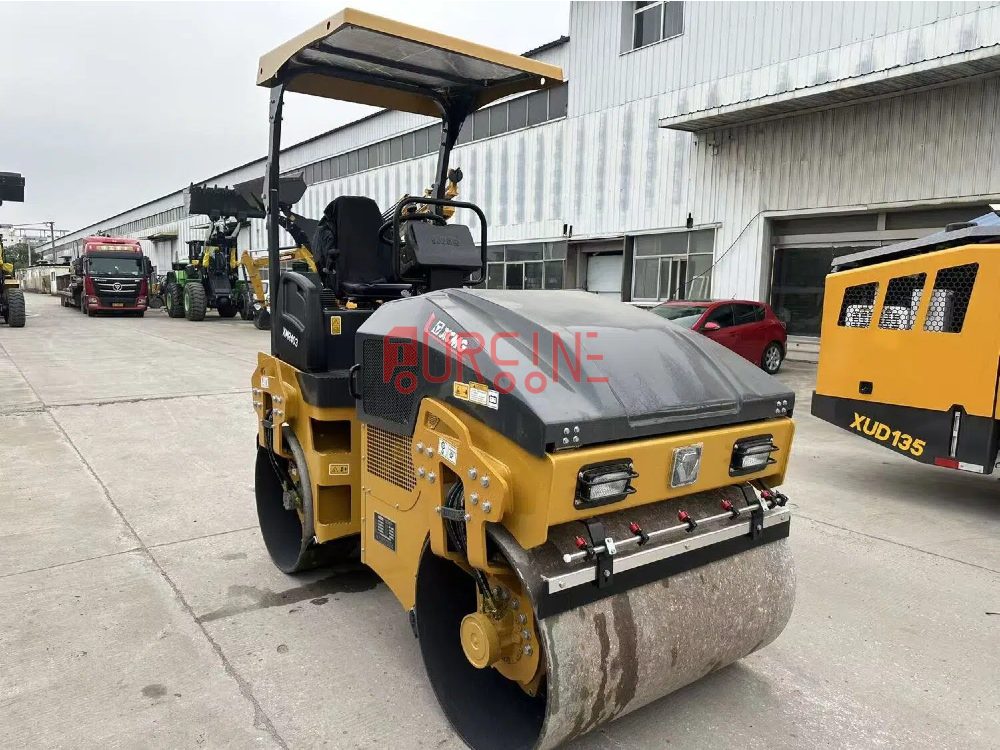

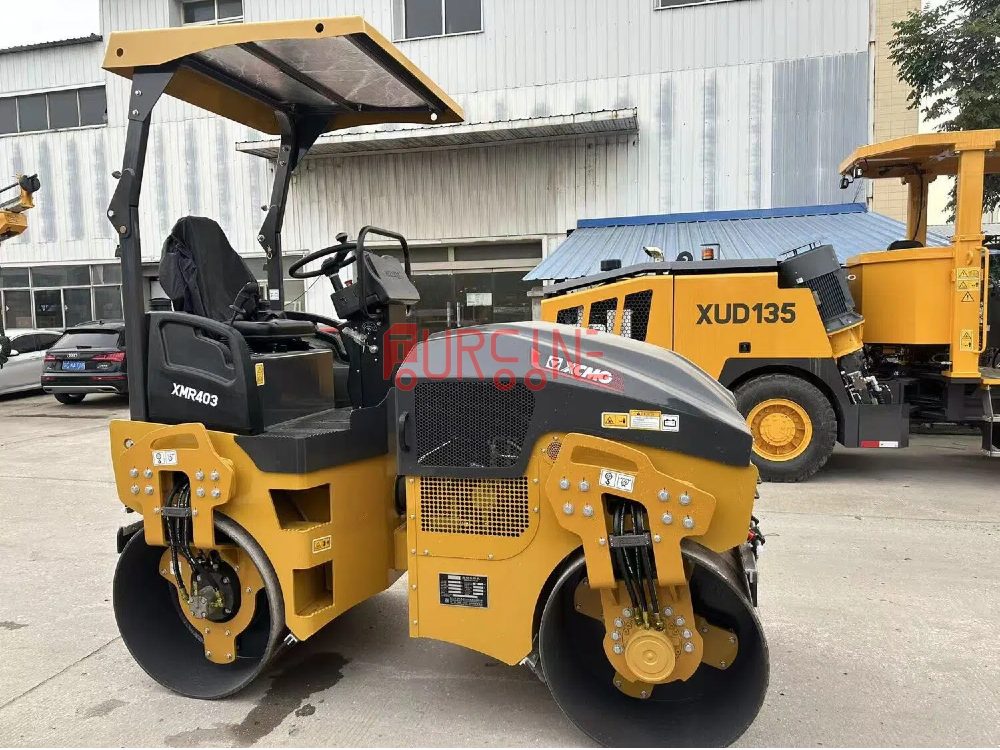

Item | Unit | XMR403 |
Operating mass | kg | 4000 |
Static linear load (front drum/rear drum) | N/cm | 157/157 |
Vibrational frequency | Hz | 60 |
Amplitude | mm | 0.41 |
Exciting force | kN | 42 |
Vibrating drum (Diameter x width) | mm | 800×1300 |
Theoretical gradeability | % | 30 |
Operating speed | km/h | 0~10.6 |
Wheel base | mm | 1920 |
Steering angle | ° | ±30 |
Swing angle | ° | ±10 |
Minimum turning radius | mm | 3062 / 4362 |
Minimum ground clearance | mm | 348 |
Engine type | ZN490B | |
Rated power | kW | 36 |
Rated speed | r/min | 2600 |
